5.5 FAN PLATE ADAPTER
This termination section includes a heavy gage flat plate
that is used to attach a termination mechanical draft fan or
exhaust fan. Available in all vent sizes.
5.6 FAN ADAPTER TERMINATION
The Fan Adapter Termination is a section of a EPSC that
provides a surface for mounting and installing an up-blast
discharge fan. Depending on the weight of a fan, the Fan
Adapter Termination may eliminate the need for a separate
welded fan curb termination assembly. It is specifically
designed to accommodate hinged type exhaust fans.
Note: At present (2015), Underwriters Laboratories (UL) has no Safety
Standards for these devices, so although they are shown in this
document and condoned by ENERVEX and others, UL has not
independently investigated this product.

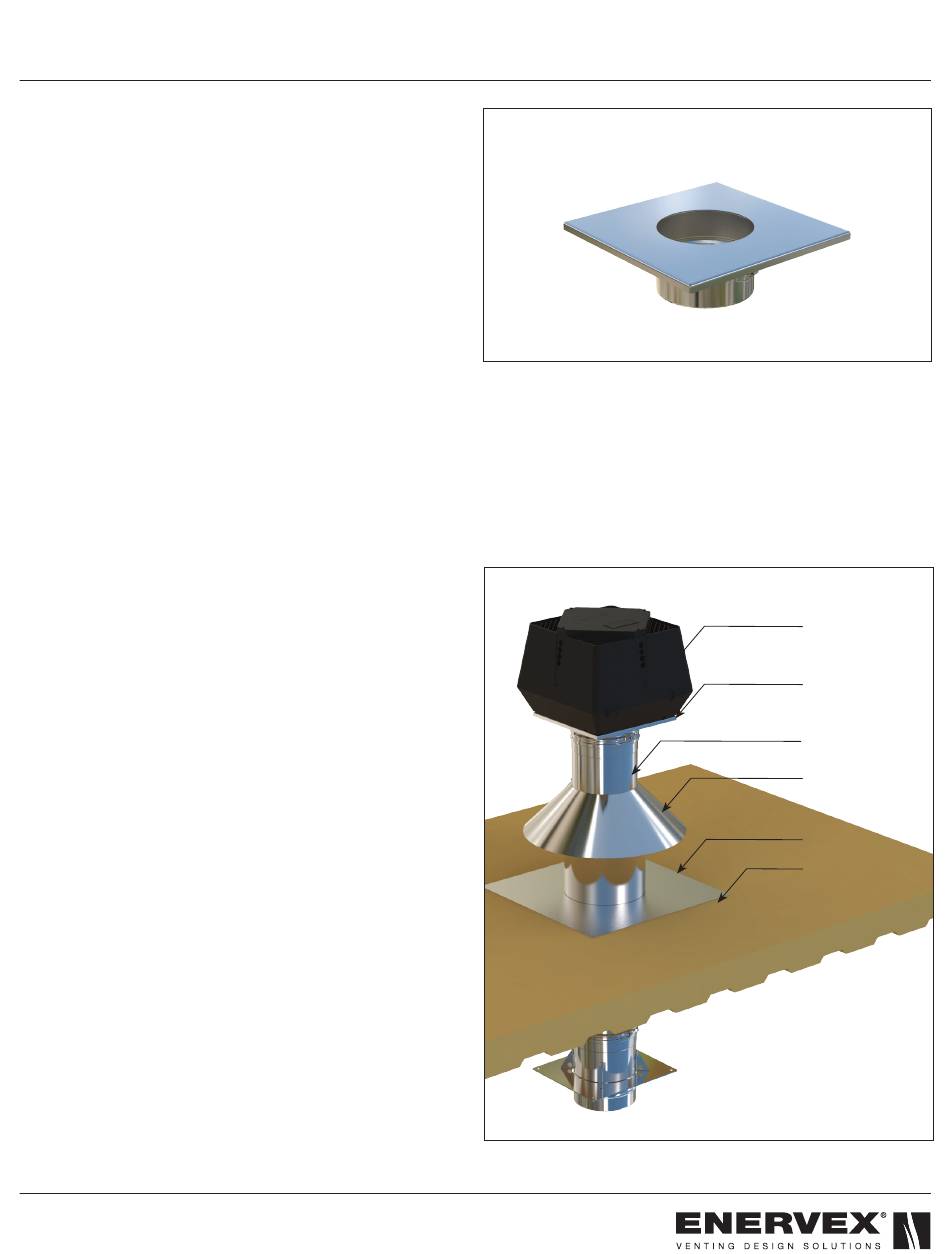

Fig 5-4: Fan Plate Adapter
Fig 5-5: Fan Adapter Termination
17
010.8030.1222 12.22
Fan
Fan Adapter
Chimney Section
Storm Collar
Flashing
Roof
