3. STRAIGHT LENGTHS

3.1 PIPE LENGTHS

The PowerStack EPSC is available in various standard
nominal lengths:
• 6" - Installed length = 4" (98mm)
• 10" - Installed length = 9" (224mm)
• 20" - Installed length =18" (474mm)
• 30" - Installed length =28.5" (724mm)
• 40" - Installed length = 38" (974mm)
• 50" - Installed length =47" (1195mm)
• Adjustable Length
• Adapter Stub
All standards lengths are available with 2 test ports with 1"
NPT stainless steel nipple.

3.2 NOZZLE SECTION

The Nozzle Section (See Fig. 3-2) can be positioned so that
the nozzle fitting is either on the sides or top of the section.
The test ports can be used for installation of pressure
sensors.

3.3 DRAIN SECTION

For use with open vent terminations for draining of rain or
condensate from inside the vent. Should be located inside
the building to protect against freezing. When required, it
can also be used as a horizontal drain section installed in the
horizontal section of the vent. Includes a Locking Band. The
Drain Section incorporates a 1" NPT stainless steel nipple
with protective plastic cap.

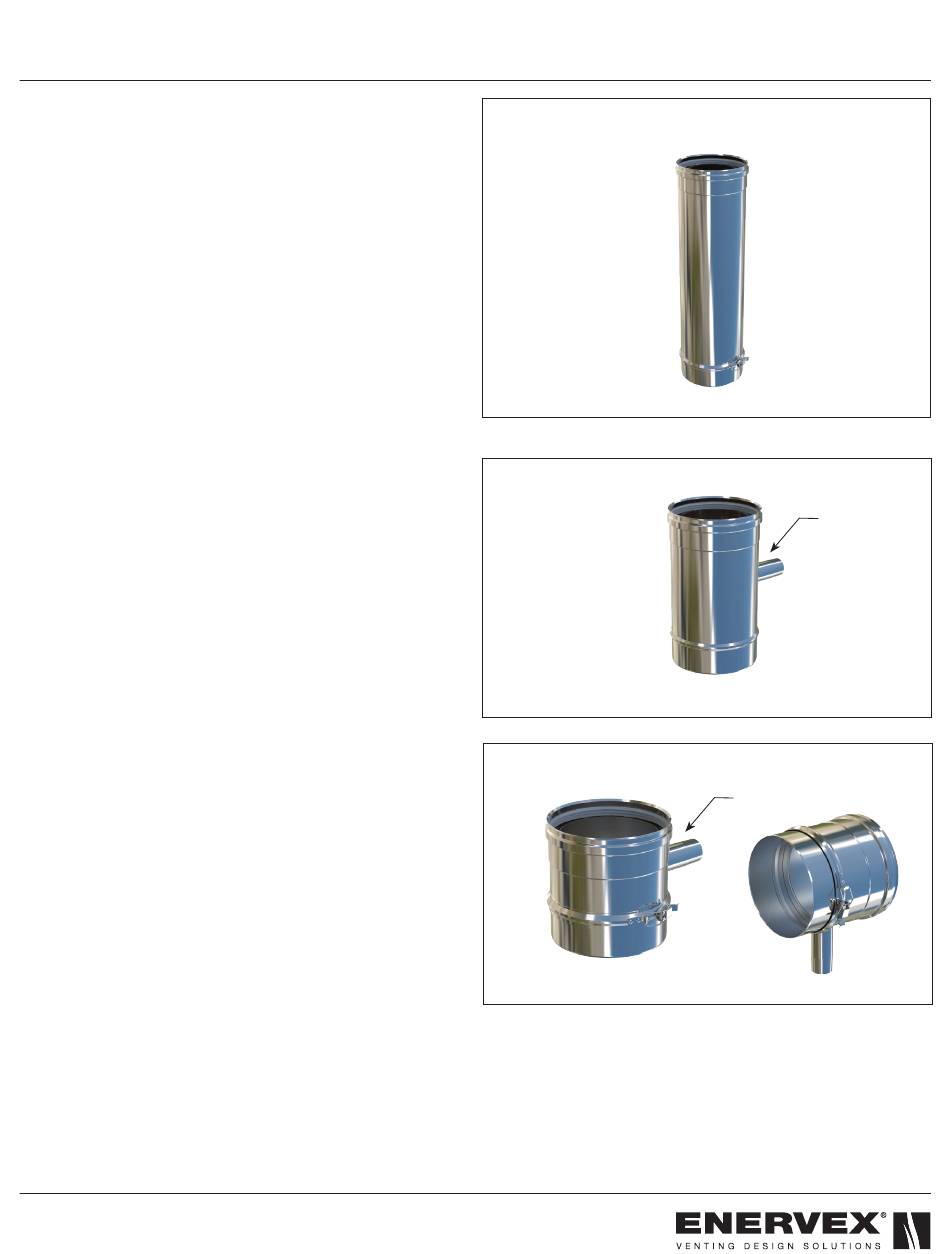

Fig 3-1: Straight Length
Fig 3-2: Nozzle Section
Fig 3-3: Drain Section
11
010.8030.1222 12.22
1" Nozzle
1" Drain
