6.3 WALL SUPPORT
The Wall Support consists of the same plate support as the
support plate assembly, but includes wall support bracing.
All hardware included with the assembly must be used when
connecting the plates to the provided support brackets.
The Wall Side Support must always be positioned so that it is
on the load bearing side of the trapped support flange. The
assembly must be tightly bolted using all the nuts and bolts
provided.
6.4 FLOOR GUIDE
The Floor Guide is used as a guide at a floor penetration.
It is attached to the floor by means of (4) angle brackets.
It maintains a minimum distance between the vent and
combustible floor material.
6.5 WALL GUIDE
This component uses a Full Ring supplied with bracket, nuts
and bolts for assembly. It does not include hardware for
attachment to the structure. The latter must be provided by
the installer and should be of sufficient and suitable strength
to ensure adequate attachment.
The Wall Guide is designed to provide 2 inch (50mm)
clearance from the outer wall of the venting system to non-
combustible structures. The assembly is intended to resist
lateral or side loads only, and must not be used to carry the
weight of a vertical vent system.
This assembly shall not be used for attachment to
combustible structures. If the vent must be attached to
a combustible wall, spacers should be used to maintain
minimum clearance required and also minimize heat
conduction through supporting metal parts. The Ring inside
diameter is 0.2" (5mm) larger than the outside diameter of the
vent to allow for sliding movement during thermal expansion.

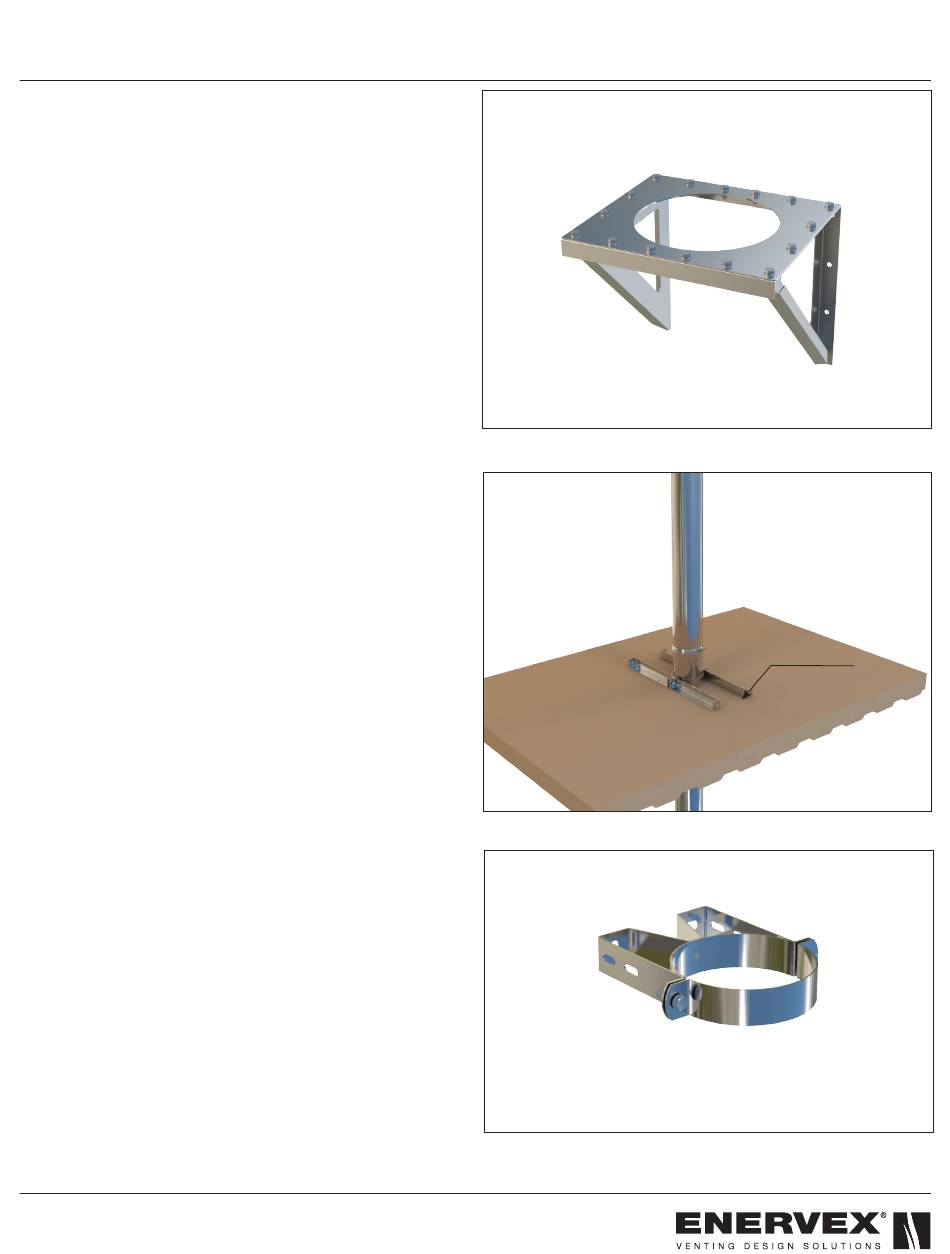

Fig 6-3: Wall Support
Fig 6-4: Floor Guide
Fig 6-5: Wall Guide
19
010.8030.1222 12.22
