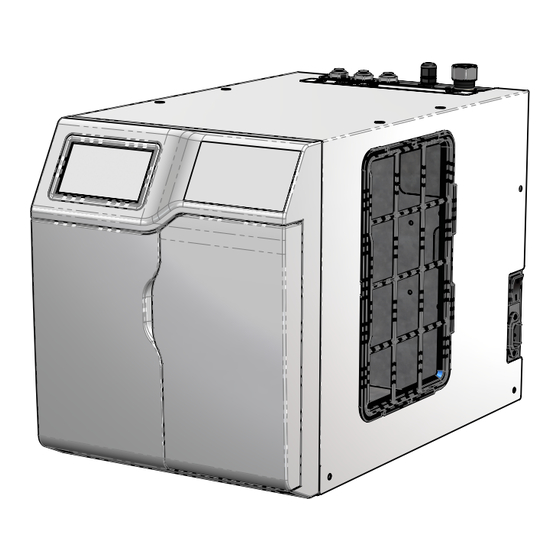

- Page 1 Zip HydroTap ® Installation and Operating Instructions CS Commercial Scan QR Code to download the latest version of this document. English French 804050US v1.27 06.21 CS175 Install Instruction Page 1 of 28...
- Page 2 Faucet Options The HydroTap appliance series offers a range of interchangeable faucets to suit the customer’s needs. For ease of installation, it is recommended to fit the faucet before installing the Command Center. The installation procedure for each of the faucets is detailed in the faucet installation instruction book, supplied with the faucet.
-
Page 3: Table Of Contents
Index HydroTap Specifications Installation Checklist ........................4 Important Safety Instructions ....................... 5 Warnings and Regulatory Information ..................6 Major Components and Accessories ................... 7 Technical Specification ........................ 8 Before Installation and Site Requirements ................... 9 STEP 1 - Measure and cut all the faucet holes before fitting the faucets (Refer to the Faucet installation instruction book) STEP 2 - Check for adequate ventilation Section 2 - Ventilation... -
Page 4: Installation Checklist
Installation Checklist Before Installation: Read the instructions and check if there is adequate space to mount all of the components. Note: Not all fittings are supplied with the appliance kit. Isolation valves and special tools are not supplied (see Technical Specification for details). Check the mains water pressure is between 250 - 700 kPa (37 - 100 psi). -
Page 5: Important Safety Instructions
Ensure the faucet body is located so the faucet outlet safely dispenses into the sink bowl area. Lifting Take care when lifting the Zip HydroTap Command Center. Some units may exceed safe lifting limits. If you feel this is beyond your personal capabilities, please seek assistance with the lift. The weights of the units are marked on the packaging. -
Page 6: Warnings And Regulatory Information
6. Command Centers must never be located near, or cleaned with water jets. 7. Zip HydroTaps are not to be exposed to the elements of nature 8. Due to the process of continuous improvement, Zip reserves the right to change details mentioned in this manual, without notice. -
Page 7: Major Components And Accessories
Major Components and Accessories Parts supplied Description Accessories Description Font (Drip Tray) 1x HydroTap Kit for Arc & Cube Faucet with hoses models (Classic faucet 93580US (Chrome) shown) Font (Drip Tray) Kit for Classic Models HydroTap 93303US (Chrome) Command Center with air and water filters Replacement Filter... -
Page 8: Technical Specification
Technical Specifications Commercial Models*: CS 175 - Classic XX CS 175 - ARC XX CS 175 - CUBE XX CS 175 - Wave XX CS 175: Chilled and Sparkling Chilled glasses per hour (1 glass = 6.7oz) Command Center dimensions, W x D x H, 340 x 477 x 333 mm (in) (13¼”... -
Page 9: Before Installation And Site Requirements
Before Installation Before installing ensure that the following have been provided at the installation site: • Review all the technical specifications. • Ensure the underbench can support the product weight when full of water, (allow an extra 5 kg (11 lb) when full. ) •... -
Page 10: Section 2 - Ventilation
Section 2 Ventilation When installing air flow ducts, the following tools will be required: • Jigsaw and a 12mm (½”) Drill • Keyhole or Wall Board saw. 2.1 Ventilation for All Models Proper air circulation must be provided for all models. The system will operate correctly only if the recommended air gaps are achieved during installation. -
Page 11: 2.3 Alternative Ventilation
Ventilation Cut-out details A - Kickboard cut-out Drill 4 pilot holes 12mm (½”) (11¼") dia in corners Finish cut-out using a Jigsaw and Keyhole or Wall board B - Cabinet floor cut-out (12⅜") Drill two pilot holes 12mm (½”) dia. (1213/16") Finish cut-out using a Jigsaw (1¾”) -
Page 12: Section 3 - Co Cylinder And Regulator 3.1 - Connect, Secure And Test The Co2 Gas Cylinder
Section 3 Cylinder STORAGE WARNING: cylinders must be installed in an open plan area or in an enclosed room, with a volume no less than 50 cubic metres (65 cubic yards) for each 2.6kg (6lb) of stored gas. If more than 1 gas cylinder containing CO present within the same location, the recommended ventilated area should be in proportion to the number of gas cylinders stored in that location. -
Page 13: Co Regulator And Leak Test
Regulator This gauge shows the pressure in the bottle and This gauge shows the adjustable limit (3.0±0.1 bar, indicates when the bottle is empty. Initial bottle or 39±1 psi) required for the HydroTap to function pressure will be 35-40 bar (507-580 psi) . correctly Green zone Relief... -
Page 14: Section 4 - Command Center Installation
Section 4 Command Center Installation Hose and tube fitting • Remove all caps from the top of the 90° Bend end Command Center (except the mixer caps) of Braided Hose • Only remove the mixer caps if a mixer Braided hose for faucet is to be fitted. -
Page 15: Model Cs175 Chilled Sparkling
Installation Instructions Chilled Sparkling Model - CS 175 Note: Note: The hoses need to have a constant downward gradient to the HydroTap to allow all water to drain back into the tanks. CHILLED SPARKLING MAINS OUTLET OUTLET Note: Mains hose length is 750mm (30”) Plug and Cord length is 1800mm (70”) -
Page 16: Section 5 - Commissioning
Section 5 Commissioning The HydroTap is now ready to be commissioned. • Turn ON the water and gas and check for any leaks. • Turn the power ON at the power outlet • Familiarise yourself with the operation of the Faucet, in preparation for use (See User Guide) •... -
Page 17: Conditioning Procedure
NOTE: For any subsequent filter changes or any operational procedures, please refer to the HydroTap user guide, located inside the filter housing access door. Conditioning Procedure Zip HydroTap Command Centers are sanitized during manufacturing and require final flushing before normal use. 1. Turn off CO gas at the regulator. -
Page 18: Backflow Prevention
Commissioning Backflow Prevention All HydroTap models that have sparkling/carbonated water functionality include the following integral Backflow Prevention. Main Water Inlet The Dual Check Valve (DCV) on the Mains Water inlet connection is designed to ensure a uniform direction of flow throughout the HydroTap. -
Page 19: Troubleshooting
Flow Sensor Fault Internal fault Call Zip Service Contact your local service provider or Zip’s US distributor Culligan International Company on US Toll Free 1-833-233-2358 for assistance, service, spare parts or enquiries. 804050US v1.27 06.21 CS175 Install Instruction Page 19 of 28... -
Page 20: End Of Life Disposal
End of Life Disposal In order to help preserve our environment we ask that you dispose of this product correctly. This product should not be treated as domestic waste, but should be taken to a dedicated recycling center for electrical and electronic equipment. -
Page 21: Performance Data Sheets
Replacement Cartridge: 1.5Z-LS (Culligan P/N 01034277) Operating TDS: 50 ppm – 150 ppm Cartridges manufactured for Zip by Pentair Everpure, EPA Est. No. 002623-IL-002. Replacement cartridges can be purchased from your local Culligan dealer, Zip dealer or Substance Reduction other Zip approved distributors. - Page 22 Replacement Cartridge: 1.5Z-LS (Culligan P/N 01034277) Operating TDS: 50 ppm – 150 ppm Cartridges manufactured for Zip by Pentair Everpure, EPA Est. No. 002623-IL-002. Replacement cartridges can be purchased from your local Culligan dealer, Zip dealer or Substance Reduction other Zip approved distributors.
- Page 23 Replacement Cartridge: 1.5Z-LS (Culligan P/N 01034277) Operating TDS: 50 ppm – 150 ppm Cartridges manufactured for Zip by Pentair Everpure, EPA Est. No. 002623-IL-002. Replacement cartridges can be purchased from your local Culligan dealer, Zip dealer or Substance Reduction other Zip approved distributors.
- Page 24 Replacement Cartridge: 1.5Z-LS (Culligan P/N 01034277) Operating TDS: 50 ppm – 150 ppm Cartridges manufactured for Zip by Pentair Everpure, EPA Est. No. 002623-IL-002. Replacement cartridges can be purchased from your local Culligan dealer, Zip dealer or other Zip approved distributors. Substance Reduction While testing was performed under standard laboratory conditions, actual performance may vary.
-
Page 25: Warranty
Zip Customer can opt to extend the Zip Product warranty by one (1) year, making the total Limited Warranty period two (2) years. In order to extend the warranty to two (2) years, the Zip Customer must register their product with Zip. - Page 26 Dispute Resolution If the Zip Customer is not satisfied with the warranty service, he or she must submit a claim in writing to Zip’s Dispute Settlement Representative at Culligan International Company, d/b/a Zip Water, 9399 W Higgins Rd, Rosemont, IL 60018.
- Page 27 Notes 804050US v1.27 06.21 CS175 Install Instruction Page 27 of 28...
-
Page 28: Contact Details
Call US Toll Free 1-833-233-2358 for assistance, service, spare parts or enquiries. As Zip policy is one of continuous product improvement, changes to specifications may be made without prior notice. Images in this booklet have been modified and may not be true representations of the finished goods.
