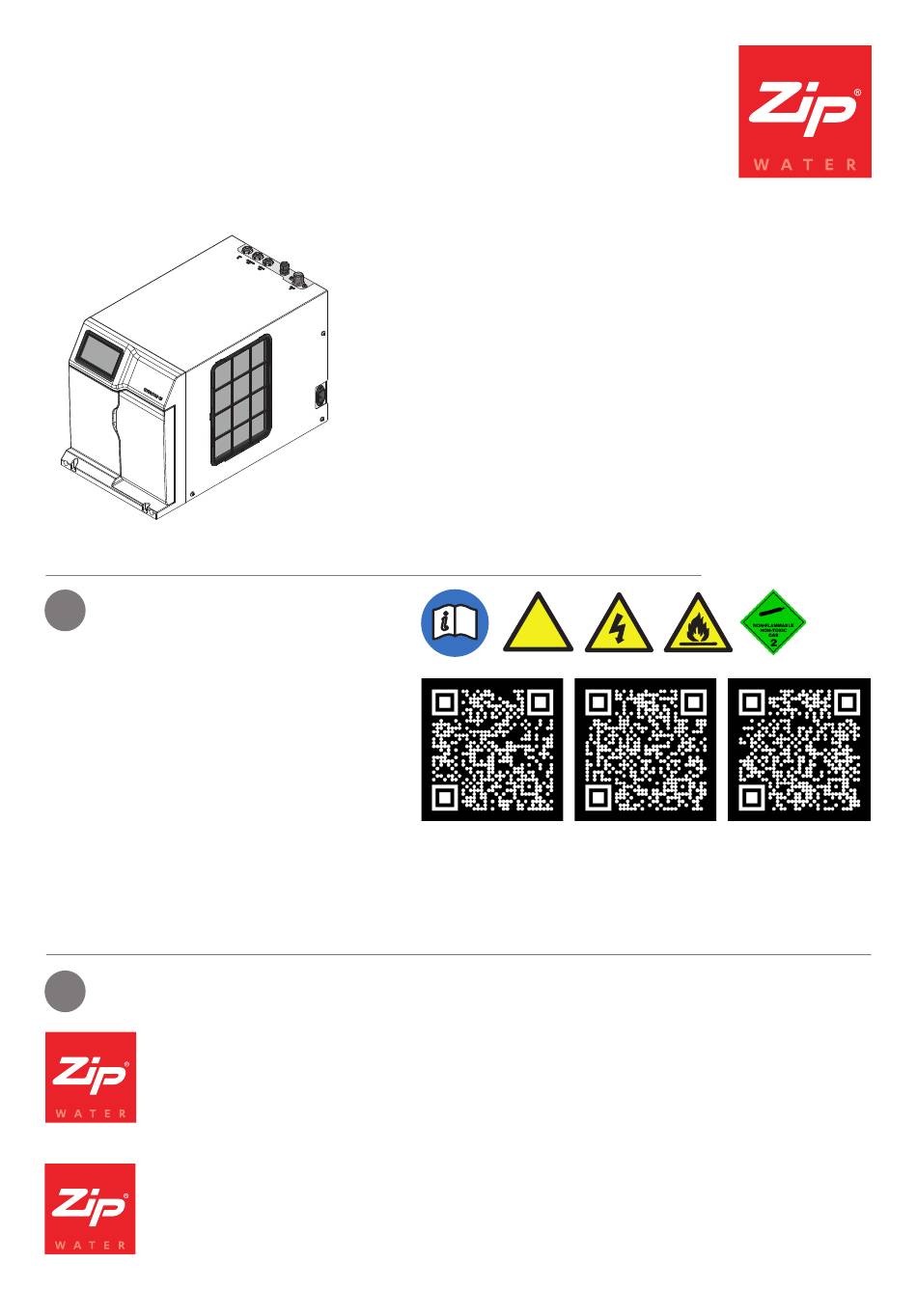

Zip HydroTap G5
Command Centre - CS HOME, CS100
Follow these steps for a safe and effective install.
1
Read the safety information
overleaf.
This QRIG may be sufficient
for installers who have
had previous HydroTap
installation experience.
Inexperienced installers
please scan the QR codes
for detailed installation
instructions.
2
Contact us if you need support and advice.
Zip Water Australia
67 - 77 Allingham Street, Condell Park NSW 2200
Postal: Locked Bag 80, Bankstown 1885
Australia, Tel (+612) 9796 3100, Free call 1800 947 827 (1800 ZIP TAP)
Zip Water UK
Trafalgar House, Rash's Green, Dereham,
Norfolk, NR19 1JG
United Kingdom, Tel 0345 6 005 005
Quick Reference Installation Guide
810010 v1.00 08.24 G5 CS Quick Reference Installation Guide
!
!
V
U
Installation
Full installation
videos
instructions
CS Home
!
!
Full installation
instructions
CS100
1
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Zip HydroTap G5 CS HOME
Summary of Contents for Zip HydroTap G5 CS HOME
- Page 1 Zip Water Australia 67 - 77 Allingham Street, Condell Park NSW 2200 Postal: Locked Bag 80, Bankstown 1885 Australia, Tel (+612) 9796 3100, Free call 1800 947 827 (1800 ZIP TAP) Zip Water UK Trafalgar House, Rash’s Green, Dereham, Norfolk, NR19 1JG...
- Page 2 Children should be supervised to ensure that they do not play with the appliance. • The Zip HydroTap Command Centre range uses HIGHLY FLAMMABLE R290 refrigerant under pressure.
- Page 3 • The power cord and general power outlet must be in a safe and accessible position after installation. When positioning the appliance, ensure the power supply cord is not trapped or damaged. If the power supply cord is damaged it must be replaced by a Zip service provider or a qualified electrician.
- Page 4 Installation -Technical data, part supplied Review the technical data & parts supplied in the kit. Power rating, kW Dimensions Water supply Weight Model 220-240V, 50Hz W x D x H (mm) Connection (kg) CS100 0.37 280 x 499 x 333 G 1/2 36.5 CS Home...
- Page 5 Ventilation installation instructions Make sure there’s enough ventilation in the cupboard, air needs to circulate as follows: Cold air is drawn in through the gaps provided by the door buffers (supplied), they must be fitted. Command Centre clearances must be observed. Warm air is expelled through the integrated vent in the base of the Command Centre, via the vent cut-out in the cupboard floor.
- Page 6 Ventilation installation instructions CS Home ventilation options Option 1: Ventilation arrangement using small cupboard with min. 40mm overhang Directing warm air straight into the room. Must be installed C l e a r a Inlet Must be installed Option 2: Ventilation arrangement using small cupboard with less than 40mm, or no overhang.
- Page 7 Ventilation installation instructions CS100 ventilation options Option 3: Ventilation arrangement using large cupboard with min. 40mm overhang Directing warm air straight into the room. Must be installed C l e a r a Inlet Must be installed Extra Inlet vent option Option 4: Ventilation arrangement using small cupboard with min.
- Page 8 Ventilation installation instructions Option 5: Ventilation arrangement if using a large cupboard with less than 40mm, or no overhang. Directing warm air into the kick space & out through a vent grille. Must be installed C l e Inlet a r a Both must be installed...
- Page 9 Installation - Ancillary components, Carbonation valve When fitting the carbonation valve, observe the following guidelines : Celsius Classic, Wave Other Avoid AiO Arc Classic Plus, sparkling Elite 10 12 Adjust the carbonation valve during commissioning, see sections Use an Allen key or screwdriver to adjust the carbonation flow.
- Page 10 CS Home Installation Scan the QR code & read Install the HydroTap in order the instructions Install the vent mounting plate on the cupboard floor, scan the QR Code & read the instructions. Ventilation Installation Install Rail Instructions UK only For UK, fit the install Fit the tap connections: rail (scan the QR Code...
- Page 11 CS Home Commissioning Commission the HydroTap in order Commissioning process, follow screen prompts, scan HydroTap Clean QR for more information. HydroTap Clean If cupboard temperatures exceed 35 C additional ventilation will be required. Turn on water To use the HydroTap, scan supply &...
- Page 12 CS100 Installation Scan the QR code & read Install the HydroTap in order the instructions Install the vent mounting plate on the cupboard floor, scan the QR Code & read the instructions. Ventilation Installation Install Rail Instructions UK only For UK, fit the install rail (scan the QR Code for Fit the tap connections: instructions).
- Page 13 CS100 Commissioning Commission the HydroTap in order Commissioning process, follow screen prompts, scan HydroTap Clean QR for more information. If cupboard temperatures exceed 35 C additional ventilation will be required. HydroTap Clean To use the HydroTap, scan the User Guide QR code & read the instructions.
- Page 14 Notes Quick Reference Installation Guide 810010 v1.00 08.24 G5 CS Quick Reference Installation Guide...
- Page 15 Notes Quick Reference Installation Guide 810010 v1.00 08.24 G5 CS Quick Reference Installation Guide...
- Page 16 Refer to User Guide for operation and maintenance. As Zip policy is one of continuous product improvement, changes to specifications may be made without prior notice. Images in this booklet have been modified and may not be true representations of the finished goods.
