User Manual
EMS265
MEGAPULSE SENIOR
Model 92
1639

Advertisement

Table of Contents
loading

Related Manuals for EMS MEGAPULSE SENIOR 265

Summary of Contents for EMS MEGAPULSE SENIOR 265

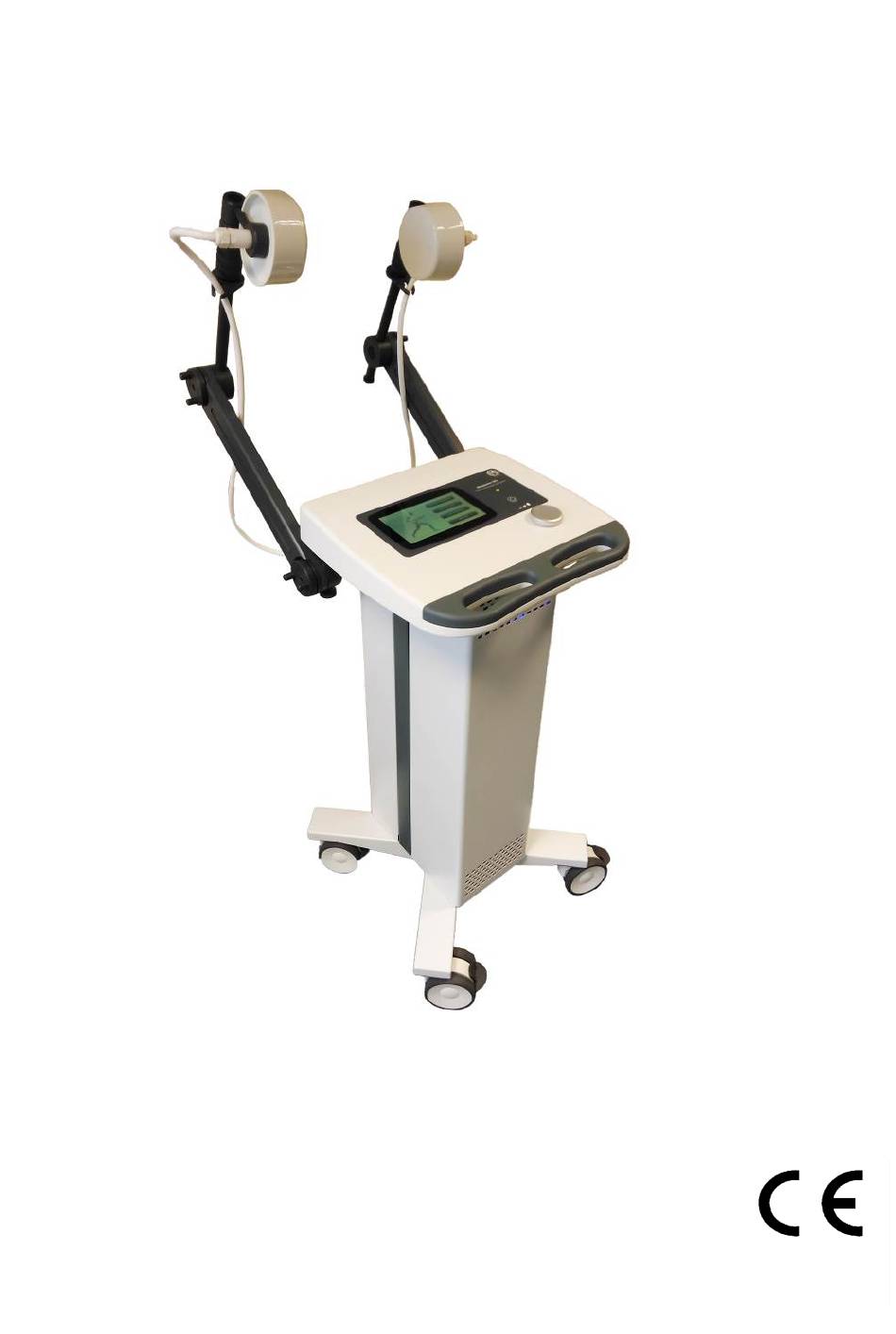

  • Page 1 User Manual EMS265 MEGAPULSE SENIOR Model 92 1639...
  • Page 2 OM265EN issue 16...

  • Page 3: Table Of Contents

    Contents Page Contents General Information Record of Amendments Warranty Introduction Indications for use Precautions Contraindications Accessories Controls and Markings Installation and environmental Essential performance Operating Instructions Maintenance Troubleshooting Appendix A: Technical Spec. Appendix B: EMC Table OM265EN issue 16...

  • Page 4: General Information

    The information contained in this manual is subject to change without notice. No part of this manual may be photocopied, reproduced or translated into another language without the prior written consent of EMS Physio Ltd. Record of Amendments ISSUE...

  • Page 5: Warranty

    Consumable items, for example, electrodes, electrode covers and batteries, are excluded from the above warranty. It is intended that the Megapulse Senior 265 is only used by qualified healthcare professionals such as physiotherapists who have received training in electrotherapy.

  • Page 6: Introduction

    Introduction The Megapulse 265 is a continuous and pulsed shortwave therapy unit. Shortwave therapy can be applied to a wide range of conditions with successful outcomes. These include acute and subacute traumatic and inflammatory conditions, chronic rheumatoid and arthritic conditions, resolution of haematomas and for pain relief. Shortwave refers to electromagnetic radiation in the frequency range 2 to 100 MHz.
  • Page 7 Shortwave therapy equipment normally uses the band centred on 27.12 MHz. This corresponds to a wavelength, in a vacuum, of approximately 11 metres. Shortwave therapy is normally applied at a level which produces detectable heating and the benefits are those associated with the heating effect - encouragement of healing, pain relief, reduction of muscle spasm, increase in mobility etc.

  • Page 8: Indications For Use

    However, the patient is unlikely to sense any warming effect with sub-thermal settings below about 20W average power. The Megapulse Senior 265 in pulsed mode and with a Monopulse applicator provides a peak power of up to 200W and average powers from a few mW to 64W.

  • Page 9: Precautions

    The connecting cables associated with electrodes should be positioned in such a way that contact with the patient or conductive or energy absorbing objects is avoided. The Megapulse Senior 265 has cable retaining clips on both electrode arms. The electrode cables should be positioned so that they do not contact the body work or top panel of the equipment during use.
  • Page 10 Make sure that the leads are properly connected and that they are kept away from each other to avoid over-heating. Never let them cross over. Position the arms as shown in the picture on the left. Never treat in reverse. Keep the leads as far apart as possible from each other and the machine and its casing during treatment...
  • Page 11 Do not allow the leads to contact the body work or top panel of the equipment during use The electrode cables and plugs may get hot when used at high output levels for prolonged periods. Allow to cool after treatment before disconnecting.
  • Page 12 Regularly (at least monthly) inspect all treatment leads, cables and connectors for signs of damage. Modification of the Megapulse Senior 265 is not permitted and may result in a hazardous situation. OM265EN issue 16...

  • Page 13: Contraindications

    Contraindications Tumours, due to the risk of increased growth or metastatic activity. Pregnancy, do not treat the lower abdomen, back or pelvis. Menstruation, do not treat lower back or abdomen due to risk of increased bleeding or pain. Cardiac conditions, do not treat the chest area or near the cervical ganglion.

  • Page 14: Accessories

    European mains lead 6-119 North America mains lead For other countries contact EMS Physio Ltd. or the agent from whom the unit was purchased. WARNING: Use of accessories such as electrodes or mains cables other than those specified or provided by the manufacturer of this...

  • Page 15: Controls And Markings

    Controls and Markings LCD touch ON/OFF Stand-by/On Button screen Megapulse Senior 265 control panel IEC symbol 5007 IEC symbol 848-01-26 variability in Control knob steps Fig. 3 Megapulse Senior 265 control panel OM265EN issue 16...
  • Page 16 BNC connector for Monopulse applicator (optional) Output sockets for electrodes Rear panel label Fuse label On/Off switch Mains inlet Fig. 3 Megapulse Senior 265 rear view OM265EN issue 16...
  • Page 17 Serial number Name and Model and date of address of number and manufacture manufacturer classification ISO 7000 - Do not dispose CE mark IEC symbol IEC symbol 1641 consult of as unsorted showing 878-03-04 878-02-03 instructions waste conformity non-ionising type BF for use (2006/96/EC radiation...
  • Page 18 Treatment light Label Fig. 6 Monopulse Applicator Serial number and date of manufacture IEC symbol IEC symbol 878-03-01 878-03-04 dangerous non-ionising voltage radiation Fig. 7 Monopulse Label OM265EN issue 16...

  • Page 19: Installation And Environmental

    (to facilitate disconnection). At the end its life, the Megapulse Senior 265 should not be disposed of as unsorted general waste. Advice on appropriate disposal is available from EMS Physio Ltd.

  • Page 20: Essential Performance

    Essential Performance BS EN 60601-1 defines Essential Performance as: “Performance necessary to achieve freedom from unacceptable risk” Functions of the EMS265, the absence or degradation of which could result in a hazardous situation are: Timer: The treatment shall be limited to a maximum of 30 minutes. Maximum output power: Shall not exceed 1200W pulsed Shall not exceed 480W continuous The device is therapeutic.

  • Page 21: Operating Instructions

    Pressing the ON button will cause the indicator to change to green and the display to illuminate and show the EMS company logo and name, the model name and number, the firmware version and the serial number.
  • Page 22 The <Home icon> in the top left corner of most screens is used to exit from the current screen and return to the Home screen. Home screen This is the first navigational screen appearing at power-up, and has the following four options, which may be selected by touching. Fig.
  • Page 23 ‘Protocol treatments’ brings up a list of clinical conditions, which can be stepped through using the up and down arrow buttons. Touching the anatomical figures will limit the displayed list to those relevant to the selected body area. Fig. 10 Protocol treatments screen Touching the highlighted condition will take you to a page with the parameters necessary to treat that condition already set.
  • Page 24 ‘Manual set-up’ Fig. 11 Manual set-up screen This screen allows the user to adjust every available parameter before initiating a treatment. The treatment time can be set by touching the digits of the large time display, or by touching the clock icon which will take you to another screen where time may be entered numerically.
  • Page 25 All other electrodes may be used in continuous or pulsed mode. By selecting the electrode type with this option, the Megapulse Senior 265 limits the output power to a level that can safely be delivered with the electrode type chosen.
  • Page 26 ‘User programs’ will select another screen displaying a list of programs. If nothing has been stored in any of them then the word ‘Empty’ will appear under the highlighted program. Pressing ‘Save’ will store whatever settings were last chosen via the ‘Manual set-up’ or ‘Protocol treatments’...
  • Page 27 A ‘Notes’ screen allows you to write and save information pertaining to each user program. The first line written here will appear as a title under the highlighted program number in the list page. Fig. 13 QWERTY keypad for Notes entry OM265EN issue 16...
  • Page 28 ‘Settings’ brings up a page with options to navigate to sub-pages that allow adjustment of global system parameters and access to system information and help files. Fig. 14 Settings screen Changes made here will be remembered after powering down. ‘Display’ allows adjustment of the screen brightness. Fig.
  • Page 29 ‘Sound’ allows adjustment of sound settings such as the volume. Fig. 16 Sound options screen ‘Language’ lets you choose any of the installed languages. Fig. 17 Language options screen OM265EN issue 16...
  • Page 30 ‘Clock’ lets you set the time and date. Fig. 18 Clock set screen ‘Help’ opens an on-screen user manual. Fig. 19 Help screen OM265EN issue 16...
  • Page 31 ‘Clinic’ opens a QWERTY keypad which allows you to write in a name which will appear at the top of the screen. ‘Maintenance’ is intended for use by service engineers and gives access to diagnostic information. It requires a pass code to access. Fig.
  • Page 32 ‘About’ displays information about the unit such as its serial number, firmware versions and last date of calibration. Fig. 22 About screen OM265EN issue 16...
  • Page 33 Treatment using the Monopulse applicator Attach the Monopulse applicator to one of the electrode arms and lock it into place by tightening the sleeve at the end of the arm Connect one end of the BNC cable supplied to the socket on the rear of the applicator and the other end to the BNC socket on the rear of the unit.
  • Page 34 The output level is shown as a percentage of the maximum power available with the current set-up. In the example shown above, the output level is set to 75% of 200W peak and 7.8 average, giving an output of 150W peak and 5.85W average. When the treatment time reaches zero, the pulsed shortwave energy from the Monopulse applicator is terminated, the light at the rear of the applicator will turn off, the output display will show 0% and a...
  • Page 35 Attach the 5 cm or 10 cm capacitive electrodes to the arms and secure in place by tightening the retaining sleeve. Connect the electrode plugs to the output sockets on the Megapulse Senior 265 rear panel. Ensure that the electrode cables are kept apart from each other using the cable retaining clips on the electrode arms.
  • Page 36 Treatment using flexible rubber capacitive electrodes Connect the rubber electrode plugs to the output sockets on the Megapulse Senior 265 rear panel. Place the flexible electrodes in position using the felt spacers provided between the skin and the electrode. The electrode spacing is controlled by the number of felt spacers used.

  • Page 37: Maintenance

    Technical Specification section of this manual. Always replace with the same type. If the mains fuses continue to blow then EMS Physio qualified Service personnel must be called in. There are no user serviceable parts inside the unit and it should not be opened.

  • Page 38: Troubleshooting

    Troubleshooting Symptom Action Unit shows “Tuning” and Check correct electrodes “Treatment” will not begin. have been selected. Check electrodes are securely connected. Check electrode cables are routed as described in relevant section. Ensure that metal framed beds, tables and chairs are not in the treatment area.

  • Page 39: Appendix A: Technical Spec

    Treatment Timer 0 to 30 minutes The Megapulse Senior 265 is designed to operate from any 50/60 Hz single phase supply between 100 and 240 Vac capable of supplying 1 kVA. Connection is via an IEC socket at the rear of the unit.
  • Page 40 In 1 in 3 mode the pulses are on for 1/3 second and off for 2/3 second during each second of treatment. The Megapulse Senior 265 has been designed to meet the requirements of BS EN 60601-1:2006+A12:2014 Medical Electrical Equipment, Part 1: General requirements for Safety", BS EN 60601- 1-2:2015 “Medical Electrical Equipment, Part 1-2: General...

  • Page 41: Appendix B: Emc Table

    Appendix B - EMC test levels. Class/Group/Immunity Test standard Description test level CISPR11:2009+A1:2010 Radiated emissions Class A Group 2 Conducted CISPR11:2009+A1:2010 Class A Group 2 emissions Immunity from IEC/EN 61000-4-2 electrostatic ±15kV air, ±8kV contact discharge Radiated RF IEC/EN 61000-4-3 3V/m immunity Radiated immunity...
  • Page 42 EMS Physio Ltd. Grove Technology Park Downsview Road Wantage Oxfordshire OX12 9FE T: ( 4 4 ) 1 2 3 5 7 7 2 2 7 2 F : ( 4 4 ) 1 2 3 5 7 6 3 5 1 8 E : s a l e s @ e m s p h y s i o .
