espresso coffee machines
MANUAL FOR USE
AND MAINTENANCE
LSC 022 - Rev. 00 - Ed. 11/2011

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the S2 and is the answer not in the manual?

Questions and answers

Summary of Contents for La Spaziale S2

  • Page 1 espresso coffee machines MANUAL FOR USE AND MAINTENANCE LSC 022 - Rev. 00 - Ed. 11/2011...
  • Page 2 espresso coffee machines WEEE Disposal of the equipment by the users within the European Community ( WEEE) in compliance with the article 13 of the legislative decree issued on 25 July 2005, nr151 ”Implementation of the directives 2002/95/CE,2002/96/CE e 2003/108/CE, concerning the decrease in the usage of dangerous substances in the electrical and electronic equipment and the disposal of waste”.
  • Page 3: Table Of Contents

    espresso coffee machines INDEX GENERAL DESCRIPTION OF THE MACHINE ......... 3 1.1 DEscrIpTIon of DElIvEry coffEE buTTon ....... 4 2. GENERAL ADVICE FOR THE INSTALLER ........5 2.1 GENERAL WARNINGS ..............5 2.2 INSTALLATION REQUIREMENTS FOR THE USER...... 7 2.3 WARNING/TECHNICAL DATA LABELS AND NAMEPLATES ..APPLIED TO THE MACHINE.
  • Page 4 espresso coffee machines LSC 022 - Rev. 00 - Ed. 11/2011...
  • Page 5: General Description Of The Machine

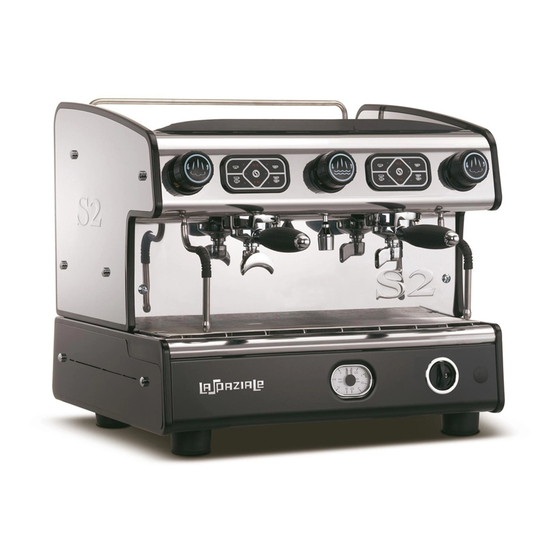

    espresso coffee machines 1 GENERAL DESCRIPTION OF THE MACHINE 13 12 Fig. 1 LEGEND 1. Top cup grid 7. Drip tray grid 13. Gauge 2. steam delivery knob 8. Water drip tray 14. piezoelectric lighter for gas (optional). 3. Touchpad 9.
  • Page 6: Description Of Delivery Coffee Button

    espresso coffee machines 1.1 DESCRIPTION OF DELIvERy COFFEE TOUCHPAD Touchpad model EP Touchpad model EK Fig. 2 Fig. 3 LEGEND LEGEND a. 1 short coffee preset delivery button f. Delivery button b. 1 long coffee preset delivery button g. lED c.
  • Page 7: General Advice For The Installer

    espresso coffee machines 2. GENERAL ADvICE FOR THE INSTALLER read carefully the instructions and warnings contained in this manual and in the “INSTRUCTION MANUAL FOR THE INSTALLER”, since they provide important indications concerning the installation of the appliance. Attention! The electric system, water supply system, drainage system and gas system (in case the appliance is pre-fitted for gas), MusT already be put in place by the customer in order to allow the proper installation of the machine.
  • Page 8 espresso coffee machines Danger! The electrical safety of the appliance is fully achieved only after it has been correctly connected to an earthing system as required by the laws in force. It is necessary to have the earthing connection checked by professionally qualified personnel. The manufacturer cannot be held liable for any damage caused by the lack or inefficiency of the system’s earthing connection.
  • Page 9: Installation Requirements For The User

    espresso coffee machines • The appliance has class I protection against electric shocks. • The noise emitted by the appliance during normal operation is less than 70 dB. • NOTE: Appliances fitted to operate with gas system. The appliance has been fitted by the manufacturer to operate with LPG under a maximum supply pressure of 30 mbar. Adaptation to operate with any other type of gas must be carried out by personnel authorised by the manufacturer. Attention! failure to comply with the above regulations could jeopardise the correct operation and safety of the appliance as well as its useful lifetime.
  • Page 10 espresso coffee machines • Between the water mains and the water inlet pipe of the appliance, there must be a tap to stop the water flow if necessary (2 - fig.4). • The water mains pressure must be within the range of 1 and 5 bar. • If this requirement is not met, please consult the manufacturer. • The appliance is supplied without a plug. It is supposed to be directly connected to the electric mains and therefore, it is necessary to fit a single-pole switch with contact opening of 3 mm or more beforehand, according to the regulations in force (1 - fig.4). • The drainpipe of the appliance must be directly connected to a suitable open drain siphon, previously installed by the customer (3 - pict.4).
  • Page 11: Warning/Technical Data Labels And Nameplates Applied To The Machine

    If a label is positioned on a component part that has to be replaced, ensure that the new component has the same label ap- plied or a new one. 255600 N.F. La Spaziale S.p.A. - MADE IN ITALY - ( UCIMAC ) via E. Duse, 8...
  • Page 12: Removing The Packaging

    espresso coffee machines 3. REMOvING THE PACKAGING After unpacking the machine, please check its integrity; in case of doubt, do not use it and consult themanufacturer. packaging materials must not be left within children’s reach since they are potentiallydangerous. Attention! The appliance weight is more than 30 kg and therefore, it cannot be moved by a single person alone.
  • Page 13: Optional Accessories

    espresso coffee machines 3.2 OPTIONAL ACCESSORIES (Supplied only at the request of the customer) LEGEND I. Water softener L. filter M. pressure reducer N. Detergent 4. COMMISSIONING THE MACHINE a) open the water supply valve as envisaged in the preparations for installation (See Fig. 4 on page 7 - Rif. 2). b) check for any water leaks from the hosing/connections.
  • Page 14: Switching On The Machine

    espresso coffee machines 5. SWITCHING ON THE MACHINE FILLING THE BOILER A. Turn the knob of the switch on the appliance (9) to 1; at this point the lEDs on the touchpads will switch on to indicate that power is feeding the machine. B.
  • Page 15: Coffee Preparation

    espresso coffee machines Take note! The running temperature is the temperature of the boiler during normal operation. 5.1 COFFEE PREPARATION A. remove a filter holder (5 or 16 a according to whether 1 or 2 cups of coffee are required) from the delivery group. B.
  • Page 16 espresso coffee machines POURING HOT WATER FOR PREPARING INFUSIONS A. place the pitcher underneath the hot water spout. B. Turn on the tap by turning the knob (4) in order to obtain the required amount of water. C. Turn off the tap to stop delivering water by setting the knob (4) to its initial position. Attention! Do not use the knob to deliver hot water before placing the pitcher below the hot water spout, to prevent possible burns.
  • Page 17 espresso coffee machines ELECTRIC CUP WARMER (Optional) The appliances can also be equipped with an electric cup warmer (as optional) for an additional cup heating. To switch on the cup warmer, press the button (10). press the same button to switch it off. Attention! It is allowed to place cups on the special cup grid (1) on the top of the appliance as long as the cups have their openings facing upwards (fig.
  • Page 18: Ek Model Alarms Operation

    espresso coffee machines 5.2 EK MODEL ALARMS OPERATION LED CORRESPONDING TO THE COFFEE DOSE BUTTON DISPENSING, FLASHING AFTER 5-6 SECONDS: This alarm is viewed when, during the delivery phase, there is a flow meter malfunction for the delivery group, or if the coffee has been too finely ground.
  • Page 19: Routine Appliance Maintenance To Be Performed By The User

    espresso coffee machines 6 ROUTINE APPLIANCE MAINTENANCE TO BE PERFORMED By THE USER Take note! To grant the efficiency of the appliance and to maintain correct operation, it is necessary to follow the manufacturer’s instruc- tions as to cleaning and regular maintenance. Attention! cleaning and routine maintenance operations must be carried out by the user according to the manufacturer’s instructions given here below.
  • Page 20 espresso coffee machines Every 3 days After turning off the machine, remove the shower heads using the wrench provided; brush them carefully, making sure that all the holes are clean. Then reassemble the parts following the sequence shown in the figure 7. A.
  • Page 21: Technical Data

    espresso coffee machines 7 TECHNICAL DATA Fig. 8 DIMENSIONS AND WEIGHT POWER SUPPLy RATING AND ABSORPTION 1 GR 2 GR 3 GR SPAZIO 1 GR 2 GR 3 GR SPAZIO volT 220/240 220/240 220/240/400 220/240 50/60 50/60 50/60 50/60 2200 3900 4500 3000...
  • Page 22 espresso coffee machines LSC 022 - Rev. 00 - Ed. 11/2011...
  • Page 24 La Spaziale S.p.A. Via E. Duse, 8 40033 Casalecchio di Reno Bologna - (Italy) ¥ +39 051 611.10.11  +39 051 611.10.40  info@laspaziale.com  www.laspaziale.com...
