Eaton MEMSHIELD3 Instruction Leaflet

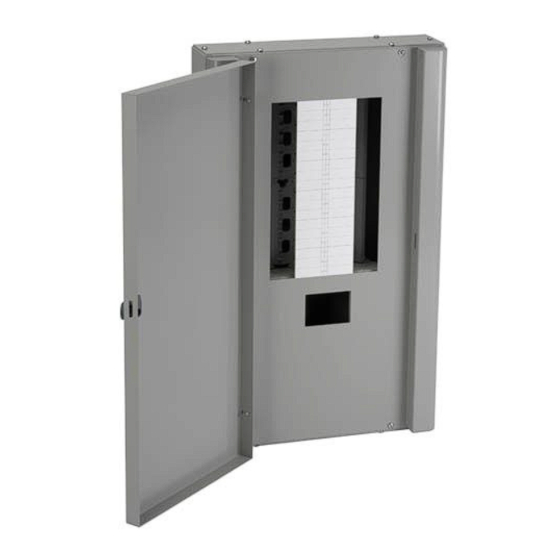

MEMSHIELD 3 SMARTMETER SPLIT LOAD DISTRIBUTION BOARD
Instruction leaflet LT1184 (03/21)
IMPORTANT NOTES
1. This product should be installed, commissioned and
maintained by or under the supervision of a competent
electrician in accordance w ith current electrical engineering
Codes of Practice, Regulations for the Electrical equipment
of Buildings (BS7671), CDM2007 - Construction (Design
and Management) Regulations 2007, HSG150 - Health and
Safety in Construction, Statutory requirements and any
Specific instruction issued by the Company.
2. After completing the installation and testing of this product it
is essential that this leaflet is draw n to the attention of the
person responsible for its future operation and maintenance,
and is at all times available for ready reference.
3. These notes assume throughout that the product is
disconnected from the supply. It is essential that this is done
before any w ork is carried out.
4. When carrying out insulation resistance testing, ensure the
meter voltage fuses are removed.
These Distribution Boards are designed only for
use w ith MCB's and RCBO's as listed in the current
Mem shield 3 catalogue.
Failure to com plyw illresult in invalid w arranty and
certification.
CAUTION
Do not fit SP & SN, or 4 pole MCB's in TP
type B board

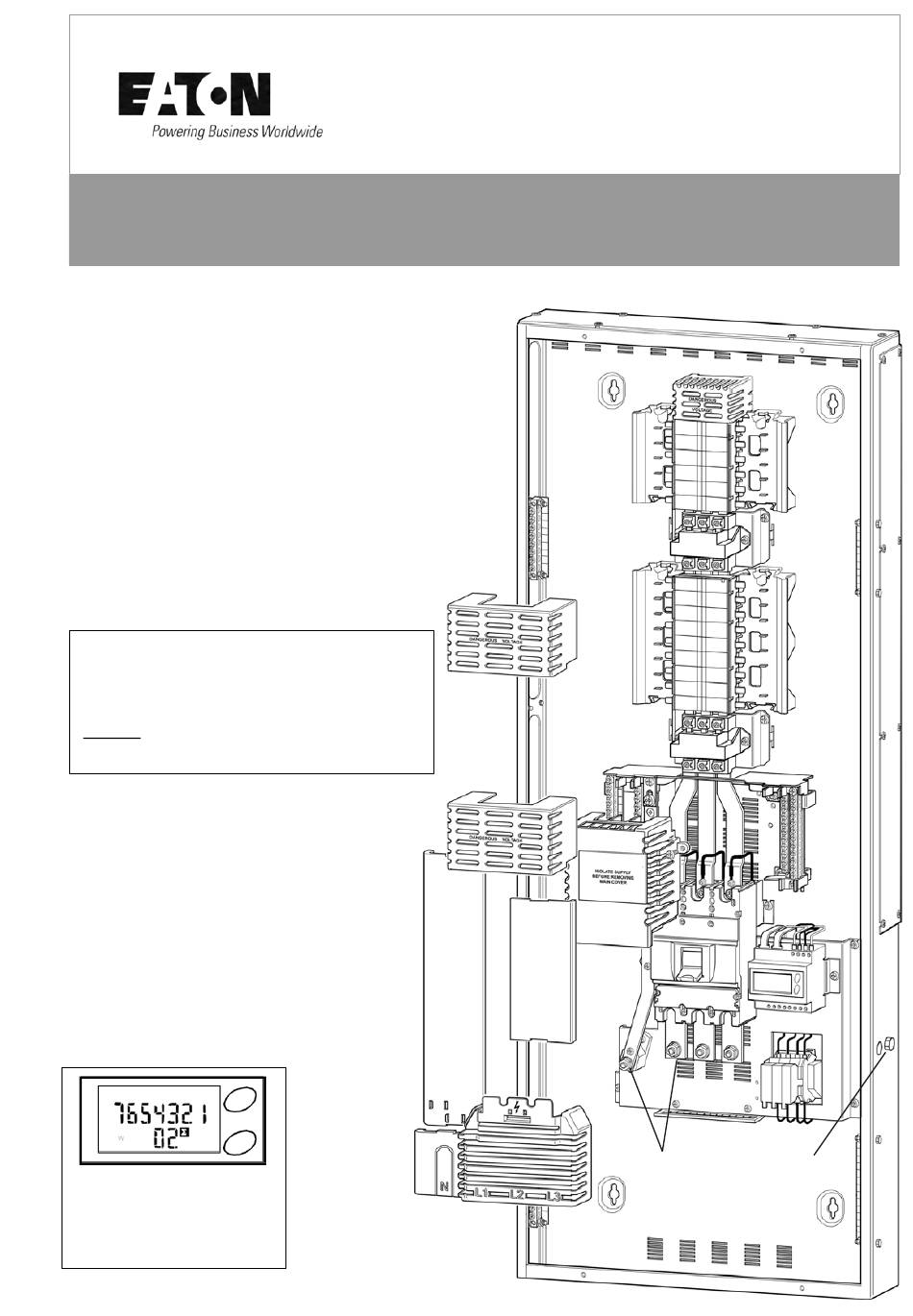

Drawn asEBMSL642MPMB
METER
kWh
W
Meter operating instructions can
be found on leaflet provided with
digital meter.
Please ensure that meter
instructions are available for
continued use of the product.
Ensure both neutral
shields are fitted
after installation
LOAD 2
LOAD 1
Tighten to Earth bolt
15Nm
Tighten to
15Nm
