  • Page 1 Eaton Remote Monitoring Device ® Installation and Operation Manual p/n: P-164000516 Revision 02...
  • Page 2 National Fire Protection Association, Inc. ERIFLEX and FLEXIBAR are registered trademark of Erico International Corporation. All other trademarks are property of their respective companies. ©Copyright 2018 Eaton, Raleigh, NC, USA. All rights reserved. No part of this document may be reproduced in any way without the express written approval of Eaton.
  • Page 3: Table Of Contents

    Display Screen Sections ..........................5 Powering the RMD............................6 Silencing the Audible Alarm ..........................6 System Events ............................6 For More Information ............................. 10 Getting Help ..............................10 Equipment Registration ..........................10 Eaton Remote Monitoring Device (RMD) Installation and Operation Manual P-164000516—Rev 02...
  • Page 4 Table of Contents Eaton Remote Monitoring Device (RMD) Installation and Operation Manual P-164000516—Rev 02...
  • Page 5: E E A A T T O O N N R R E E M M O O T T E E M M O O N N I I T T O O R R I I N N G G D D E E V V I I C C E

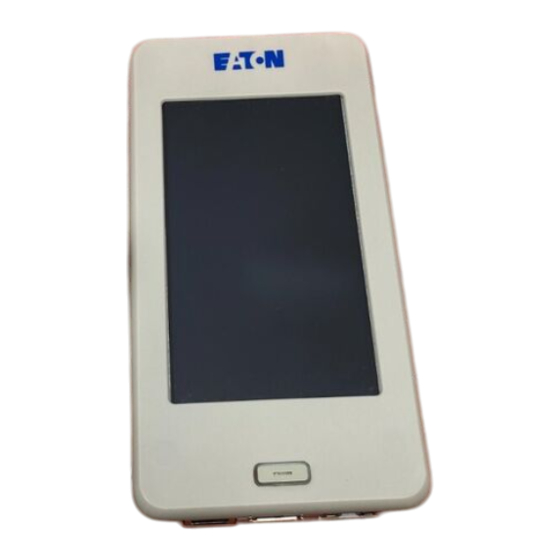

    I I n n t t r r o o d d u u c c t t i i o o n n The Eaton Remote Monitoring Device (RMD) is designed for use with various Eaton UPS systems. The RMD ®...
  • Page 6: Installation

    UPS to use the RMD. Install the PXG card into the UPS Minislot or the PXGX card into the UPS Xslot. Refer to the applicable Eaton UPS Installation and Operation manual (see For More Information section) for the slot type, location and wiring access information and the applicable Eaton Power Xpert Gateway User's Guide supplied with the card for installation and user instructions.
  • Page 7: Network Card Configuration

    Connect the Cat5 cable to the RJ45 Ethernet connector on the RMD (see Figure Connect the Cat5 cable to the RJ45 Ethernet connector on the PXG card. Refer to the applicable Eaton UPS Installation and Operation manual for the UPS card slot location and wiring access information (see For More Information section).
  • Page 8 Installation Connect the Cat5 cable to the RJ45 Ethernet connector on the PXG card. Refer to the applicable Eaton UPS Installation and Operation manual for the UPS Minislot location and wiring access information (see For More Information section). NOTE Ensure the Status indicator of the PXG card is illuminated (this may take approximately two minutes) before plugging in the RMD power source.
  • Page 9: Operation

    Alarm – Under normal operation this icon should remain green. If it changes to yellow or red, there may be an issue with the UPS. Check the UPS and its local display for details. Eaton Remote Monitoring Device (RMD) Installation and Operation Manual P-164000516—Rev 02...
  • Page 10: Powering The Rmd

    To turn the RMD on press and hold the power pushbutton on the front of the RMD (see ) for three seconds. The RMD should start with the Eaton logo being displayed. Then the power pushbutton on the front of the...
  • Page 11 Normal Screen – When the UPS is operating normally with full load protection, the information area will display System normal and all status indicators will be illuminated green as shown in Figure Figure 7. Normal Screen Eaton Remote Monitoring Device (RMD) Installation and Operation Manual P-164000516—Rev 02...
  • Page 12 On Bypass Screen – When the UPS is on bypass, the status indicators and information area will be displayed as shown in Figure 9. The critical load is supported by the bypass source. Figure 9. On Bypass Screen Eaton Remote Monitoring Device (RMD) Installation and Operation Manual P-164000516—Rev 02...
  • Page 13 All alarms are accompanied by an audible signal. To silence the audible signal, press the power button momentarily (see ). The Alarm status indicator may be illuminated along with other indicators. Figure 10. Fault Condition Screen Eaton Remote Monitoring Device (RMD) Installation and Operation Manual P-164000516—Rev 02...
  • Page 14: For More Information

    F F o o r r M M o o r r e e I I n n f f o o r r m m a a t t i i o o n n Refer to the applicable Eaton UPS Installation and Operation manual for the UPS card slot location and wiring access information.
  • Page 15: Equipment Registration

    Equipment Registration Eaton Remote Monitoring Device (RMD) Installation and Operation Manual P-164000516—Rev 02...
  • Page 16 P-16400051602 P-164000516 02...
