USER MANUAL
C100HD

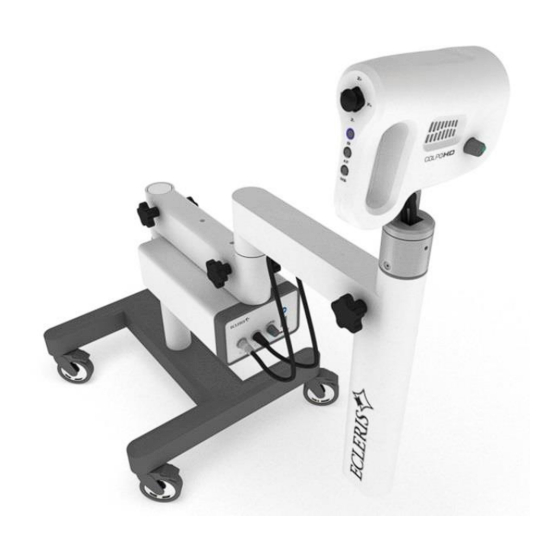

VIDEOCOLPOSCOPE HD
ABOUT THIS MANUAL
Year: 2019
Language: English
CMC Medical Devices & Drugs S.L.
C/ Horacio Lengo Nº18, CP29006,
Málaga, Spain
Ph. +34951214054
Email: info@cmcmedicaldevices.com
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Ecleris C100HD
Summary of Contents for Ecleris C100HD
- Page 1 All the rights to this manual are reserved, especially reproduction, publication and translation rights. No portion of this manual may be reproduced by no means (photocopy, microfilm or other methods) without previous written authorization from ECLERIS. Neither can it be reproduced, multiplied or published through any electronic data processing form.
-
Page 2: Table Of Contents
USER MANUAL– C100HD CONTENT SYMBOLS ..........................3 SAFETY INFORMATION ......................3 WARNINGS .......................... 3 DESCRIPTION......................... 5 INTENDED USE ........................5 INTENDED USER ........................ 5 COMPONENTS ........................5 INSTALLATION........................6 MOUNTING THE BASE ....................... 6 MOUNTING THE SET TO THE GANTRY ................7 MOUNTING THE CONSOLE .................... -
Page 3: Symbols
USER MANUAL– C100HD 1. SYMBOLS EU Authorized Warning Representative Read the related documentation. This side up Alternate current Fuse Applicable part type BF Video output Protective Earth (Ground) Freeze image Equipotential bonding Video camera Manufacturer Information (Name, White balance Address) - Page 4 Do not open the device. Maintenance and repairs should be made by ECLERIS or by a Company authorized by same. ECLERIS shall not be liable for the consequence of repairs of maintenance performed by unauthorized persons.
-
Page 5: Description
USER MANUAL– C100HD Results in personal injuries or harms to third parties, ECLERIS, the manufacturer and the seller of these devices shall not be liable for those damages. When this device is to be disposed, after its useful life, be aware of the environmental issues and follow the local regulations and laws concerning the waste and recycling of electronic components. -
Page 6: Installation
USER MANUAL– C100HD 4. INSTALLATION The installation of the HD Colposcope does not require skilled or specialized staff. In addition to the tools supplied, the following tools are required: one 13 mm wrench, one 27 mm wrench or an adjustable one. -
Page 7: Mounting The Set To The Gantry
USER MANUAL– C100HD 4.2 MOUNTING THE SET TO THE GANTRY 1) Loose the 3 screws from the column’s free side with a 3/16” hex key. 2) Install the forearm introducing the forearm’s coupling into the column’s receptacle. 3) Adjust the 3 screws firmly. -
Page 8: The Gantry's Adjustments
USER MANUAL– C100HD 4.4 THE GANTRY’S ADJUSTMENTS The device has several mechanical brakes to regulate the arm and the forearm’s different positons as well as regulating the head’s height, so as to ensure a stable focus and the operator’s comfort. -
Page 9: Controls
USER MANUAL– C100HD 5. CONTROLS 5.1 HEAD The green filter control on the head may be turned to activate or deactivate the optical green filter. The filter may be used with the light beam so as to have a special lighting on the tissues. This increases the contrast of the vascular beds and provides a better histological differentiation on the basis of the vascularization. -
Page 10: The Console's Back Panel
USER MANUAL– C100HD 5.3 THE CONSOLE’S BACK PANEL The back panel hosts the power supply connector with fuse holder, the equipotential ground terminal, which should be duly connected to the equipotential ground node of the medical facility, and two HD video outputs with HDMI connectors. Both HDMI outputs may deliver videos to two monitors simultaneously. -
Page 11: Operation
USER MANUAL– C100HD 6. OPERATION 6.1 STANDARD MENU Photo It freezes the image on the screen. It is possible to zoom the frozen image to visualize a particular area with more details. Pressing the photo button a second time, you may continue visualizing the image in real time with the last zoom value, no matter what was the zoom value used while the image was frozen. -
Page 12: Advanced Menu
USER MANUAL– C100HD NOTE: The screen shows the magnification value with two decimals, for instance: 20.00x.This means that the relation between the real size of the object and that observed on the screen is 20 times. If the magnification indication has a “D” at the end, this means that the image is digitally magnified. -
Page 13: Regular Maintenance
The revision should be performed by suitable staff in the institution where the device is located, by the local distributor’s staff or by Ecleris’s staff (contact the nearest Ecleris office). The annual revision procedure should include: ... -
Page 14: Change Of Fuse
6) Connect the power supply cord to the lighting source and to the mains electricity. 7) Turn the device on and check that the process is completed. If you cannot solve the inconvenience, contact your local distributor or the nearest ECLERIS office and request the technical assistance needed. - Page 15 USER MANUAL– C100HD Rich in Oxygen environment Not suitable to be used in presence of flammable anesthetic mixture with oxygen Operation Continuous Weight 57 kg +/- 1 kg (packaging included) Service conditions Temperature: -10 ºC a 40 ºC, Humedity: 10 %RH a 80 %RH (non-condensing), Pressure: 700 hPa - 1060 hPa.
-
Page 16: Troubleshooting
USER MANUAL– C100HD Video output HDMI x 2 9. TROUBLESHOOTING The following table lists the most frequent problems and their solutions. PROBLEM PROBABLE CAUSE ACTION It is not connected to the Connect the power supply cord to the mains electricity. -
Page 17: Technical Service
TECHNICAL SERVICE The HD VIDEO COLPOSCOPE should be repaired and the maintenance should be performed exclusively by skilled technical staff trained by ECLERIS and only those parts designated by ECLERIS as repairable should be repaired. ECLERIS shall supply, upon request, circuits, lists of components, description, calibration instructions and any other information to assist the technical staff authorized by ECLERIS. -
Page 18: Warranty
3. If the problem cannot be solved with remote assistance, you should send the product for repair. If you have to send the device to ECLERIS’s offices, you should use the original packaging so as to avoid damage during the transportation. ECLERIS shall not be liable for damages or defects that took place during the transportation due to the use of improper packaging.
