USER MANUAL

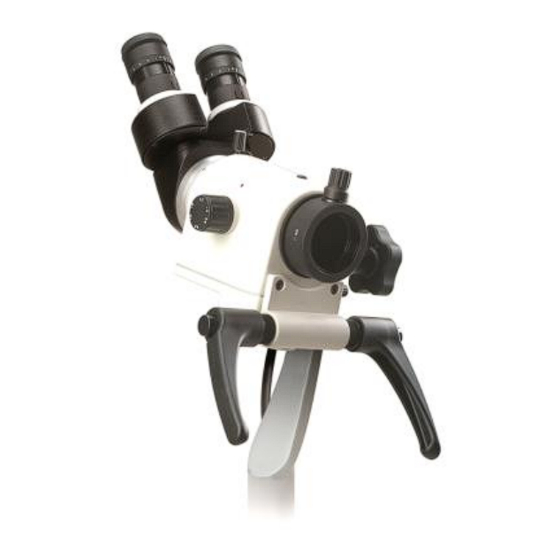

MICROSTAR SERIE C100
COLPOSCOPE
ABOUT THIS MANUAL
Year: 2019
Language: English
CMC Medical Devices & Drugs S.L.
C/ Horacio Lengo Nº18, CP29006, Málaga,
Spain
Ph. +34951214054
Email: info@cmcmedicaldevices.com
