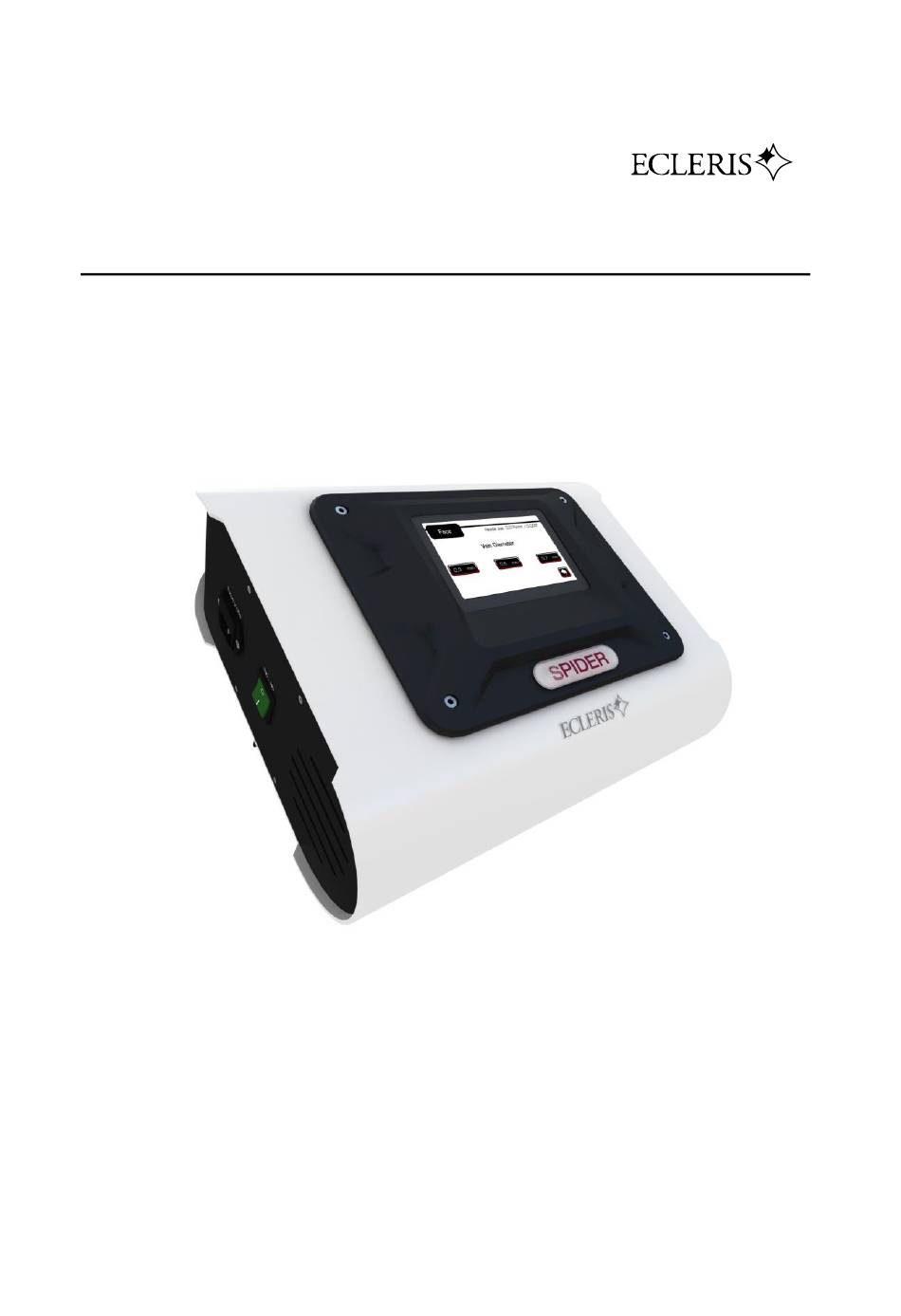

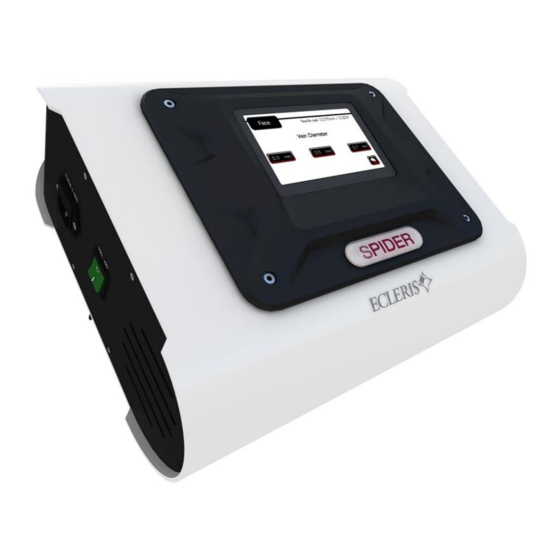

- Page 1 SPIDER VASCULAR TERMOCOAGULATOR INMANUUIN148 USER MANUAL CE100 ING.ARG V.16.04.2018...
- Page 2 ECLERIS S.R.L. Francisco N. Laprida 4955 (B1603ABK) Villa Martelli Buenos Aires República Argentina Tel/Fax: +54 (11)4838-3200 Web: www.ecleris.com E-Mail: info@ecleris.com Directora Técnica: Farm. Doris Inés Rasi Sanchez, MN: 12.856 Autorizado por la ANMAT PM-1120-36 Condición de venta: “Venta exclusiva a profesionales e instituciones sanitarias”.
-
Page 3: Table Of Contents
INDICE INTRODUCTION ........................................2 WARNING AND ADVICE ....................................... 3 INDICATED USE ........................................4 DESCRIPTION ........................................4 TECHNICAL SPECIFICATIONS ....................................5 GRAPHIC SYMBOLS ......................................6 COMPONENTS ........................................7 8. INSTALLATION ..........................................7 8.1. Unpacking ....................................7 8.2. Placement ....................................7 REVISION AND OPERATION ....................................8 9.1. -
Page 4: Introduction
SPIDER may be used for the whole body, even on most sensitive areas such as the ankles, the knees, and the face; it can be applied on all types of skins; no bandages are required, no subsequent rest or recovery period, and no side effects arise after its application. -
Page 5: Warning And Advice
This symbol shall be used in the manual to indicate information that includes important warnings or precautions. Should you have any doubt regarding the contents of the manual herein, or the operation and safety of the device, please contact your local distributor or the nearest ECLERIS office. 2. WARNING AND ADVICE ... -
Page 6: Indicated Use
3. INDICATED USE SPIDER thermo-coagulator includes functions for treating vascular lesions. The system is primarily indicated for treating telangiectasias, as well as rosacea, cuperosis and ruby points, applying a very thin needle that is pressed almost perpendicular to and very superficially on the skin where the small vessel... -
Page 7: Technical Specifications
Connector for the needle holder pencil Pedal connector NEEDLE HOLDER PENCIL PEDAL 5. TECHNICAL SPECIFICATIONS Maximum power emitted Delivery of energy Pulse with programmable delay Applied part BF type Classification of the device Operation Mode Continuous Power supply voltage 100 - 240 V~ Nº... -
Page 8: Graphic Symbols
6. GRAPHIC SYMBOLS Manufacturers Read the related information (Name, documentation Address) Warning! Type of applied BF equipment Alternate current Do not discard with the household waste Protect from water Protective Earth (Ground) This side up Environmental transport conditions Fragile INMANUUIN148 USER MANUAL CE100 ING.ARG V.16.04.2018 6... -
Page 9: Components
7. COMPONENTS SPIDER vascular thermo-coagulator includes the following components. It is advisable to identify and check their existence before proceeding with the installation. Main unit Needle holder pencil Pedal Detachable Power Supply Cable User’s manual ... -
Page 10: Revision And Operation
9. REVISION AND OPERATION 9.1. Revision Once installation is over and before turning SPIDER on, please go through the following check list: Verify that the electrical network has its grounding in perfect conditions and that it makes perfect contact with the device. -
Page 11: System Configuration
Active Menu display Treatment area selection switches Customized program buttons System configuration button On the main menu, you can select the treatment’s programs according to the area requiring treatment (body or face) or customized program (P1, P2, P3, P4, P5) and/or you can setup the system. 9.3. -
Page 12: Body Treatments
Choosing any of these options will display a new screen with 3 parameters, the values of which have been preset according to the clinical experience performed with SPIDER. On the upper part of the screen, the feature Time counts down in seconds the time set from the treatment start and the number of pulses produced. -
Page 13: Face Treatment
Choosing any of these options will display a new screen containing the following 3 parameters: POWER, PULSE duration and DELAY, described above in the Body Treatment section, the values of which have been preset according to the clinical experience made with SPIDER. 9.6. Customized programs For the configuration of the Customized Programs (P1, P2, P3, P4 and P5), you must enter again into the system configuration pressing the SYSTEM CONFIGURATION button from the MAIN MENU. -
Page 14: Placing The Needle For Vascular Lesions Treatments
9.7. Placing the needle for vascular lesions treatments SPIDER can be used with 2 needle types; the smallest diameter 0.003” (0.075 mm) needle is used for very small blood vessels and the larger diameter one, 0,005” (0.125 mm) for medium and larger blood vessels. -
Page 15: Treatments
Operate with care during treatment until the operator knows perfectly well the biological interaction mechanisms between radiofrequency and the skin. SPIDER is a tool used for aesthetic treatment. The device must not be used for any purpose other than those described above, or can it be applied on objects or animals. -
Page 16: Mode Of Application
It is advisable to resort to some type of magnification with an adequate lighting in order to view the veins correctly. After checking the parameters, the device is ready to emit Radiofrequency. If the operator is still not experienced in the use of the device, it is advisable to start using the factory preset program. 10.4. -
Page 17: Complications
In these cases, it is advisable to treat such veins first (with the technology chosen by the professional) and then proceed to treat the small spider veins. Also, partial results may be observed, with small stretches remaining or still some existing vein paths. For these cases, a new session must be conducted, always with a 60 day window after the first application. -
Page 18: Benefits For Professionals
No bandages, subsequent inactivity or recovery time are needed. Highly tolerable treatment, painless after the treatment No side effects Applicable all year round For all types of skin No hyper or hypo-pigmentation hazard No scars ... -
Page 19: Maintenance
11. MAINTENANCE In order to keep an optimum operation of ECLERIS SPIDER it is advisable to perform the following procedures: • Periodic cleaning of all exterior components. • Connections check. • Annual technical inspection of the device. To perform any revision or maintenance work, contact your local distributor or the nearest ECLERIS office. -
Page 20: Troubleshooting
11.1.4. Fuse change To avoid time losses due to downtime of SPIDER, it is advisable to have a spare fuse. 1 Disconnect the power supply cable from the electrical network and the device. 2 Under the power supply cable connector there is a small rectangular plastic holder where the fuses are located. -
Page 21: General Warnings
12. GENERAL WARNINGS Is very important to read carefully this manual before using the SPIDER. ECLERIS will not assume any liability for damages that may occur if the device is used without following the instructions and/or ignoring the following advice: ... - Page 22 Do not dispose of the device, or any of the accessories with the domestic waste. Research the local rules and laws for proper disposal. It is the user responsibility to deliver the system to the proper location for disposal or recycle of electrical and electronic device or contact the manufacturer or authorized representative to proceed on the elimination of the system on a safe and ecological way INMANUUIN148 USER MANUAL CE100 ING.ARG V.16.04.2018 20...
-
Page 23: Technical Service
Description of the problem. Shipping shall be made in its original package to avoid any damage to the device during transportation. ECLERIS shall not be liable for damages or defects that may occur during transportation caused by a deficient packaging... -
Page 24: Warranty
The warranty period is for one (1) year as from the date of purchasing invoice. ECLERIS shall not be liable for any damage caused to/by SPIDER due to negligence, incorrect use, cleaning or storage. Any repairs made by people not authorized by ECLERIS shall void this warranty. The above mentioned warranty is exclusively valid for the original buyer. -
Page 25: Derechos
All rights arising from this manual, especially its reproduction, publishing and translation, are reserved. No part of this manual shall be reproduced by any means (photocopy, microfilm or other methods) without the previous written authorization by ECLERIS; likewise, no part shall be reproduced, multiplied or published through electronic data processing.
