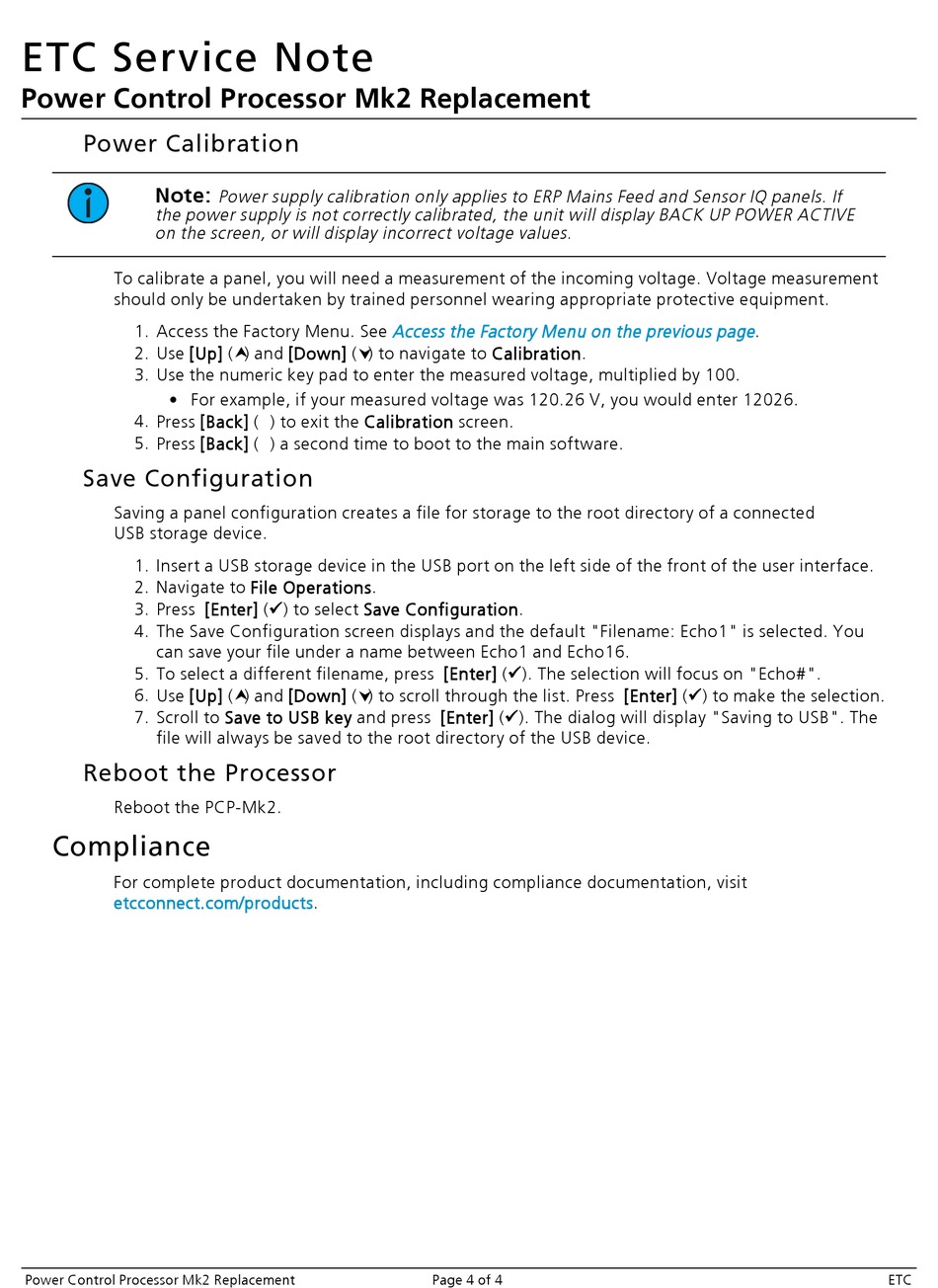

ETC Power Control Processor Mk2 Service Note page 4

ETC Service Note
Power Control Processor Mk2 Replacement
Power Calibration
Note:
the power supply is not correctly calibrated, the unit will display BACK UP POWER ACTIVE
on the screen, or will display incorrect voltage values.
To calibrate a panel, you will need a measurement of the incoming voltage. Voltage measurement
should only be undertaken by trained personnel wearing appropriate protective equipment.
1. Access the Factory Menu. See
2. Use [Up] (‡ ) and [Down] (ˆ ) to navigate to Calibration.
3. Use the numeric key pad to enter the measured voltage, multiplied by 100.
• For example, if your measured voltage was 120.26 V, you would enter 12026.
4. Press [Back] ( ) to exit the Calibration screen.
5. Press [Back] ( ) a second time to boot to the main software.
Save Configuration
Saving a panel configuration creates a file for storage to the root directory of a connected
USB storage device.
1. Insert a USB storage device in the USB port on the left side of the front of the user interface.
2. Navigate to File Operations.
3. Press [Enter] (ü) to select Save Configuration.
4. The Save Configuration screen displays and the default "Filename: Echo1" is selected. You
can save your file under a name between Echo1 and Echo16.
5. To select a different filename, press [Enter] (ü). The selection will focus on "Echo#".
6. Use [Up] (‡ ) and [Down] (ˆ ) to scroll through the list. Press [Enter] (ü) to make the selection.
7. Scroll to Save to USB key and press [Enter] (ü). The dialog will display "Saving to USB". The
file will always be saved to the root directory of the USB device.
Reboot the Processor
Reboot the PCP-Mk2.
Compliance
For complete product documentation, including compliance documentation, visit
etcconnect.com/products.
Power Control Processor Mk2 Replacement
Power supply calibration only applies to ERP Mains Feed and Sensor IQ panels. If
Access the Factory Menu on the previous page
Page 4 of 4
.
