ETC Reference Guide
F-Drive R12 and W1 Wiring

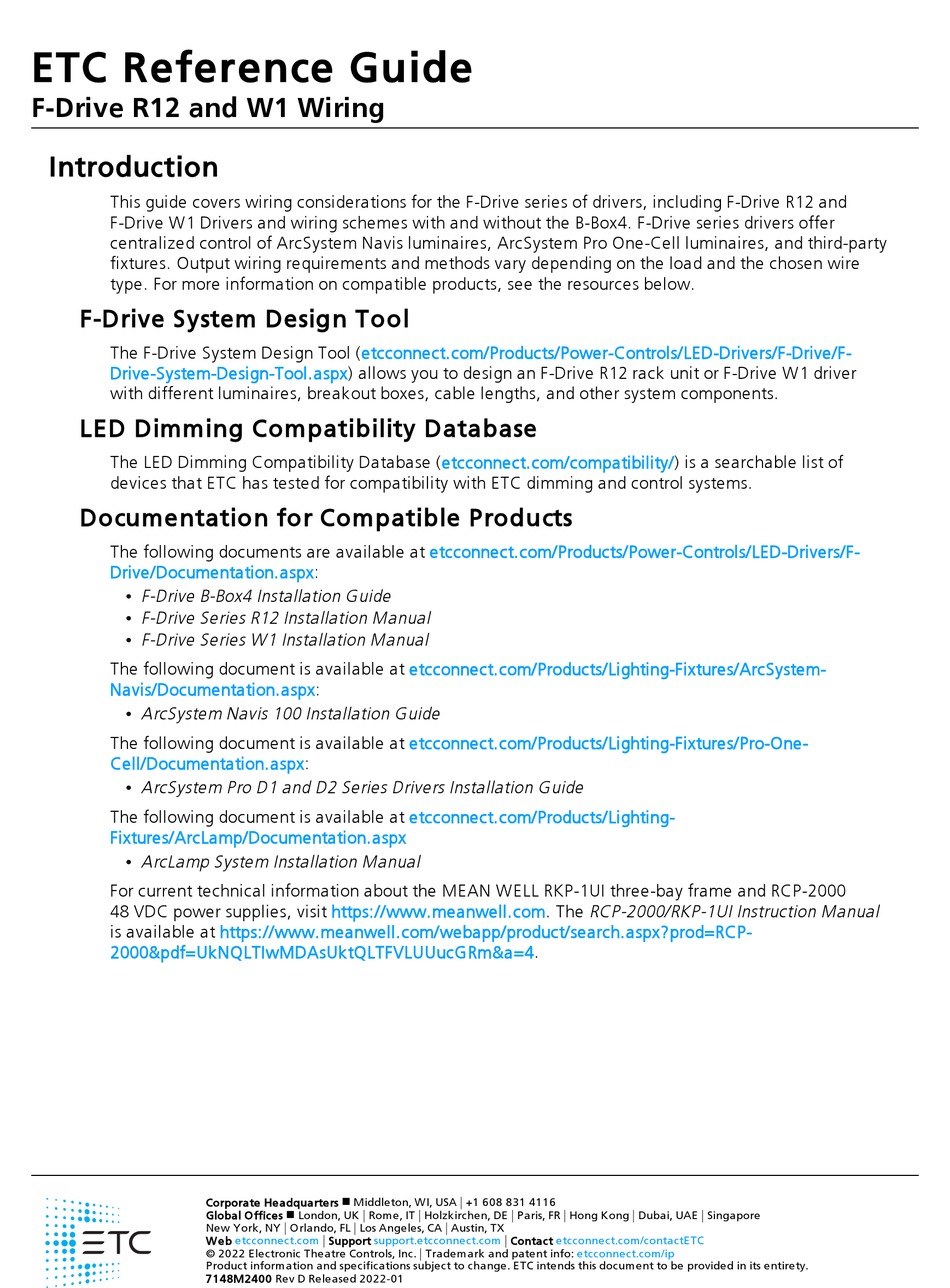

Introduction
This guide covers wiring considerations for the F-Drive series of drivers, including F-Drive R12 and
F-Drive W1 Drivers and wiring schemes with and without the B-Box4. F-Drive series drivers offer
centralized control of ArcSystem Navis luminaires, ArcSystem Pro One-Cell luminaires, and third-party
fixtures. Output wiring requirements and methods vary depending on the load and the chosen wire
type. For more information on compatible products, see the resources below.
F-Drive System Design Tool
The F-Drive System Design Tool
Drive-System-Design-Tool.aspx) allows you to design an F-Drive R12 rack unit or F-Drive W1 driver
with different luminaires, breakout boxes, cable lengths, and other system components.
LED Dimming Compatibility Database
The LED Dimming Compatibility Database (etcconnect.com/compatibility/) is a searchable list of
devices that ETC has tested for compatibility with ETC dimming and control systems.
Documentation for Compatible Products
The following documents are available at
Drive/Documentation.aspx:
F-Drive B-Box4 Installation Guide
•
F-Drive Series R12 Installation Manual
•
F-Drive Series W1 Installation Manual
•
The following document is available at
Navis/Documentation.aspx:
ArcSystem Navis 100 Installation Guide
•
The following document is available at
Cell/Documentation.aspx:
ArcSystem Pro D1 and D2 Series Drivers Installation Guide
•
The following document is available at
Fixtures/ArcLamp/Documentation.aspx
ArcLamp System Installation Manual
•
For current technical information about the MEAN WELL RKP-1UI three-bay frame and RCP-2000
48 VDC power supplies, visit https://www.meanwell.com. The RCP-2000/RKP-1UI Instruction Manual
is available at
2000&pdf=UkNQLTIwMDAsUktQLTFVLUUucGRm&a=4.
Corporate Headquarters
Global Offices
New York, NY
Web
© 2022 Electronic Theatre Controls, Inc.
Product information and specifications subject to change. ETC intends this document to be provided in its entirety.
7148M2400 Rev D Released 2022-01
