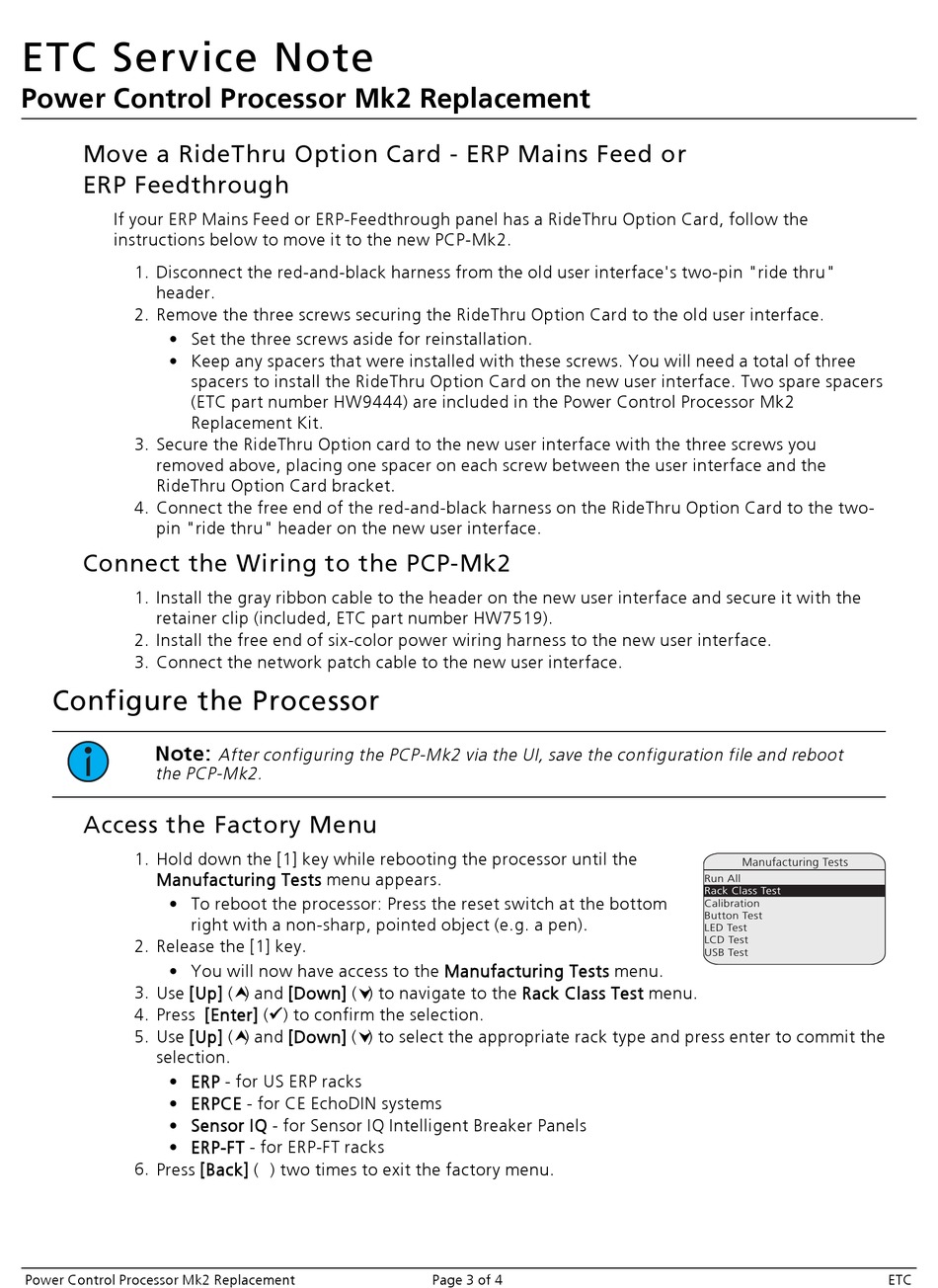

ETC Power Control Processor Mk2 Service Note page 3

ETC Service Note
Power Control Processor Mk2 Replacement
Move a RideThru Option Card - ERP Mains Feed or
ERP Feedthrough
If your ERP Mains Feed or ERP-Feedthrough panel has a RideThru Option Card, follow the
instructions below to move it to the new PCP-Mk2.
1. Disconnect the red-and-black harness from the old user interface's two-pin "ride thru"
header.
2. Remove the three screws securing the RideThru Option Card to the old user interface.
• Set the three screws aside for reinstallation.
• Keep any spacers that were installed with these screws. You will need a total of three
spacers to install the RideThru Option Card on the new user interface. Two spare spacers
(ETC part number HW9444) are included in the Power Control Processor Mk2
Replacement Kit.
3. Secure the RideThru Option card to the new user interface with the three screws you
removed above, placing one spacer on each screw between the user interface and the
RideThru Option Card bracket.
4. Connect the free end of the red-and-black harness on the RideThru Option Card to the two-
pin "ride thru" header on the new user interface.
Connect the Wiring to the PCP-Mk2
1. Install the gray ribbon cable to the header on the new user interface and secure it with the
retainer clip (included, ETC part number HW7519).
2. Install the free end of six-color power wiring harness to the new user interface.
3. Connect the network patch cable to the new user interface.
Configure the Processor
Note:
the PCP-Mk2.
Access the Factory Menu
1. Hold down the [1] key while rebooting the processor until the
Manufacturing Tests menu appears.
• To reboot the processor: Press the reset switch at the bottom
right with a non-sharp, pointed object (e.g. a pen).
2. Release the [1] key.
• You will now have access to the Manufacturing Tests menu.
3. Use [Up] (‡ ) and [Down] (ˆ ) to navigate to the Rack Class Test menu.
4. Press [Enter] (ü) to confirm the selection.
5. Use [Up] (‡ ) and [Down] (ˆ ) to select the appropriate rack type and press enter to commit the
selection.
• ERP - for US ERP racks
• ERPCE - for CE EchoDIN systems
• Sensor IQ - for Sensor IQ Intelligent Breaker Panels
• ERP-FT - for ERP-FT racks
6. Press [Back] ( ) two times to exit the factory menu.
Power Control Processor Mk2 Replacement
After configuring the PCP-Mk2 via the UI, save the configuration file and reboot
Page 3 of 4
Manufacturing Tests
Run All
Rack Class Test
Calibration
Button Test
LED Test
LCD Test
USB Test
ETC
