UM11760
PCA8561AHN-ARD evaluation board
Rev. 1.0 — 21 April 2022
Document information
Information
Content
Keywords
PCA8561AHN, I
Abstract
The PCA8561AHN-ARD evaluation board is a daughter card equipped with
Arduino port, designated for easy test and design of PCA8561 IC, automotive
18x4 LCD segment driver. The board is fully compliant with IMXRT1050
EVK, LPCXpresso55S69 (LPC55S69-ECK) and i.MX 8M Mini LPDDR4 EVK
(8MMINILPD4-EVK, 8MMINID4-EVK), including GUI software control. The
board can be attached to any device equipped with an Arduino port.
2
C-bus, LCD, segment driver Arduino port, EVK
User manual
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for NXP Semiconductors UM11760
Summary of Contents for NXP Semiconductors UM11760
- Page 1 UM11760 PCA8561AHN-ARD evaluation board Rev. 1.0 — 21 April 2022 User manual Document information Information Content Keywords PCA8561AHN, I C-bus, LCD, segment driver Arduino port, EVK Abstract The PCA8561AHN-ARD evaluation board is a daughter card equipped with Arduino port, designated for easy test and design of PCA8561 IC, automotive 18x4 LCD segment driver.
- Page 2 UM11760 NXP Semiconductors PCA8561AHN-ARD evaluation board Revision history Date Description v.1.0 20220421 Initial version UM11760 All information provided in this document is subject to legal disclaimers. © NXP B.V. 2022. All rights reserved. User manual Rev. 1.0 — 21 April 2022...
- Page 3 UM11760 NXP Semiconductors PCA8561AHN-ARD evaluation board Important notice IMPORTANT NOTICE For engineering development or evaluation purposes only NXP provides the product under the following conditions: This evaluation kit is for use of ENGINEERING DEVELOPMENT OR EVALUATION PURPOSES ONLY. It is provided as a sample IC pre- soldered to a printed-circuit board to make it easier to access inputs, outputs and supply terminals.
-
Page 4: Introduction
IMXRT1050 EVK Board, LPCXpresso55S69 Development Board and i.MX 8M Mini LPDDR4 EVK Board. Finding kit resources and information on the NXP web site NXP Semiconductors provides online resources for evaluation board and its supported device(s) on http://www.nxp.com. The information page for PCA8561AHN-ARD evaluation board is at http://http:// www.nxp.com/PCA8561AHN-ARD. -
Page 5: Assumptions
UM11760 NXP Semiconductors PCA8561AHN-ARD evaluation board 3.2 Assumptions Familiarity with the I C bus is helpful but not required. 3.3 Static handling requirements CAUTION This device is sensitive to ElectroStatic Discharge (ESD). Therefore care should be taken during transport and handling. You must use a ground strap or touch the PC case or other grounded source before unpacking or handling the hardware. -
Page 6: Getting To Know The Hardware
UM11760 NXP Semiconductors PCA8561AHN-ARD evaluation board Getting to know the hardware 4.1 PCA8561AHN-ARD features • Equipped with Arduino Uno R3 port for direct connection with Arduino devices; • On-board reset switch; • On-board jumpers for I C address; • Fully compliant with IMXRT1050 EVK board, including GUI (Windows 10);... - Page 7 UM11760 NXP Semiconductors PCA8561AHN-ARD evaluation board Figure 1. The PCA8561AHN-ARD board picture, top view (up) and bottom view (down) UM11760 All information provided in this document is subject to legal disclaimers. © NXP B.V. 2022. All rights reserved. User manual Rev. 1.0 — 21 April 2022...
-
Page 8: Schematic Diagram
UM11760 NXP Semiconductors PCA8561AHN-ARD evaluation board 4.3 Schematic diagram The schematic diagram of PCA8561AHN-ARD is available at URL: http://www.nxp.com/ PCA8561AHN-ARD. 4.4 Arduino port J1, J4, J5, and J6 are the mated pin headers of Arduino Uno R3 connectors, having the same electrical function and placed on the board, so that the daughter board can be directly inserted in the Arduino port. -
Page 9: Lcd Driver
UM11760 NXP Semiconductors PCA8561AHN-ARD evaluation board Table 1. The pin chart of Arduino connectors and their usage ...continued Ref Des Arduino label PCA8561AHN-ARD function D13 / SCK Not used Power supply return AREF Not used A4 / SDA Not used A5 / SCL Not used The circuit is supplied from Arduino port through J6 and J4. -
Page 10: Power Supply
UM11760 NXP Semiconductors PCA8561AHN-ARD evaluation board Figure 2. PCA8561AHN-ARD – LCD driver (up), LCD display (down) 4.6 Power supply Figure 3 depicts the power supply section of schematic diagram (SPF-46661_A.pdf file). The board is supplied with 3.3 V, and 5 V, both voltages being supplied by the Arduino port. -
Page 11: Jumpers And Test Points
UM11760 NXP Semiconductors PCA8561AHN-ARD evaluation board (VCC_5V_MAIN power net). The transistors Q1 and Q2 assures the required power-up and power-down sequence of the LCD driver. See the power sequences section in the PCA8561 datasheet. Figure 3. The PCA8561AHN-ARD – Power supply 4.7 Jumpers and test points... -
Page 12: Installing And Configuring Software Tools
UM11760 NXP Semiconductors PCA8561AHN-ARD evaluation board Figure 4. PCA8561AHN-ARD Jumper locations Table 3. PCA8561AHN-ARD test points Ref Des Test point / jumper label Description C SCL line C SDA line Reset Clock VCC_3V3 rail (Arduino port) VCC_5V0 rail (Arduino port) 3V3_MAIN VCC_3V3_MAIN rail... -
Page 13: Configuring The Hardware
UM11760 NXP Semiconductors PCA8561AHN-ARD evaluation board from the NXP site, allowing rapid testing and operation of PCA8561AHN-ARD daughter board through the one of above mentioned EVK. For details regarding installation of the EVK firmware and GUI host software on PC please download EVK_Firmware_And_GUI_Install_Guide_For_Arduino_Boards.pdf instruction file from... - Page 14 UM11760 NXP Semiconductors PCA8561AHN-ARD evaluation board Figure 5. PCA8561AHN-ARD daughter board and IMXRT1050 EVK board, before starting To configure the hardware and workstation, complete the following procedure: 1. Configure the suitable power configuration of EVK (J1). If using J28 for power supply, the J1 jumper shall be placed in position 5-6.
-
Page 15: Using The Pca8561Ahn-Ard With An Lpcxpresso55S69 Development Board

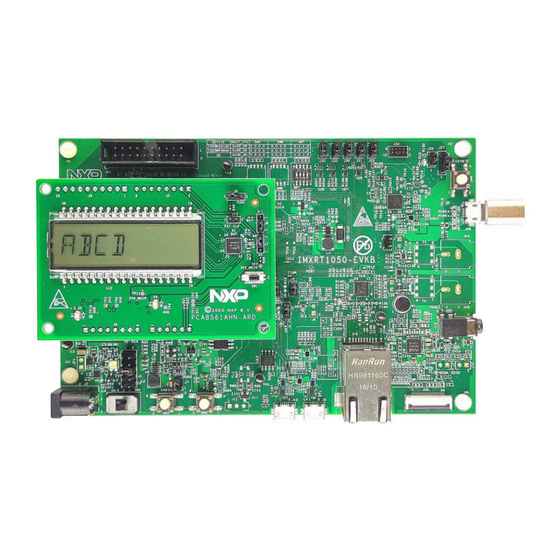

UM11760 NXP Semiconductors PCA8561AHN-ARD evaluation board Figure 6. The assembly PCA8561AHN-ARD daughter board / IMXRT1050 EVK board operation 6.2 Using the PCA8561AHN-ARD with an LPCXpresso55S69 development board Figure 7 shows the required hardware for operation of the PCA8561AHN-ARD and LPCXpresso55S69 EVK board. This configuration consists of: •... - Page 16 UM11760 NXP Semiconductors PCA8561AHN-ARD evaluation board Figure 7. PCA8561AHN-ARD daughter board and LPCXpresso55S69 mother board, before starting UM11760 All information provided in this document is subject to legal disclaimers. © NXP B.V. 2022. All rights reserved. User manual Rev. 1.0 — 21 April 2022...
- Page 17 UM11760 NXP Semiconductors PCA8561AHN-ARD evaluation board The following steps describe how to assemble, program, and operate the configuration shown in Figure 1. Insert the PCA8561AHN-ARD daughter card to P16 – P19 connectors located on LPCXpresso55S69 development board (see the marked pins of P16 – P19, Figure 2.
-
Page 18: Mini Lpddr4 Evk Board
UM11760 NXP Semiconductors PCA8561AHN-ARD evaluation board 6.3 Using the PCA8561AHN-ARD with an i.MX 8M Mini LPDDR4 EVK board When an i.MX 8M Mini LPDDR4 EVK board is used with the PCA8561AHN-ARD board, a third board (IMX8MMINI-IARD interposer board) must be used, especially designed and built as EVK –... - Page 19 UM11760 NXP Semiconductors PCA8561AHN-ARD evaluation board Figure 9. The assembly PCA8561AHN-ARD daughter board, IMX8MMINI-IARD interposer board, and i.MX 8M Mini LPDDR4 EVK, before starting To configure and operate the setup, follow the below steps: 1. Insert the PCA8561AHN-ARD onto the IMX8MMINI-IARD interposer board Arduino connectors (located on the top side) 2.
-
Page 20: Using Pca8561Ahn-Ard With Another Device
EVK. Assure for correct electrical connections and avoid data conflicts on the signal lines, to prevent IC damage. GUI description A GUI application is available for the four EVK boards from NXP Semiconductors. The application is common for all three EVKs described in Section This section describes the GUI application and how the user can control the PCA8561AHN-ARD daughter board from the graphical interface. - Page 21 UM11760 NXP Semiconductors PCA8561AHN-ARD evaluation board • Select EVK: displays the list of EVKs. Selecting a wrong EVK board causes the connection to fail and a pop-up window with the message: “Unable to Connect with EVK” appears on the screen.
- Page 22 UM11760 NXP Semiconductors PCA8561AHN-ARD evaluation board • Accent: if selected, turns on the accent for each character. • Display: the message to be displayed by the LCD. Number from 0 to 9, and uppercase characters (A – Z) are allowed, for each digit.
- Page 23 UM11760 NXP Semiconductors PCA8561AHN-ARD evaluation board – Blinking on – 0.5 Hz – Blinking on – 1 Hz – Blinking on – 2 Hz • Software Reset: Initiate a software reset sequence. The Write button sets the PCA8561 registers with the configuration selected in the GUI.
-
Page 24: Abbreviations
Personal Computer Universal Serial Bus References 1. PCA8561, Automotive 18 x 4 LCD segment driver Product data sheet; NXP Semiconductors; 2. MIMxrt1050 EVK Board Hardware User’s Guide User manual; NXP Semiconductors; 3. i.MX RT1050 Crossover Processors Data Sheet for Consumer Products Data sheet;... - Page 25 CASPER, 320KB SRAM; 640 KB flash, USB HS, Flexcomm Interface, SDIO, 32-bit counter/timers, SCTimer/PWM, PLU, 16-bit 1.0 Msamples/sec ADC, Comparator, Temperature Sensor, AES, PUF, SHA, CRC, RNG Product data sheet; NXP Semiconductors; 6. i.MX 8M Mini LPDDR4 EVK Board Hardware User’s Guide User guide; NXP Semiconductors;...
-
Page 26: Legal Information
NXP Semiconductors. In the event that customer uses the product for design-in and use in In no event shall NXP Semiconductors be liable for any indirect, incidental, automotive applications to automotive specifications and standards, punitive, special or consequential damages (including - without limitation - customer (a) shall use the product without NXP Semiconductors’... - Page 27 UM11760 NXP Semiconductors PCA8561AHN-ARD evaluation board Tables Tab. 1. The pin chart of Arduino connectors and Tab. 3. PCA8561AHN-ARD test points ....... 12 their usage ............8 Tab. 4. Abbreviations ...........24 Tab. 2. PCA8561AHN-ARD jumpers ......11 Figures Fig. 1.
-
Page 28: Table Of Contents
'Legal information'. © NXP B.V. 2022. All rights reserved. For more information, please visit: http://www.nxp.com For sales office addresses, please send an email to: salesaddresses@nxp.com Date of release: 21 April 2022 Document identifier: UM11760...
