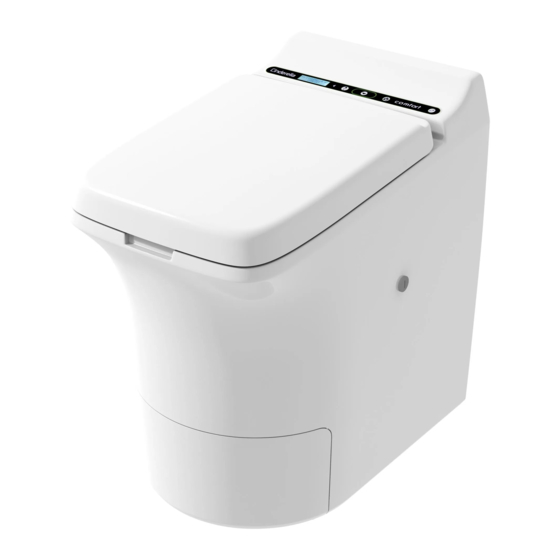

Summary of Contents for Cinderella COMFORT

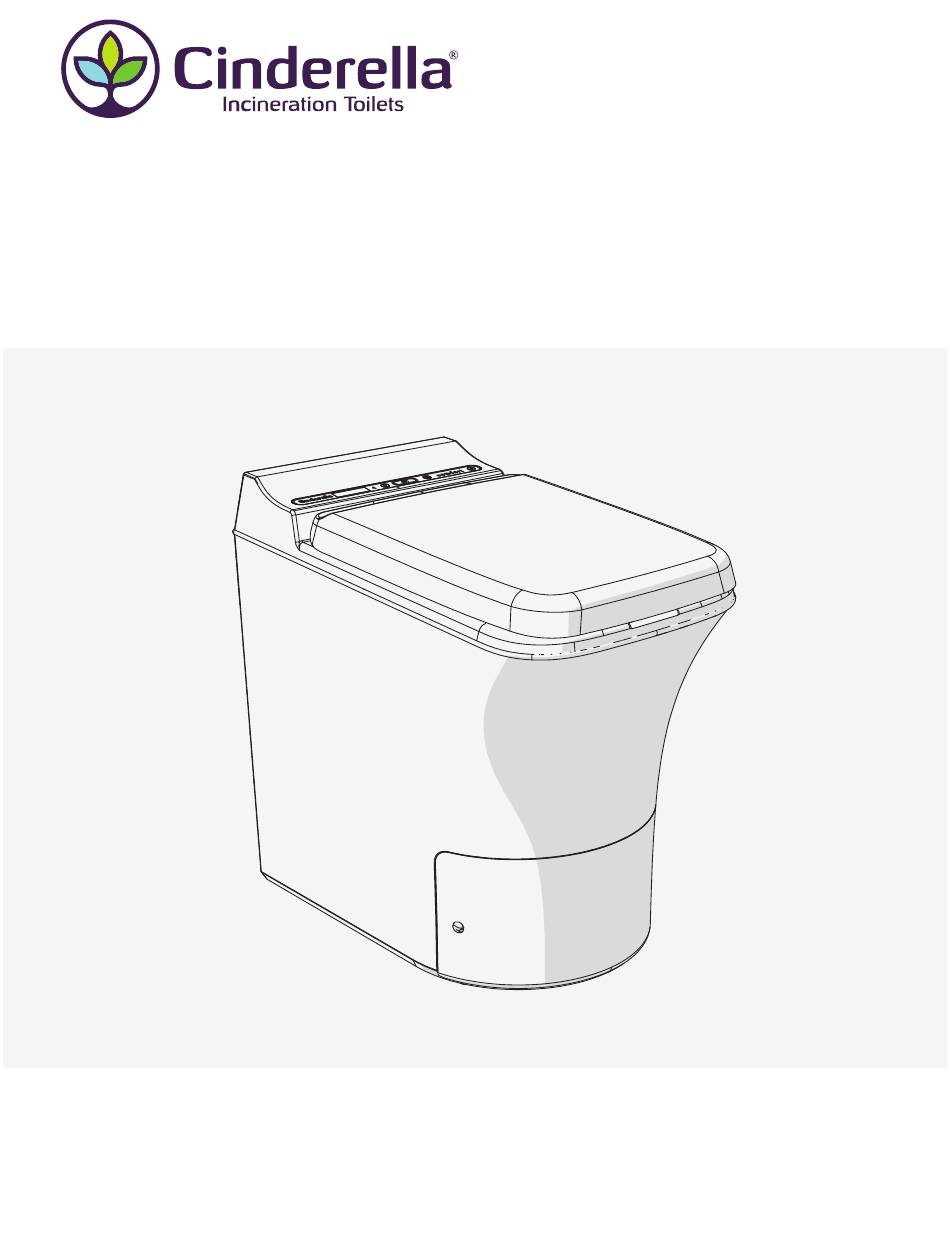

- Page 1 CINDERELLA COMFORT Product manual English Norsk Svenska Suomi Deutch Document number: D000762 Français Revision number: 03 Español Cinderella Comfort Product Manual | 01.06.2022...
-
Page 2: Table Of Contents
1.9 CINDERELLA ONLINE 2. INSTALLATION SECTION 2.1 UNPACKING THE TOILET AND ACCESSORIES 2.2 MEASUREMENT SPECIFICATIONS CINDERELLA COMFORT 2.3 ORIGINAL INSTALLATION PACKAGES FOR YOUR CINDERELLA TOILET 2.4 INSTALLATION SPECIFICATION 2.4.1 SPECIFICATIONS PARTS AND MATERIALS 2.51 INSTALLING THE CINDERELLA INCINERATING TOILET 2.5.1 INSTALLING THE OUTLET PIPES 2.5.2 INSTALLING THE HORIZONTAL INLET PIPE... -
Page 3: General Section
Application not in accordance with the regulations or provisions • Use of non-original bowl liners and spare parts 1.5 LISTINGS AND CERTIFICATIONS The Cinderella Comfort has been extensively tested by NEMKO in accordance with the European standard for electrical safety and electromagnetic compatibility. 1.6 ENVIRONMENTAL REQUIREMENTS •... -
Page 4: General Safety Instructions
1.7 GENERAL SAFETY INSTRUCTIONS DANGER! Safety instruction: Failure to observe this instruction could cause fatal or serious injury. WARNING! Safety instruction: Failure to observe this instruction could lead to injury. CAUTION! Failure to observe this instruction could cause material damage and impair the function of the product. -
Page 5: Appliance Rating Plate
SERIAL: 1.9 CINDERELLA ONLINE REGISTER WITH “MY CINDERELLA” When you register your toilet in “My Cinderella”, you will receive relevant information about our products and registered toilets will be in our manufacturer database. Online Troubleshooter A complete guideline to your toilet, providing useful advice and user improvements, enabling you to solve the most common issues on your own, without having to call for assistance. -
Page 6: Installation Section
2. INSTALLATION SECTION 2.1 UNPACKING YOUR CINDERELLA INCINERATING TOILET INCLUDED ITEMS NOTE! Cinderella Comfort When unpacking the Cinderella toilet, use the Bowl liners the strip all around the box and lift up the box. Product manual 2.2 MEASUREMENT SPECIFICATIONS Height... -
Page 7: Original Installation Packages For Your Cinderella Toilet
Cinderella Original Insulation Kit Arctic: Cinderella has invented a specially designed insulation kit that gives you an added advantage when installed in cold environments. This kit is specially designed for the Cinderella Incineration Toilet and adds a layer of insulation inside the toilet shell which restricts the accumulation of water and ice on your appliance. -
Page 8: Installation Specification
It is essential to ensure proper ventilation in accordance with the guidelines in this manual to guarantee the functionality of your new Cinderella toilet. Improper installation may cause malfunction, wear or odors and will void the warranty. Read each section carefully before starting the installation of the toilet. Always make sure that the work is carried out by professionals in accordance with local regulations. -
Page 9: Installing The Outlet Pipes
280mm. NOTE! The Original Cinderella Installation Kit includes 5 x 1066 mm pipes to be used on the outlet Ø 111mm installation, the pipes are delivered with socket and gasket for simple installation. -
Page 10: Installing The Horizontal Inlet Pipe
It is important to ensure that the toilet has enough access to fresh air, and we therefore always recommend installing the Cinderella Comfort with designated inlet air connection. Supplying fresh air from the outside and into the appliance is essential for cooling, circulation and the supply of oxygen to the incineration process. If the overheating of the appliance. -
Page 11: Installing The Original Cinderella Flue Terminal Cap
2.5.3 INSTALLING THE ORIGINAL CINDERELLA FLUE TERMINAL CAP NOTE! and removal for maintenance of the ventilation pipes. Use the 500 mm pipe included in the Cinderella installation kit as the last section of the ventilation pipe, this will utilize the con- 2.6 ELECTRICAL SPECIFICATIONS AND REQUIREMENTS WARNING! •... -
Page 12: Checklist To Verify The Complete Installation
2.7 CHECKLIST TO VERIFY COMPLETE INSTALLATION CONTROL ITEMS CONFORMANCE The connected voltage is in accordance with the appliance rating plate - Safe draining “siphon” is installed where condensation is likely to accumulate 2.8 PERFORMANCE TEST TO VERIFY SYSTEM FUNCTIONALITY When the “Start” button is pressed, the incineration cycle will be activated. The estimated incineration time for and the complete test should be completed without any fault indications or system interruptions. -
Page 13: User Section
3. USER SECTION 3.1 INTENDED USE AND HANDLING The Cinderella Comfort toilet is intended for indoor installation and use in leisure homes such as cabins, second homes, outhouses, site welfare units, boathouses and pool houses. The toilet is solely designed to incinerate bodily waste products and small sanitary products such as tampons, sanitary pads and non-alcoholic baby, face and cleaning wipes. -
Page 14: Important User Information
‘‘Start’’ at the completion of each visit. Capacity 4 uses per hour The Cinderella Comfort toilet is designed to handle up to four visits per hour. To avoid overload, more than four visits per hour is not recommended. Overloading the toilet with many visits in a... -
Page 15: The Control Panel
Emptying indicator Your Cinderella Comfort will indicate when it is time to empty the ash container. The display will read ‘‘EMPTY THE ASH CONTAINER” and you will hear three short beeps when the toilet lid is opened. If not emptied within a short period of time, the toilet will lock down. -
Page 16: Using The Cinderella Comfort Toilet
3.7 USING THE CINDERELLA COMFORT TOILET 1. Check that the green light on the 2. Lift the toilet lid and seat. A red 3. Place a bowl liner in the bowl. control panel is lit, indicating the Use a new bowl liner for every visit. -
Page 17: Operating The Front Cover And Ash Container
3.8 OPERATING THE FRONT COVER AND ASH CONTAINER WARNING! NOTE! Please see the maintenance section for instructions regarding cleaning and emptying the ash container. -
Page 18: General Maintenance Instructions
In order to ensure optimal operation and extend the lifetime of your Cinderella Comfort appliance you will need to set aside a little time for preventive maintenance. Good maintenance routines will give you lower operating costs and cause less wear on the product. -
Page 19: Customer Maintenance
4.2 CUSTOMER MAINTENANCE 4.2.1 EMPTYING AND CLEANING THE ASH CONTAINER 15 minutes CAUTION! Do not use any sharp tools or objects when cleaning the ash container insert, as this will damage the insert and reduce its service life. NOTE! • In order to preserve the functionality of your toilet in the best possible way, we recommend that you carry out the “steam cleaning”... -
Page 20: Cleaning The Bowl
4. Insert the ash container carefully without spilling any water, and attach the front cover. 5. Press “Start” to begin an incineration cycle. 6. The water will start to boil and the steam will clean out any debris in the catalytic converter. This system cleaning will normally take 60–80 minutes. -
Page 21: Inspecting The Catalytic Converter
4.2.4 INSPECTING THE CATALYTIC CONVERTER Recommended frequency: Every 500 uses. catalytic conversion. The best method to easily clean the catalyst is to perform “steam cleaning” as described in section 4.2.2. You can also inspect the front of the catalyst by removing the ash container and illuminating the combustion chamber from the inside. -
Page 22: Rinsing The Catalytic Converter With Hot Water
4.2.6 RINSING THE CATALYTIC CONVERTER WITH HOT WATER Rinsing the catalytic converter with water may be necessary in situations where steam cleaning do not remove the particles or bad odours. This procedure requires heavy lifting and a facility where spillage of water is follows. - Page 23 Resetting the toilet system During cleaning and troubleshooting, resetting the electronics may sometimes be helpful. You can do this by pressing the “Start” button. This will cause a short beep to sound. Hold down the button for about eight seconds until you hear a long beep, then release the button.
-
Page 24: Troubleshooting Table
5.1 TROUBLESHOOTING TABLE NOTE! Cinderella has developed a digital troubleshooting module that can be found on our website. This module will work as a guide and supplement in addition to the troubleshooting table. Please visit www.cinderellaeco.com DISPLAY YELLOW GREEN ERROR... -
Page 25: Repairs And Spare Parts
6. REPAIRS AND SPARE PARTS 6.1 SPARE PARTS LIST PART DESCRIPTION ART. NO ID PART DESCRIPTION ART. NO Control panel Comfort w/display 100115 12 Hall sensor w/ wire reduced length 100965 Magnet 14x10mm 100433 13 Heater element assembly230VAC 100862 Hall sensor w/ wire and tape... -
Page 26: Wire Diagram
6.2 WIRING DIAGRAM... -
Page 27: Warranty
Professional users are granted one (1) year warranty. What will Cinderella Eco Group do? If you submit a valid claim under this warranty, Cinderella Eco Group will either repair, replace or refund the purchase price of your Cinderella Incineration Unit, at its sole discretion.
