INSTALLATION MANUAL
Language: English

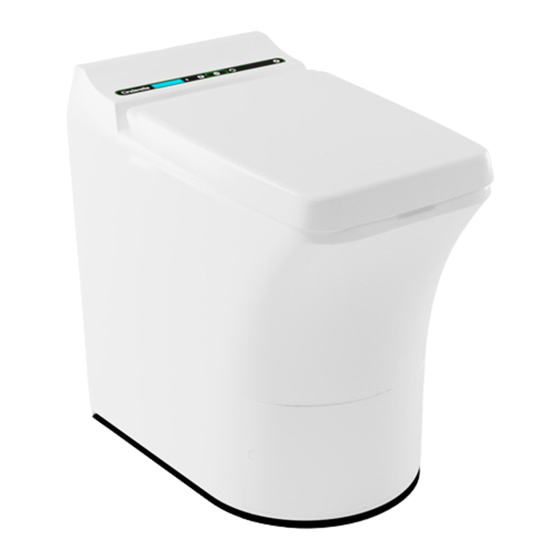

Model: Cinderella Comfort Australia

Advertisement

Table of Contents
loading

Related Manuals for Cinderella Cinderella Comfort Australia

Summary of Contents for Cinderella Cinderella Comfort Australia

  • Page 1 INSTALLATION MANUAL Language: English Model: Cinderella Comfort Australia...

  • Page 2: Table Of Contents

    CONTENTS Registration of Your Product ..................Page 2 Display Language ........................Page 2 How to select language on the Cinderella Comfort Display Included Parts ......................... Page 3 Required Tools ......................... Page 3 Cinderella Comfort dimentions .................Page 4 Specifications and Requirements ................Page 6...

  • Page 3: Display Language

    DISPLAY LANGUAGE HOW TO SELECT LANGUAGE ON THE CINDERELLA COMFORT DISPLAY 1. Hold down the “Language select” button for 3 seconds until “Language” is displayed on the first text line. The current language will be displayed on the second line.

  • Page 4: Included Parts

    9. Installation manual 1 pc. Cinderella Comfort Model Comfort NA Cinderella Comfort Model Comfort NA Cinderella Comfort Installation Manual Languages: English, French Cinderella Comfort User Manual Languages: English, French REQUIRED TOOLS 1. Drill 2. Hole saw 111 mm, for cutting holes for the outlet and inlet air pipes 3.
  • Page 5 CINDERELLA COMFORT DIMENSIONS IN MM Side view Units Scale Sheet size Date Metric (mm) 1 : 5 Tittel Cinderella Comfort Side view Front view...

  • Page 6: Specifications And Requirements

    Cinderella Comfort Australia. ELECTRICAL SPECIFICATIONS AND REQUIREMENTS The Cinderella Comfort is designed to operate on a 240V AC circuit with a minimum of 10 amps available. Cinderella Comfort Australia is delivered with a standard Australian (AU1-10P) plug.

  • Page 7: Before Installation

    YOUR VENTILATION Planning and setting up the ventilation is an important part of the installation of your Cinderella toilet. There are several ways of installing the outlet pipe as well as inlet pipe. Proper installation will ensure optimal airflow and will not restrict the pipe flow.

  • Page 8: Outlet Air

    The inside of the pipe must be smooth, preferably of a PP- or CPVC-type. Do not use any flexible ducts or pipes when installing the Cinderella toilet. The supplied ventilator cowl must always be used. Specifications and guidelines for installing the Cinderella Comfort Toilet: •...

  • Page 9: Installing The Outlet Air Pipe Through An Exterior Wall

    INSTALLING OUTLET AIR PIPE INDOOR THROUGH THE CEILING For the Cinderella toilet to be placed close to the wall, as shown in fig. 3, you need to cut off a piece of the included long pipe to a minimum length of 80 mm. Always make sure to preserve one of the bevelled pipe ends, to be used when connecting the toilet to the pipe.

  • Page 10: Inlet Air

    INLET AIR BEFORE INSTALLATION The air inlet vent should be installed as close to the Cinderella as possible. This ensures good air supply to the toilet and reduces the environmental impact in the toilet room. It is important that there are no other air- dependent installations in the same room, e.g.

  • Page 11: Air Inlet Pipe Through The Outer Wall

    To install pipes through the wall, follow these step-by-step instructions: 1. Draw a mark in the Cinderella’s centreline, 150 mm from the floor ( fig. 15). 2. Pre-drill a hole using a long drill bit through the interior and exterior wall in the centre of where you will drill your 110 mm hole.

  • Page 12: Finalising The Installation

    Performance test: 1. Open the lid and seat – Red light should be lit and the fan starting to blow. 2. Simply insert an Original Cinderella Bowl Liner into the toilet. 3. Add water (1.2 litres) and toilet paper (1 metre) 4.

  • Page 13: Repairs And Spare Parts

    REPAIRS AND SPARE PARTS Pos. CES Art Description Control panel with 100115 display Exhaust fan 100155 Hatch motor 100858 assembly Catalytic converter 100784 housing Heater element 101047 Battery 12V,2.6Ah 100083 Circuit board E5 V1.0 100063 Limit switch 100873...

  • Page 14: Replacing The Backup Battery

    REPLACING THE BACKUP BATTERY Disassembly: Disconnect the mains power supply (fig 24). Pull the toilet away from the ventilation pipe and unscrew the rear panel with a Torx Size T10 screwdriver and open the cover (fig 25). Disconnect the earth lead removing it from its clip on the circuit board (fig. 26). Disconnect both power leads from the battery (fig 27).

  • Page 15: Cinderella Online

    Step-by-Step Installation Video Before you install your Cinderella Comfort Australia, you may want to look at our online tutorial video. This tutorial will take you through the whole process from locating where to place the toilet to how to install your Cinderella Comfort Australia.
  • Page 16 Distributor: Manufacturer: Learn more about Cinderella cinderellaeco.com Cinderella Eco Australia Pty Ltd, Sydney New South Wales 2000, AUSTRALIA Phone: (61) 434 531 515, E-mail: sales.australia@cinderellaeco.com...
