IMPORTANT: Please read all of the following instructions before installing your new
light. Failure to follow these safety precautions may result in damage to your light or
vehicle and may result in serious injury or death to you and your passengers.
 Installer must have firm knowledge of vehicle electrical systems & emergency equipment.
It is the sole responsibility of the installer to ensure the warning light is secure. The
manufacturer assumes no responsibility for the secure mounting of this light.
 If you need to drill any holes when installing this light, please take care to check that
BOTH SIDES of your drilling surface are clear from obstructions.
 Choose a mounting location away from any air bag deployment areas.
 Controls should be placed within convenient reach of the driver.
 Use only soap and water when cleaning product. Use of other chemicals may discolor
lens and/or housing, diminishing light output.
When wiring your lights, it is recommended that you take the following
precautions to reduce any Electromagnetic Interference (EMI).
 Keep LED modules and any radios as far away from each other as possible.
 Separate the radio wires and the LED wires.
 Any excess wires should be cut short.
 The Ground wire, Power wire, and Synchronization wire should be bound tightly
together as they run from light to light, through your switchbox, and to the battery.
 Do not ground each unit independently to the chassis. Run the ground for each unit
in a "bus" like structure, to the negative terminal on the battery.
Note: The total wire length between the two farthest units should be no more than 40 feet.

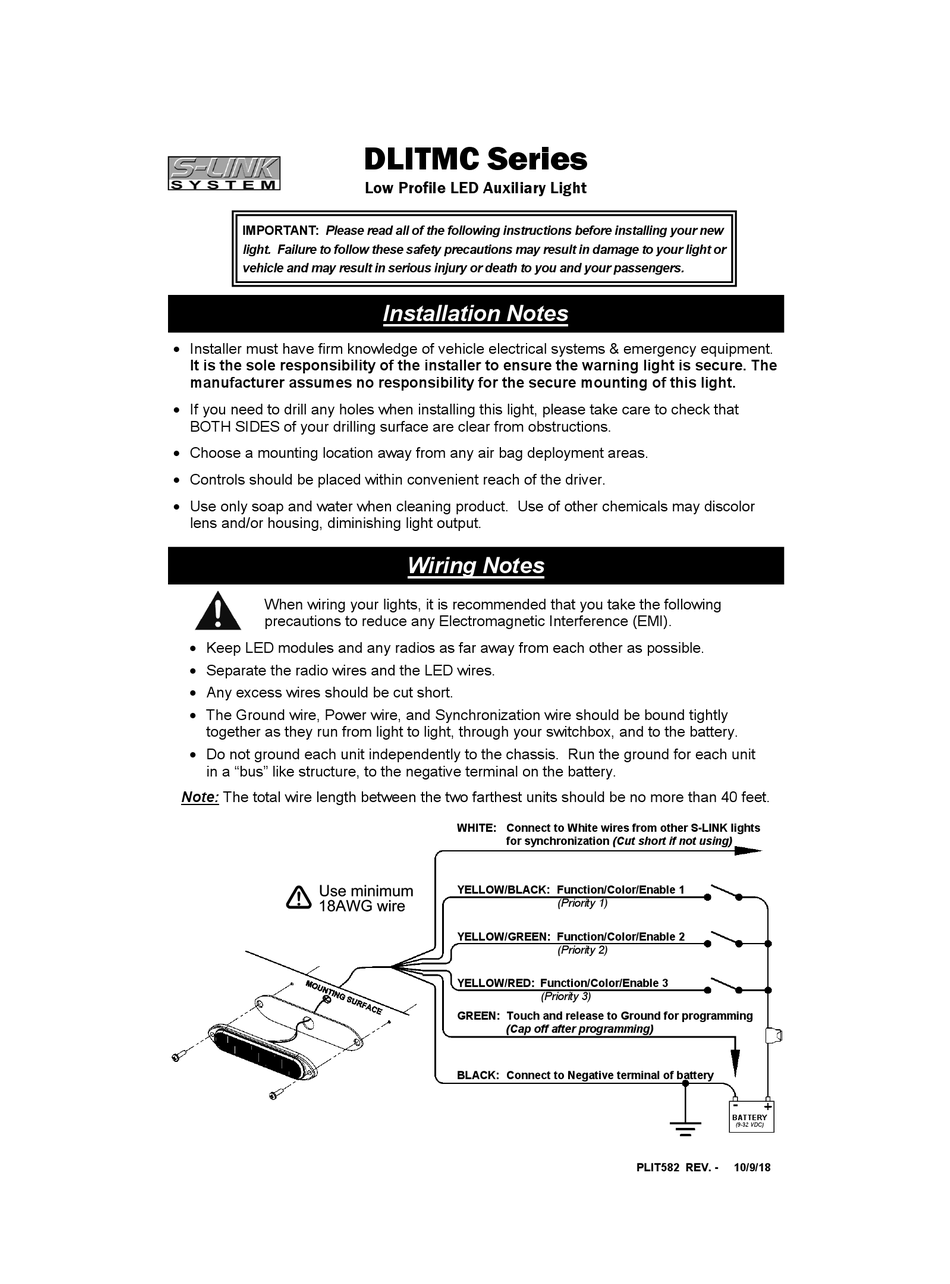

DLITMC Series
Low Profile LED Auxiliary Light
Installation Notes

Wiring Notes

WHITE: Connect to White wires from other S-LINK lights
for synchronization (Cut short if not using)
YELLOW/BLACK: Function/Color/Enable 1
YELLOW/GREEN: Function/Color/Enable 2
YELLOW/RED: Function/Color/Enable 3
(Priority 3)
GREEN: Touch and release to Ground for programming
(Cap off after programming)
BLACK: Connect to Negative terminal of battery
(Priority 1)
(Priority 2)
BATTERY
(9-32 VDC)
PLIT582 REV. -
10/9/18

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DLITMC Series and is the answer not in the manual?

Questions and answers

Summary of Contents for Star Headlight & Lantern DLITMC Series

  • Page 1 DLITMC Series Low Profile LED Auxiliary Light IMPORTANT: Please read all of the following instructions before installing your new light. Failure to follow these safety precautions may result in damage to your light or vehicle and may result in serious injury or death to you and your passengers.
  • Page 2 Mounting Instructions MUST DRILL HOLES THE SPECIFIED SIZES!!! DO NOT OVER TIGHTEN SCREWS!! TORQUE TO 10 IN.-LBS.!! This light must be mounted on a perfectly flat surface!! Failure to do so will result in damage to the housing and will void the warranty! Once the wires are run, the use of a small amount of silicone or other similar sealant (not included) is recommended to seal the wire hole and prevent your wires from becoming damaged.
  • Page 3 2-Phase Patterns (1-10) If you program any of the Enable wires for Pattern 1-10, the default functionality will be such that it will activate the single color that is tied to that Enable wire. (See the Advanced Programming section for additional functionality.) 3-Phase Patterns (11-18) If you program any of the Enable wires for Pattern 11-18, the default functionality will be such that it will activate all three colors dispersed...
  • Page 4 RESET TO DEFAULT SETTINGS To reset all settings to the factory defaults, proceed as follows:  Connect the BLACK wire to Ground  Connect the WHITE wire and any ONE of the Enable wires to Power  Connect hold the GREEN wire to Ground for 9 seconds and release it when the light flashes 3 times.
  • Page 5 This section is OPTIONAL. Most applications will not require any Advanced Programming. You should only need to reference this section if you require specialized programming. Advanced Programming CHANGING COLOR ASSIGNMENTS FOR EACH ENABLE (applies only to Patterns 1-11, Steady Burn, and Cruise) The list to the right shows the default factory settings in which each Enable wire has one color assigned to it when using Patterns 1-11.
  • Page 6 CHANGING COLOR ORDER FOR EACH ENABLE (applies only to Patterns 12-18 / 3-Phase Patterns) When programmed for Patterns 12-18, each Enable wire has a default “Color Order” assigned to it (the order the colors are rotated through). DEFAULT ENABLE WIRE COLOR ORDERS FOR 3-PHASE PATTERNS YELLOW w/BLACK - Enable 1 (Priority 1): Color 1/Color 2/Color 3 (setting #22) YELLOW w/GREEN - Enable 2 (Priority 2): Color 2/Color 3/Color 1 (setting #8) YELLOW w/RED - Enable 3 (Priority 3): Color 3/Color 2/Color 1 (setting #6)
  • Page 7 WIRELESS PROGRAMMING (OPTIONAL) Optionally, instead of using the wires to program this light, it can be done using any android based phone or tablet that has a flash on it. 1. Download the application from the play store. 2. Select the desired options in the app. 3.
  • Page 8 LED FIVE YEAR LIMITED WARRANTY The manufacturer warrants this LED light against factory defects in material and workmanship for five years after the date of purchase. The owner will be responsible for returning to the Service Center any defective item(s) with the transportation costs prepaid. The manufacturer will, without charge, repair or replace at its option, products, or part(s), which its inspection determines to be defective.
