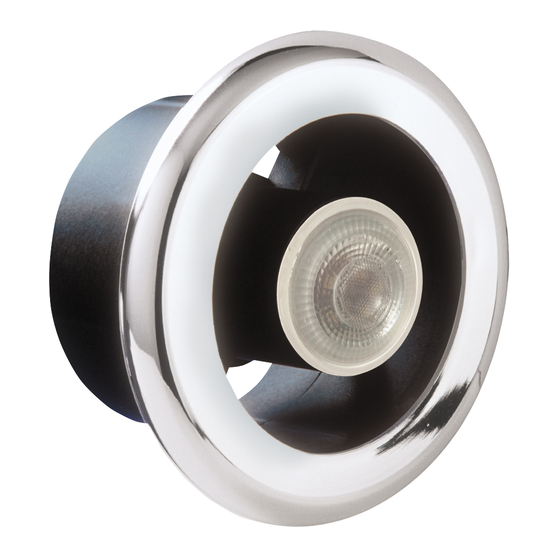

Manrose Showerlite LEDSLKTC Installation And Wiring

Installation and Wiring
Instructions
LEDSLKTC
Switch off mains supply before making any electrical
connections.
Installation must be supervised by a qualified electrician.
This appliance can be used by children aged from 8 years and above
and persons with reduced physical, sensory and mental capabilities
or lack of experience and knowledge if they have been given
supervision or instruction concerning the use of the appliance in a
safe way and understand the hazards involved.
Children shall not play with the appliance.
Cleaning and user maintenance shall not be made by children
without supervision.
Precautions must be taken to avoid the back-flow of gases into the
room from the open flue of gas or other open-fire appliances when
mounted in outside windows or walls.
Fan must be disconnected from electrical power before any
maintenance is carried out.

Location

1. When installing this fan's ducting through an
external wall, an external wall grille must be fitted
at all times.
2. This fan should be fitted to ducting with a minimum
duct length of at least 500 millimetres both sides
of the fan.
3. Where ducted fans are used to handle moisture-
laden air, such as a bathroom, a condensation trap
should be fitted in any vertical exhaust ducts.
4. When using flexible ducting, ensure it is pulled
taut. All ducting should be angled towards the
external grille.
5. Ducting passing through cold voids should be
insulated.
6. If the fan and duct extract grille is installed in a
room containing a fuel burning appliance, the
installer must ensure that the air replacement is
adequate for both the fan and the fuel burning
appliance.
All manuals and user guides at all-guides.com

Wiring

1. Switch off mains supply before making electrical
connections. If in any doubt contact a qualified
electrician.
2. These units are for fixed wiring only. A flexible
cord must not be used. All wiring must be fixed
securely and the cable to the fan should be a
minimum of 1mm
2
comply with current I.E.E. Regulations or local
regulations if outside the UK.
3. A double pole fused spur having contact
separation of at least 3mm in all pole must be
used and fitted with a 3A fuse.
4. This fan is double insulated and does not require
an earth connection.
5. The fan should not be accessible to a person
using either the shower or the bath.
in section. All wiring must
