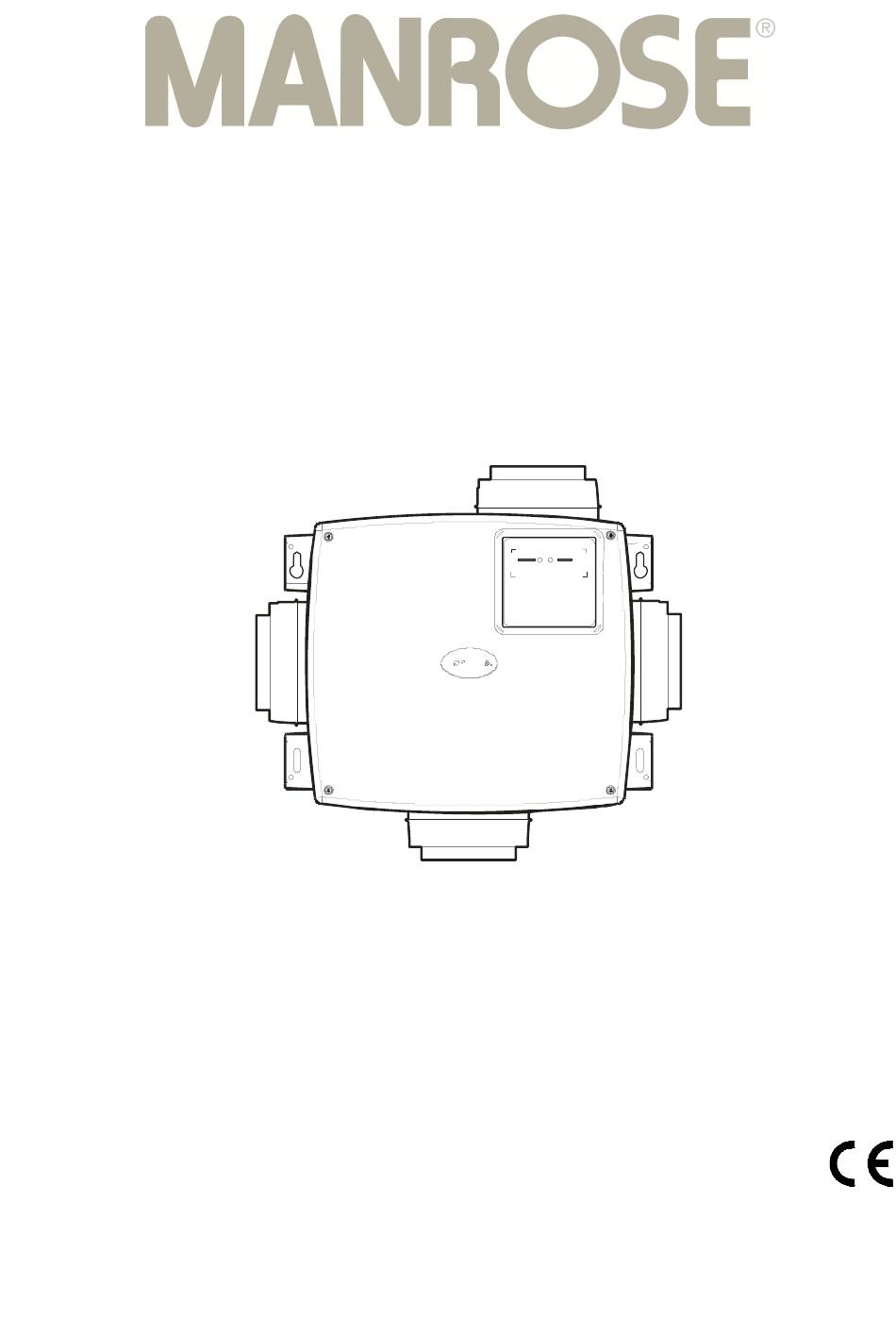

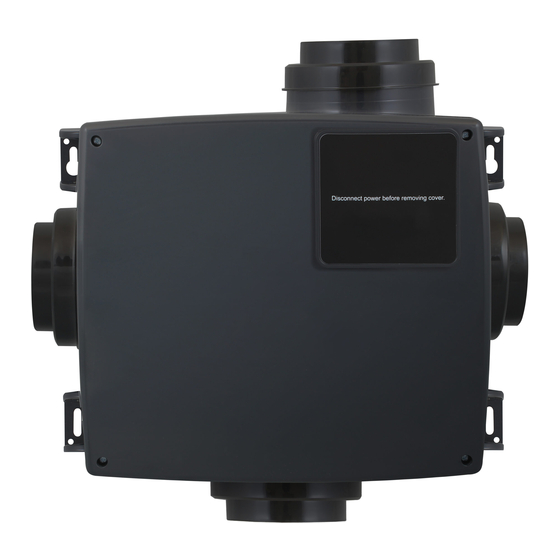

- Page 1 Lo-Watt Manivent AC Whole-house extract system Installation and Wiring Instructions MANI3000N IP22 PLEASE READ INSTRUCTIONS IN CONJUNCTION WITH THE ILLUSTRATIONS. PLEASE SAVE THESE INSTRUCTIONS...
- Page 2 Installation and Wiring Instructions for the ManiVent MANI3000N. IMPORTANT: READ THESE INSTRUCTIONS BEFORE COMMENCING THE INSTALLATION SAFETY AND GUIDANCE NOTES 1. DO NOT install this product in areas where the following may be present or occur: 1.1. Excessive oil or a grease laden atmosphere.
- Page 3 • Sudden ductwork bends or transformations close to the Unit. The MANI3000N can be mounted in 3 orientations for convenient installation in roof voids with a height ≥ 250mm. a). Base mounted Installation with ducting radiating out horizontally. b). Vertically mounted Installation with the exhaust spigot at top. The electrical connections must come out of the...
- Page 4 Avoid having any bends, filters or other obstructions within 250mm of the fan inlets and outlet. • 1. Position the MANI3000N, taking into consideration the position of the rooms to be ventilated, the exhaust position, the drainage position and the electrical services. Ensure there is adequate access for installation and maintenance.
- Page 5 THE MANI3000N UNIT MUST BE EARTHED. Access to the MANI3000N connection terminals is under the top cover which is retained by four screws. Ensure that the mains supply voltage, frequency, number of phases and power rating comply with the details on the rating label positioned under the top cover.
- Page 6 Fig.2. Wiring for 3 speeds selectable by external switch Fig.3. Wiring for automatic switching from medium to high speed utilising an external sensor.
- Page 7 If this occurs isolate the MANI3000N, check for and remove any obstruction, leave for a short time for the motor to cool before reconnecting. If this recurs, Isolate the MANI3000N and call a service engineer.
- Page 8 H. PRODUCT FICHE This product contains a self-cleaning backward curved impeller that requires no servicing. Name: Manrose Manrose Model ID (Stock Ref.) : MANI3000N MANI3000N SEC Class SEC Value ('Average') -26.25 -18.87 SEC Value ('Warm') -10.75 -6.85 SEC Value ('Cold') -53.31...
