GENIUS
D E S I G N E R S E R I E S
Simx Connect
App Function Overview

Advertisement

loading
Need help?

Need help?

Do you have a question about the Designer Series and is the answer not in the manual?

Questions and answers

Related Manuals for Manrose Designer Series

Summary of Contents for Manrose Designer Series

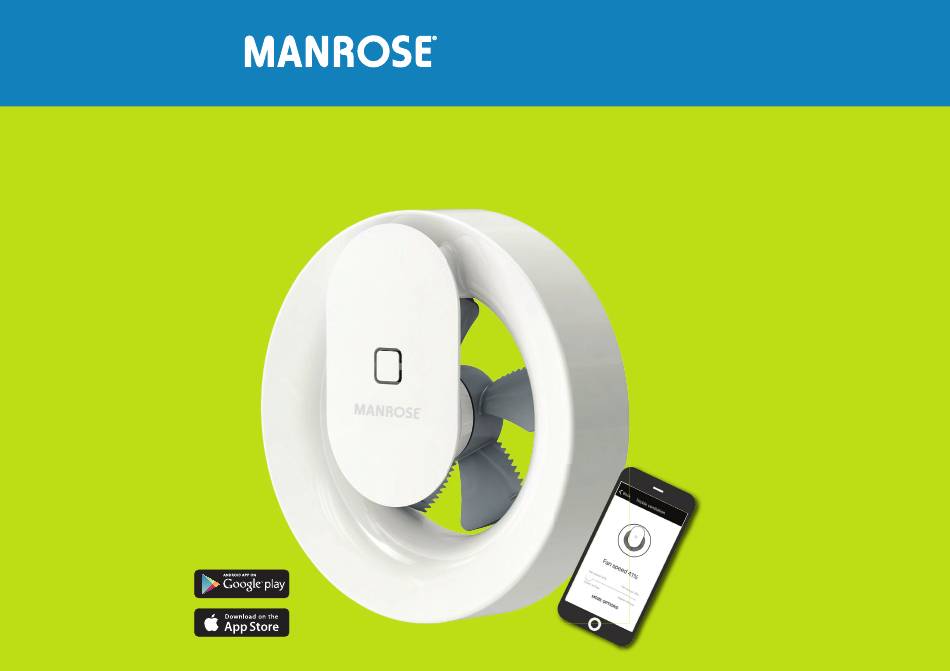

  • Page 1 GENIUS D E S I G N E R S E R I E S Simx Connect App Function Overview...
  • Page 2 Sweden by a sister company in our group - PAX. The PAX User and Installation Guide, included in the Manrose Genius kit, is applicable to the Manrose Genius, except for the specific details below. Locate the App by searching...
  • Page 3 D E S I G N E R S E R I E S These slides are designed to aid in the set up and demonstration of the Manrose Genius app controlled fan. The fan can be used without setting up on the app and, in this case, will operate on default factory settings.
  • Page 4 GENIUS D E S I G N E R S E R I E S Unique Pin Code To activate the App, enter the fan’s unique code, found on the right leg of the motor unit as shown. To remove the motor unit, firmly grip and pull out from the housing.
  • Page 5 GENIUS D E S I G N E R S E R I E S Once the unique pin number is entered the fan will display a white light to show communication is taking place.
  • Page 6 GENIUS D E S I G N E R S E R I E S If you have more than one fan in the home, you can re name them to suit their locations. For example • Family Bathroom • Ensuite 1 •...
  • Page 7 GENIUS D E S I G N E R S E R I E S The name will appear in the full list and gives the user the reassurance that they have selected the correct fan before proceeding to change the settings or functionality.
  • Page 8 D E S I G N E R S E R I E S Please note that in order to use the automation control functionality of the Manrose Genius, it is recommended that it is NOT wired through a wall switch (refered to as a “circuit breaker” in the App).
  • Page 9 GENIUS D E S I G N E R S E R I E S Manrose Genius can be set-up as a Heat Transfer unit to move warm air through an internal wall from one room (eg. lounge) to an adjacent room.
  • Page 10 GENIUS D E S I G N E R S E R I E S The fan can also be used as an intermittent fan or as a continuously running fan.
  • Page 11 GENIUS D E S I G N E R S E R I E S Congratulations. Once you have linked the fan, you can proceed to setting the individual fans the way you want. Providing you with the most intelligent, controllable and flexible 100mm fan available.
  • Page 12 D E S I G N E R S E R I E S Once the set up is complete you can select the individual fan from the list. You can then begin to enjoy the flexibility and controllability of the Manrose Genius.
  • Page 13 GENIUS D E S I G N E R S E R I E S By selecting the settings icon at the top of the page you can make some functional changes. Select how you want to display the airflow. We would suggest selecting the litres per second display option.
  • Page 14 GENIUS D E S I G N E R S E R I E S Manually boost the fan for 15 minutes at any time to apply maximum ventilation. Switch the sensors on /off. Trickle or Basic Ventilation function. This will adjust the sensitivity and extraction rate of the continuous running cycle.
  • Page 15 GENIUS D E S I G N E R S E R I E S Once each of the individual sensors have been selected the adjustment is simple. By simply sliding the bar up and down the amount of air moved when When automatic purge cycles are the function is activated is increased activated, the fan runs on maximum...
  • Page 16 GENIUS D E S I G N E R S E R I E S Select if you want to switch Select if you want to switch trickle/basic speed on/off. trickle/basic speed on/off. Select sensitivity of the humidity sensor system. Select sensitivity, This adjusts the rate of humidity change required...
  • Page 17 GENIUS D E S I G N E R S E R I E S Manrose Genius as a through-wall heat transfer unit For heat transfer select the temperature at which you wish the fan to start moving the warm air from one room through an internal wall to another room or hallway.
  • Page 18 As awarded by The Chicago Athenaeum: Museum of Architecture and Design boats etc. • 5 year warranty Distributed by Simx Limited PO Box 14347, Panmure, Auckland 1741, New Zealand p +9 259 1660 e enquiry@manrose.co.nz w www.manrose.co.nz w www.manrose.com.au PUB1487 1812...
