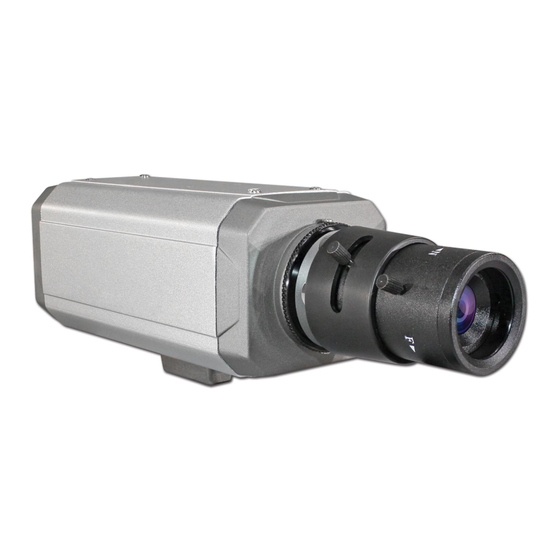

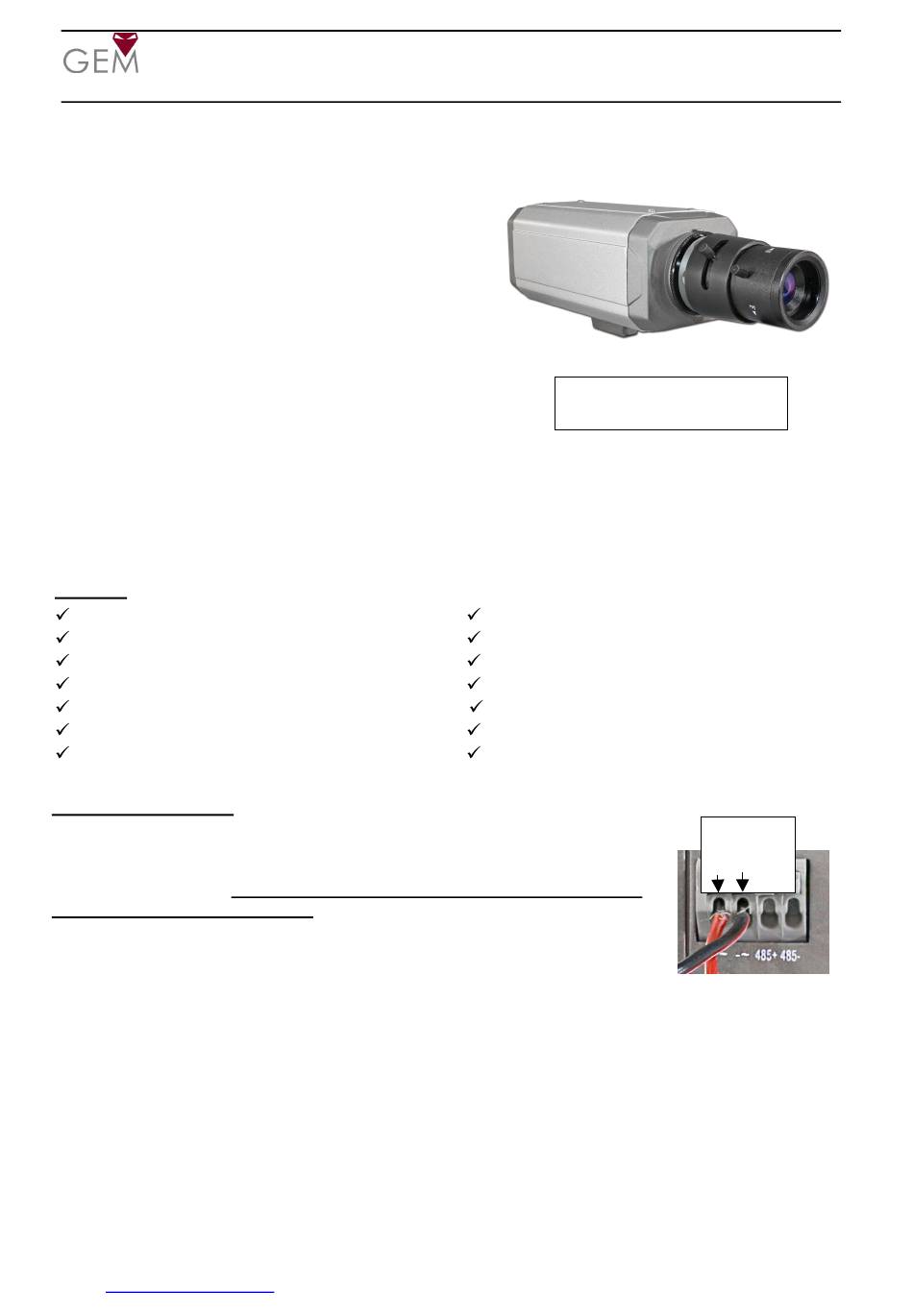

Traditional Wide Dynamic Camera with RS485
CAM065
These Traditional cameras have Digital WDR
functionality allowing improved picture quality
in mixed lighting conditions. They are
complimented with an OSD menu, allowing
access via camera or RS485, privacy masking,
digital zoom and adjustable NiteDevil settings.
The cameras are fitted with a Sony Super HAD
CCD II and are Hi-Res 700TVL
CAM065 12v DC only without lens
CAM065L 12v DC with 2.8 ~ 12mm Direct Drive Lens
CAM065P 12v DC with 6.0 ~ 60mm Direct Drive Lens
The cameras provide a resolution of 700TVL and comes with many of the NiteDevil features
including an OSD menu, the Digital Slow Shutter feature allowing minimum illumination down to
0.001 Lux and wide dynamic option.
Features
1/3" Sony Super HAD CCD II 700 TVL
Wide Dynamic Range setting
Various Lens Options
Built-in OSD menu
Privacy Masking
Electronic Shutter
Digital Zoom up to 256x
Powering the Camera
CAM065
The CAM065 requires a 12v DC regulated power supply providing a minimum of 300mA.
When connecting to any 12v DC power supply, always use a regulated supply. The camera
has a terminal connection. This camera is polarity sensitive so ensure that the positive
and negative connections are correct. If incorrectly connected damage to the camera may
result. It is recommended that the power supply used, allows additional headroom per
camera to ensure long life, taking into account the extra load created by adding an auto-iris
lens (typically 10mA). The power supply you choose must be a well regulated one giving a
smooth regulated 12V DC output and it is recommended that it should be rated at no less
than 450mA.
WARNING - This power supply must not be a security type used in intruder alarms as the over voltage may damage
the camera and void the warranty. The earthing arrangement of an intruder type alarm PSU may give rise to
problematic "earth-loops" and poor voltage regulation can give poor/noisy image quality. We offer no technical
support or warranty with the camera if you use a 13.8V intruder alarm PSU as it is contrary to the installation & usage
instructions of the camera. The terminal strip will facilitate easier and faster power connection without the hassle of
soldering. The terminal connection can be seen in the picture above. The 12V+ and -0v connections from the power
supply must be connected correctly. If you have a 2.1mm jack plug connected to your power supply you will need to
cut this off and use the bare wires to connect to the terminal strip. Note that the 12V positive is the wire that was
connected to the centre pin of the jack plug and the 0V wire was connected to the outer case.
Email:
support@nitedevil.com
04/02/2013
Lens supplied separately
2 fitted lens options available
Low Light 0.001 Lux
Maximum 2.6 watts consumption
Digital Slow Shutter up to 256x
Built-in 3DNR function
RS485 menu control
Motion Detection Alarm Function
Contrast & Sharpness adjustments
XCAM065
POLARITY
SENSITIVE
+
-
Last Revised:
Advertisement
Related Manuals for System Q NiteDevil Gem CAM065
Summary of Contents for System Q NiteDevil Gem CAM065
- Page 1 XCAM065 Traditional Wide Dynamic Camera with RS485 CAM065 These Traditional cameras have Digital WDR functionality allowing improved picture quality in mixed lighting conditions. They are complimented with an OSD menu, allowing access via camera or RS485, privacy masking, digital zoom and adjustable NiteDevil settings. The cameras are fitted with a Sony Super HAD CCD II and are Hi-Res 700TVL Lens supplied separately...
- Page 2 XCAM065 Traditional Wide Dynamic Camera with RS485 Fitting the Camera Lens Fit the Auto Iris Direct Drive Lens connector to connection shown. Auto-Iris Direct Drive Connections Auto Iris type lenses require the 4-pin connector to be attached to the camera. It is important that this connector is wired correctly.
- Page 3 XCAM065 Traditional Wide Dynamic Camera with RS485 Setting Up an Auto Iris Direct Drive Lens for different Light Levels The brightness setting in the menu determines when the IRIS of the lens opens and closes. It is important to set this correctly as if the brightness level is set too low, you may get satisfactory pictures during the day but at night not enough light can enter the camera giving poor quality pictures.
-
Page 4: Menu Structure
XCAM065 Traditional Wide Dynamic Camera with RS485 To display the OSD menu press the ENTER button. ENTER BUTTON: Displays menu on the screen. Press button down to Exit menu, Save & Exit, Reload Pty(Reset*) or Return. UP/ DOWN BUTTON: Used to change the value of a selected item and move up and down menu. - Page 5 XCAM065 Traditional Wide Dynamic Camera with RS485 Using the Menu The menu can be accessed by pressing the Enter button down on the back of the camera or by accessing the camera using the RS485 connection. This option will be discussed later in this manual. When you enter the main menu you will see six sub menus listed on the left side of the screen and an arrow pointing to the first menu.
- Page 6 XCAM065 Traditional Wide Dynamic Camera with RS485 Demist Demist: Auto/Low/Middle/High 3D-NR On/Off Color Adjust Auto White Balance is used to cater for different light temperature and the general setting for indoor is AWB and outdoor ATW (Auto Tracking White Balance) where light temperature can alter considerably.
- Page 7 XCAM065 Traditional Wide Dynamic Camera with RS485 System Setting This option defaults to Manual on camera menu reset, so if you have a Direct Drive Lens fitted, you will need to change the setting to either DC-Indoor or DC-Outdoor. You also have settings for the Digital Zoom, RS485* used for changing the menu by your Alien DVR or PTZ keypad, Language, monitor type and displaying or suppressing camera icons.
-
Page 8: Technical Specifications
XCAM065 Traditional Wide Dynamic Camera with RS485 TECHNICAL SPECIFICATIONS FUNCTION CAMERA MODEL Camera Model CAM065 Imaging Sensor 1/3” SONY Super HAD CCD 11 Effective Pixels PAL:976(H)x582(V) Horizontal Resolution 700TVL Minimum Illumination 0.001Lux – 0Lux(with IR LEDs on) S/N Ratio More than 50dB Scanning System 2:1 Interlace Synchronous System...
