System Q NiteDevil CAM771 Manual

www.nitedevil.com

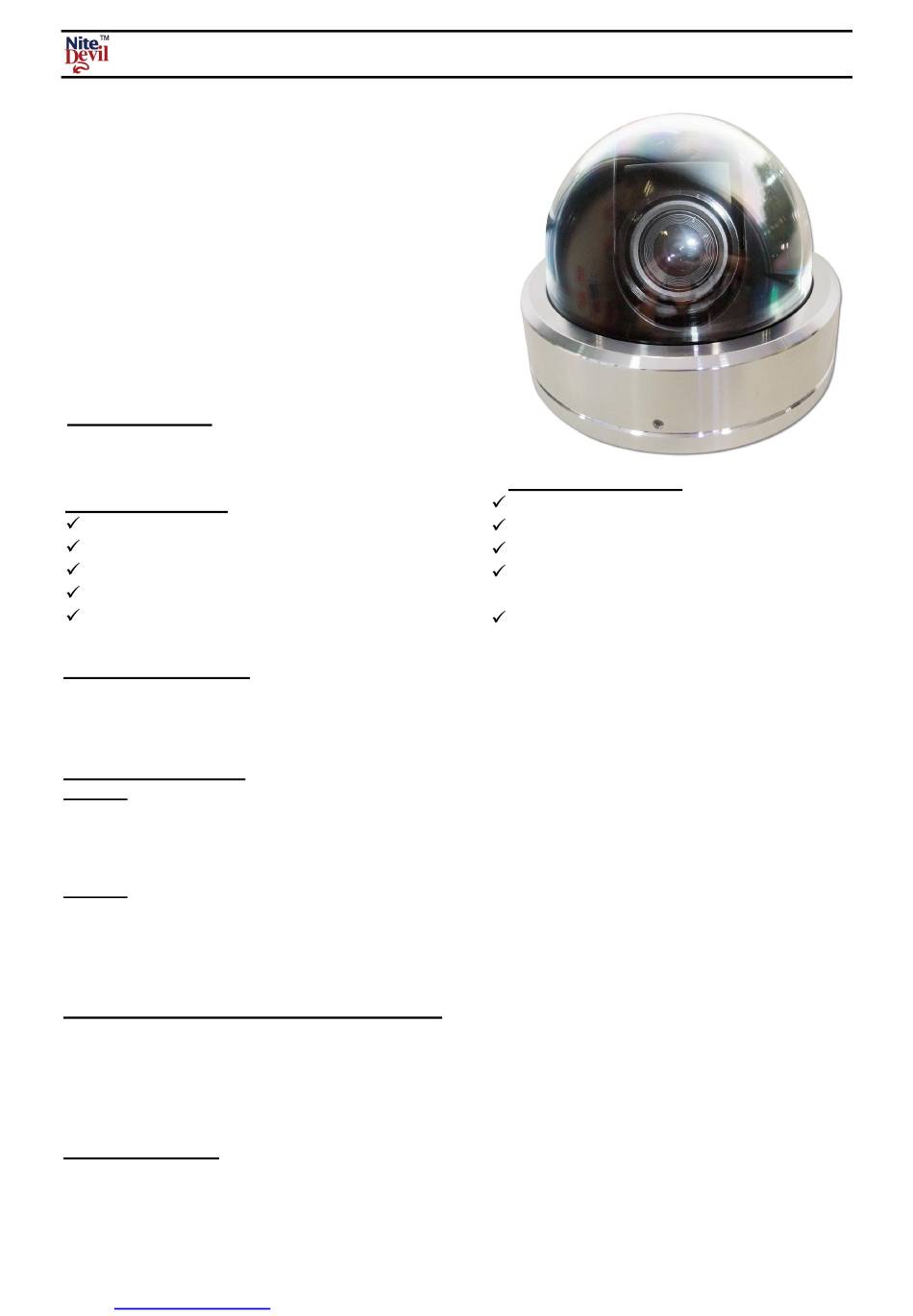

NiteDevil WDR Hi-Res Dome
The NiteDevil Dome Camera produces high
quality images and works in very low light
conditions down to 0.0008 Lux. It has many
features including a solid aluminium waterproof
base, 3D axis mounting inner bracket for wall
mounting, a SONY SuperHad CCD and a 2.8mm
~ 12mm varifocal lens. An OSD facility provides
options for wide dynamic, High Sensitivity BLC,
motion detection, privacy masking and other
camera functions.
Models Available
CAM771 600TVL, 12VDC
CAM772 600TVL, 12VDC/24VAC
Electronic Features
x
1/3" SONY SUPER HAD CCD II
Low illumination down to 0.0008 Lux
Menu for Motion Detection & camera setup
Wide Dynamic Range Function.
High Sensitivity Backlight Compensation
Mounting the Camera
The camera is for mounting on a wall, ceiling or outdoor facia board. Note that this camera has a 3D gimble allowing
wall mounting or ceiling mounting. Note that fitting the screws into a ceiling will require support for the screws. N.B
Please be aware that when refitting camera, the dome cowling does not obscure the lens.
Powering the Camera
CAM771
The dome requires a 12V DC regulated power supply. Connections are polarity sensitive so therefore ensure that the
positive and negative cables are connected correctly. The camera is provided with a fly lead with a 2.1 jack connector
for power. This camera draws a maximum of 130mA at 12v DC. Ensure that a regulated power supply is used if using
12vDC and allow adequate headroom i.e only use a power supply with a minimum rating of 200mA.
CAM772
This dome is dual voltage. It will work on 12vDC or 24vAC. Connections are not polarity sensitive so therefore power
connections can be either way round. The camera is provided with a fly lead with a 2.1 jack connector for power. This
camera draws a maximum of 130mA at 12v DC or 90mA at 24vAC. Ensure that a regulated power supply is used if
using 12vDC and allow adequate headroom i.e only use a power supply with a minimum rating of 200mA.
Connecting the camera to control equipment.
The dome camera comes with a fly lead for video out. To reduce installation time the video out lead is terminated into
a male BNC connector. This allows the installer to effortlessly connect the camera to control equipment via a female
BNC-BNC lead. A special setup joystick controller is located on the side of the PCB board and this allows access to
the OSD menu. A special socket is located to the right of the joystick controller to connect an optional test video
monitor lead.
RS485 Connection
The RS485 connection allows access to the menu using a keyboard or DVR PTZ operation using a 95 call to open
menu and select options using near, far, open and closed. Red needs to be connected to Transmit + and Black to
Transmit -.
Email: support@nitedevil.com
NiteDevil Hi-Res External Colour Dome Camera
MMechanical Features
Vandalproof & Weatherproof
3 Axis 3D built-in bracket
Vari-focal 2.8 ~ 12mm Auto DC Iris Lens
Aluminium housing with Polycarbonate
Smoked Cover
Two Allen screws to stop tampering
Last Revised: 10/09/2011
Doc XCAM771
