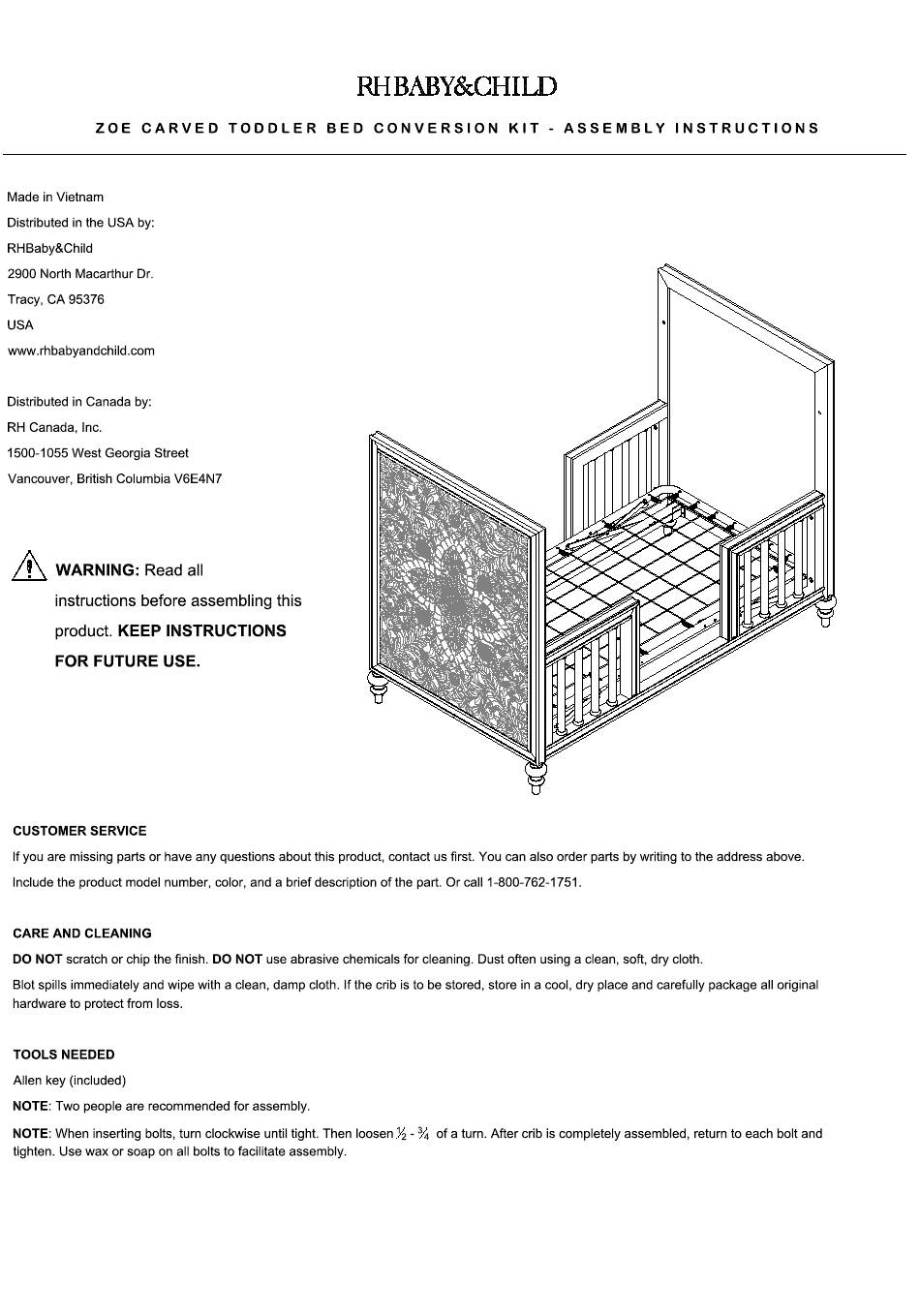

- Page 1 1 1 /...
- Page 2 IMPORTANT SAFETY INFORMATION FOR TODDLER & DAY BEDS WARNING: ENTRAPMENT / STRANGULATION HAZARD Infants have died in toddler beds from entrapment and strangulation. Failure to follow these warnings and the assembly instructions could result in serious injury or death. NEVER use bed with children under 15 months. NEVER place bed near windows where cords from blinds or drapes may strangle a child.
- Page 3 WARNING: ADULT ASSEMBLY ONLY, OWING TO THE PRESENCE OF SMALL PARTS, SHARP POINTS AND EDGES. CAUTION TODDLER BED: THE MINIMUM AGE SHALL NOT BE LESS THAN 15 MONTHS AND THE MAXIMUM WEIGHT SHALL NOT BE GREATER THAN 50LBS. (22.7 KG). THE MATTRESS INTENDED FOR USE ON THE BED SHALL BE A FULL-SIZE CRIB MATTRESS HAVING MINIMUM DIMENSIONS OF 51-5/8 IN.
- Page 4 ASSEMBLY INSTRUCTIONS STEP #1 RAIL FRAME DISASSEMBLY STEP #1.1 Remove the rail frames of the crib by loosening all the bolts DETAIL A installed as well as the mattress support. Please see DETAIL A. STEP #1.2 Gently tilt the crib and release the bolts underneath the metal brackets holding the stabilizer rails as in DETAIL B.

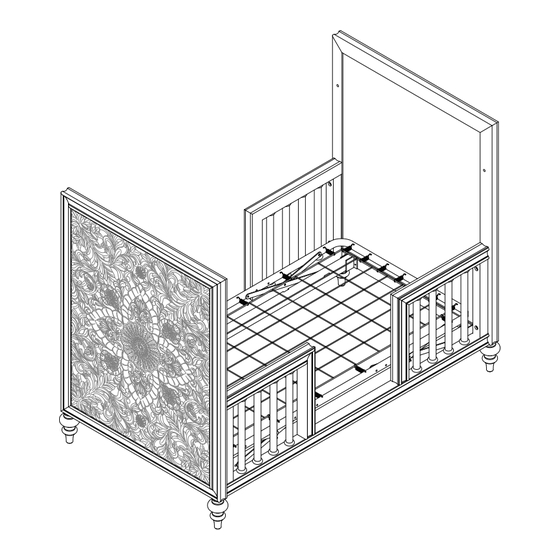

- Page 5 STEP #2. TODDLER RAIL ASSEMBLY. STEP #2.1 DETAIL C Bring the side panels and the rail frame to upright position. (AA) NOTE: At both ends of the rail frame are holes for the bolt to pass through that correspond to the hole on both ends of the side panel with pre-installed insert nut.
- Page 6 STEP #3 MATTRESS SUPPORT HEIGHT ADJUSTMENT DETAIL E NOTE: If mattress supports is not in the lowest position. STEP #3.1 Loosen and remove all hardware (BB) on both sides of the frame of mattress support. STEP #3.2 Re-install the bolt on the third hole of the frame through the hole on the arm support.
- Page 7 STEP #4 INSTALLATION OF STABILIZER RAILS INTO THE SIDE PANEL DETAIL G STEP #4.1 On inside face of both side rail panels are pre-installed metal brackets, designed to hold the stabilizer rails. Set both ends of the stabilizer rails into brackets, as illustrated in DETAIL G. STEP #4.2 Once the stabilizer rails are set, gently tilt the toddler bed and fasten the stabilizer rails with bolt, plain washer and lock...
