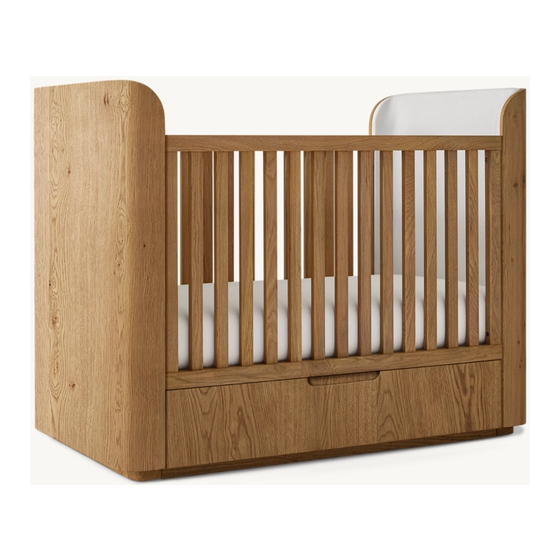

Made in Vietnam
Distributed in the USA by:
RH Baby&Child
2900 North Macarthur Dr.
Tracy, CA 95376
USA
www.rhbabyandchild.com
Distributed in Canada by:
RH Canada, Inc.
1500-1055 West Georgia Street
Vancouver, British Columbia V6E4N7
WARNING: Read all
instructions before assembling this
product. KEEP INSTRUCTIONS
FOR FUTURE USE.
CUSTOMER SERVICE
If you are missing parts or have any questions about this product, contact us first. You can also order parts by writing to the address above.
Include the product model number, color, and a brief description of the part. Or call 1-800-762-1005.
CARE AND CLEANING
DO NOT scratch or chip the finish. DO NOT use abrasive chemicals for cleaning. Dust often using a clean, soft, dry cloth.
Blot spills immediately and wipe with a clean, damp cloth. If the crib is to be stored, store in a cool, dry place and carefully package all original
hardware to protect from loss.
TOOLS NEEDED
Allen Wrench (included)
NOTE: Two people are recommended for assembly.
NOTE: When inserting bolts, turn clockwise until tight. Then loosen
tighten. Use wax or soap on all bolts to facilitate assembly.
1
3
-
of a turn. After crib is completely assembled, return to each bolt and
2
4
1/14
Advertisement
Related Manuals for RH Baby&child MADERO
Summary of Contents for RH Baby&child MADERO

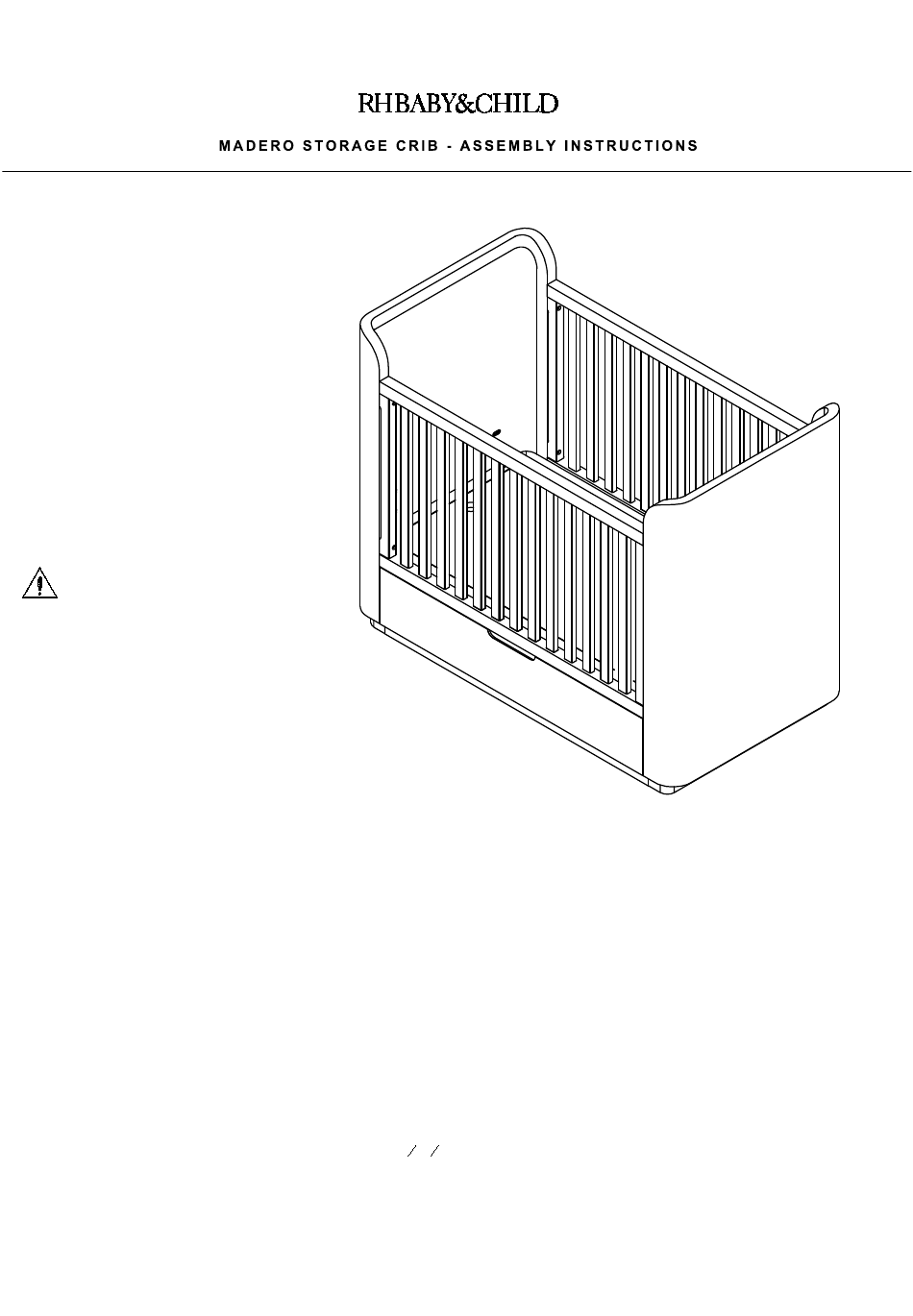

- Page 1 Made in Vietnam Distributed in the USA by: RH Baby&Child 2900 North Macarthur Dr. Tracy, CA 95376 www.rhbabyandchild.com Distributed in Canada by: RH Canada, Inc. 1500-1055 West Georgia Street Vancouver, British Columbia V6E4N7 WARNING: Read all instructions before assembling this product.
- Page 2 IMPORTANT SAFETY INFORMATION FOR CRIBS WARNING: Infants can suffocate on soft bedding. Never add a pillow or comforter. Never place additional padding under an infant. WARNING: Failure to follow these warnings and the assembly instructions could result in serious injury or death. ·...
- Page 3 IMPORTANT SAFETY INFORMATION FOR CRIBS CAUTION: ANY MATTRESS USED IN THIS CRIB SHOULD BE AT LEAST 27 1/4" X 51 5/8" WITH A THICKNESS NOT EXCEEDING 6". WARNING Do not use this crib if you cannot follow the instructions exactly as provided.
- Page 4 IMPORTANT SAFETY INFORMATION FOR TODDLER BEDS AND DAYBEDS WARNING: ENTRAPMENT / STRANGULATION HAZARD Infants have died in toddler beds from entrapment and strangulation. Failure to follow these warnings and the assembly instructions could result in serious injury or death. NEVER use a toddler bed or daybed with children under 15 months of age.
-
Page 5: Item Identification
ITEM IDENTIFICATION For ease of identification, all parts are labeled to correspond to the step number in which the part is used. Step 1 Fully remove the drawers and dust panel of the storage End panels and storage assembly (Page 6) Step 2 Install the dust panel and drawers (Page 7) Step 3 Mattress support assembly (Page 8) Step 4 Side rails assembly (Page 9) - Page 6 STEP 1 FULLY REMOVE THE DRAWERS AND DUST PANEL OF THE STORAGE END PANELS AND STORAGE ASSEMBLY STEP 1.1 Fully remove all the drawers out of the storage. Please see detail on page 12 to remove drawers. See DETAIL STEP 1.2 DETAIL A Loosen all bolts on the dust panel and fully remove the dust panel from storage.
- Page 7 STEP 2 INSTALL THE DUST PANEL AND DRAWERS STEP 2.1 Install the bottom panel on the back bottom of the crib. See DETAIL D. STEP 2.2 Once the stabilizer rails are set, gently tilt the crib up as illustrated in DETAIL E. STEP 1.3 Return the drawers to the storage by following step on pages 13 and 14.
- Page 8 STEP 3 MATTRESS SUPPORT ASSEMBLY STEP 3.1 Insert the L-shaped pins into the end panels. See DETAIL G. STEP 3.2 Place the mattress support on the L-shaped pins, making sure the threaded ends go through the holes on the mattress support, as shown DETAIL H.
- Page 9 STEP 4 SIDE RAILS ASSEMBLY On both ends of the side rail are holes for the bolts to pass through, which correspond to the holes on the posts for both end panels with pre-installed nuts. Attach the side rail to the end panels by using Allen bolts (AA) with lock washers and plain washers.
- Page 10 STEP 5 HIDE UNUSED HOLES When the mattress support is in middle or lowest setting, unused holes can hurt your child's fingers. Use Allen bolts (BB) provided to hide these holes. See illustration in DETAIL J. DETAIL J (BB) HARDWARE NEEDED FOR STEP 5 (BB) 1/4"...
- Page 11 STEP 6 TODDLER RAIL ASSEMBLY STEP 6.1 DETAIL K Loosen all the bolts in both ends of the front side rail to disassemble the front side rail. STEP 6.2 Replace the front side rail with the toddler rail. See DETAIL K. After assembly, re-tighten all bolts to a snug fit.
- Page 12 STEP 7 DRAWER REMOVAL INSTRUCTIONS STEP 7.1 Pull the drawer out. See at bottom side of drawer. Unlock the plastic peg by pulling black plastic peg on runner out. See DETAIL M. STEP 7.2 Hold the drawer with both your hands. Carefully lift the drawer front up from the front metal pin, then slide drawer forward to remove from back hooks.
- Page 13 STEP 8 DRAWER ASSEMBLY INSTRUCTIONS STEP 8.1 Pull the runners all the way out. Put DETAIL O the drawer onto them, then hold both the runners with your hands. Lift the drawer up with your thumbs and push to hook the drawer at end of the runner.
- Page 14 STEP 9 DRAWER HEIGHT ADJUSTMENT INSTRUCTIONS Adjust around gap of drawer by turning plastic button clockwise/counterclockwise. See DETAIL R. DETAIL R Plastic button 14/14...
