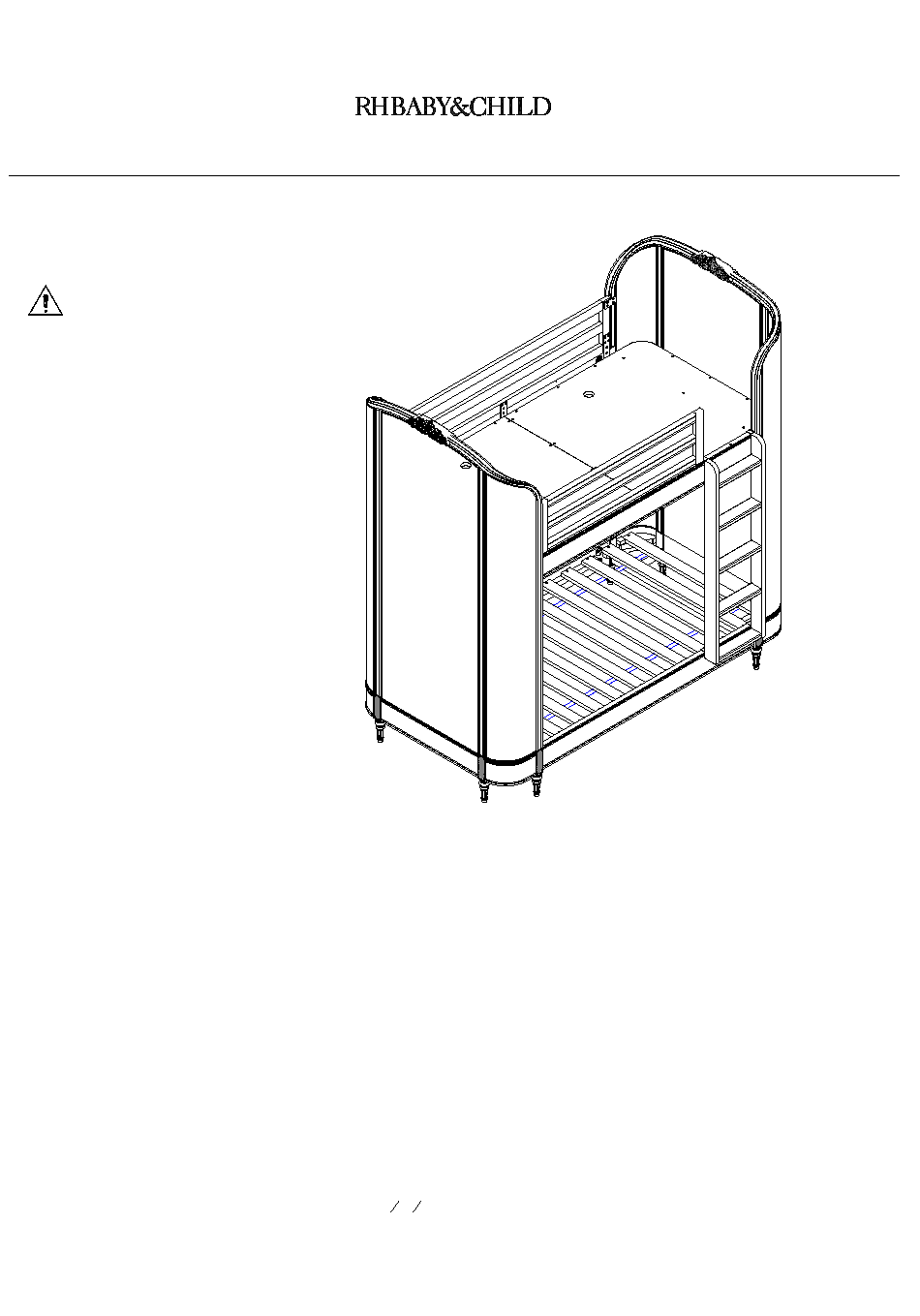

A V E L I N E B U N K B E D , F U L L O V E R F U L L - A S S E M B L Y I N S T R U C T I O N S
WARNING: Read all instructions
before assembling this product.
KEEP INSTRUCTIONS FOR
FUTURE USE.
CUSTOMER SERVICE
If you are missing parts or have any questions about this product, contact us first. You can also order parts by writing to the address above. Include the
product model number, color, and a brief description of the part.
Call 1-800-762-1751.
CARE AND CLEANING
DO NOT scratch or chip the finish. DO NOT use abrasive chemicals for cleaning. Dust often using a clean, soft, dry cloth. Blot spills immediately and wipe
with a clean damp cloth. If the crib is to be stored, store in a cool dry place and carefully package all original hardware to protect from loss.
TOOLS AND INSTALLATION
Tools Necessary: Allen key (included)
Wrench (included)
Screwdriver (not included)
Note: It may be easier to assemble product with two people.
NOTE: When inserting bolts, turn clockwise until tight. Then loosen
wax or soap on all bolts to facilitate assembly.
1
3
-
of a turn. After bunks is completely assembled, return to each bolt and tighten. Use
2
4
1 8 /
