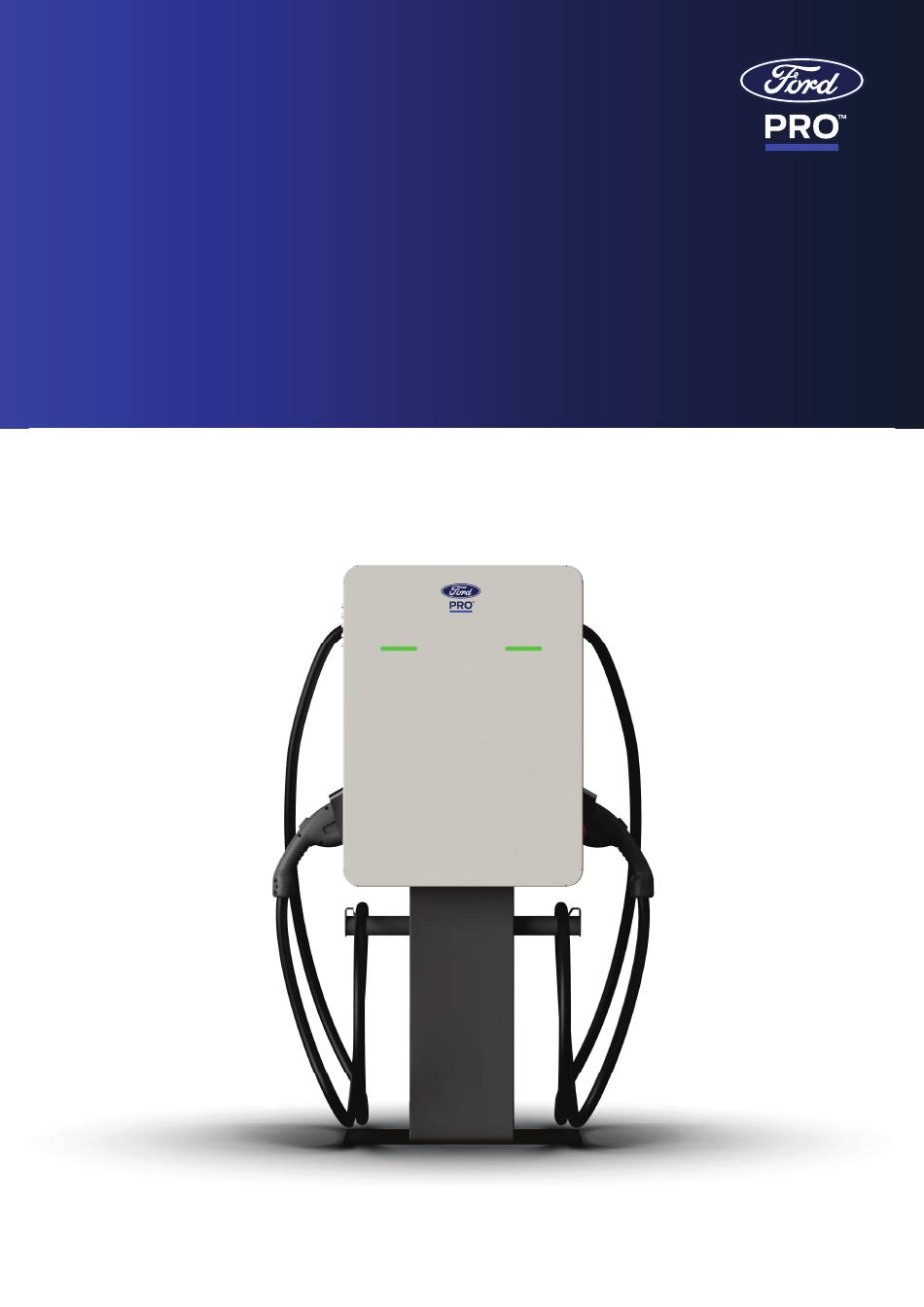

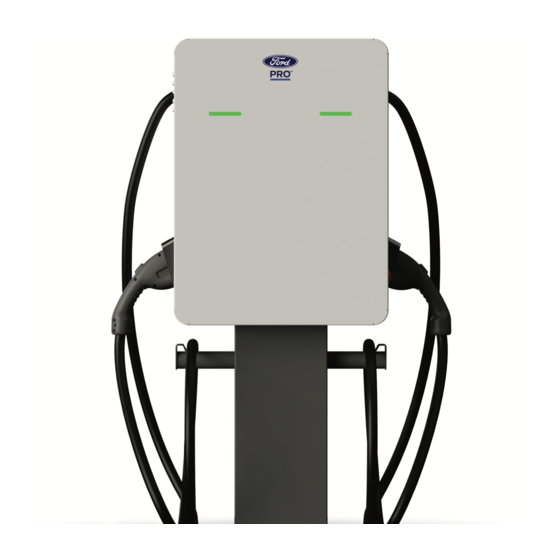

  • Page 1 ™ Ford Pro Industrial DC Dispenser Installation Manual Revision 1.5...
  • Page 2 • Soil compaction degree of 98%. • Maximum land unevenness of 0.25%. • It must not be a direct place of passage so that the load cables do not interrupt the movement of pedestrians or tra c. Ford Pro contact info: chargingsupport@fordpro.com and 1-800-34-FLEET...
  • Page 3 !*The transverse side of the reinforcement must be able to withstand forces of up to 10 kN. Note that the thickness of the slab must be determined from the results of the geotechnical study. See anchor recommendations at the "Anchoring of the equipment" section. !)" Ford Pro contact info: chargingsupport@fordpro.com and 1-800-34-FLEET ,)/,*)*($-!#7-)#$!'(*++$!V#(D/#/T&$,O/!(#...
  • Page 4 The distance between the power cabinet and the industrial post cannot exceed 80 m (262.46 ft) with Ethernet communication or 150 m (492.13 ft) with the optical fiber communication, as optional. #+" Ford Pro contact info: chargingsupport@fordpro.com and 1-800-34-FLEET ,)/,*)*($-!#7-)#$!'(*++$!V#(D/#/T&$,O/!(#...
  • Page 5 The hose range depends on the length selected by the customer; the standard hose is 4 m (13.12 ft), but other options are available. The following figures show an example of the cable range area in a parking lot with the centralized post: #*" Ford Pro contact info: chargingsupport@fordpro.com and 1-800-34-FLEET ,)/,*)*($-!#7-)#$!'(*++$!V#(D/#/T&$,O/!(#...
  • Page 6 The following figure shows the location of the anchorage holes in the pedestal (bottom view). Values are summarized in the table below. PEDESTAL DIMENSIONS IØ 240, 1.18 10.62 9.47 5.51 3.14 4.33 4.33 #!" Ford Pro contact info: chargingsupport@fordpro.com and 1-800-34-FLEET ,)/,*)*($-!#7-)#$!'(*++$!V#(D/#/T&$,O/!(#...
  • Page 7 M6 (1/4”) A4- 70 stainless screws will be used for fixation to the wall. The figure below shows the cabinet (rear view) with the location of the fixing bracket once installed and of the two additional holes. ##" Ford Pro contact info: chargingsupport@fordpro.com and 1-800-34-FLEET ,)/,*)*($-!#7-)#$!'(*++$!V#(D/#/T&$,O/!(#...
  • Page 8 2.56 18.50 2.05 25.43 Ventilation system CAUTION Special care must be taken to ensure that there are no external elements near the air inlets and outlets that prevent proper ventilation of the equipment. #$" Ford Pro contact info: chargingsupport@fordpro.com and 1-800-34-FLEET ,)/,*)*($-!#7-)#$!'(*++$!V#(D/#/T&$,O/!(#...
