Page 1: Ford Customer Support

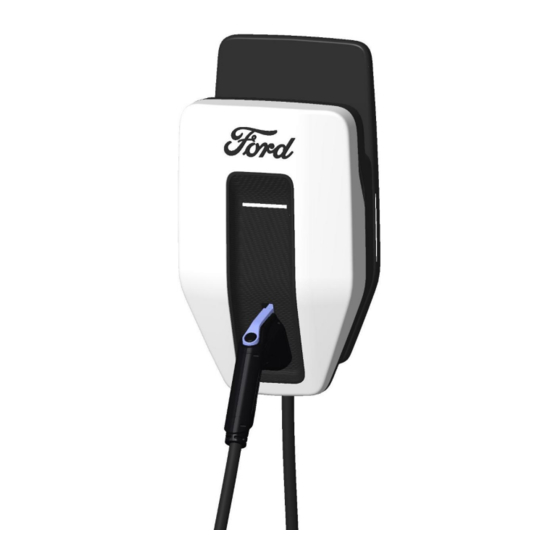

Ford Charge Station Pro Installation Guide 80 AMP WALLBOX Electric Vehicle Charging Station Ford Customer Support In the US: Call 1 (800) 392-3673 Ford Customer Support In Canada: Call 1 (800) 565-3673 Wi-Fi Password R817945 R07 NLNL38-10C823-AA... -
Page 2: Ford Station Pro Dimensions
P a g e Ford Station Pro Dimensions... -
Page 3: Important Safety Instructions
P a g e Important Safety Instructions a) SAVE THESE INSTRUCTIONS- This manual contains important instructions for model NL38-10C823-AA that shall be followed during installation, operation and maintenance b) Wiring information Wire Size Torque Terminal Amperage AWG, 90°C in-lbs. (Nm) A/L1, B/L2[N] 60 in-lbs. -
Page 4: Table Of Contents
Table of Contents Table of Contents Ford Customer Support ................................1 Wi-Fi Password ..................................1 Ford Station Pro Dimensions ..............................2 Important Safety Instructions ..............................3 Table of Contents ..................................4 Installation Method Checklist ..............................5 Supplied Equipment ................................6 Equipment List –... -
Page 5: Installation Method Checklist
P a g e Installation Method Checklist Installation Method Checklist DO NOT DRILL ANY HOLES IN CHARGER UNTIL METHOD IS DETERMINED Minimum 100 Amp Service Available for Standard 80 Amp Installation If Customer does not have 100 Amp available, refer to Amp Setting Switch to adjust Charger Amperage (Listed in Table of Contents) Standard Mounting to Interior Stud Wall (Hardware Included) Exterior Mounting to Non-Standard Wall (Concrete, Brick, Non-wood surfaces) -
Page 6: Supplied Equipment
P a g e Supplied Equipment Equipment 1 – 80A Charger 1 – Mounting Bracket Hardware Kit 2 – 3/8” x 2-1/2” LG Flange Hex Head Lag Bolts 6 – (T20) Torx-head Dog Point Screws – M4 x 0.7 x 16 mm (2 extra) 1 –... -
Page 7: Open Charger - Prepare The Charger For Mounting
P a g e Open Charger – Prepare the Charger for Mounting QTY KIT ITEM OPEN CHARGER COVER (T-20) Torx-head Dog Point Screws – The unit can be left in box to protect from any M4 x 0.7 x 16 mm scratches or debris. -
Page 8: Mount Bracket
P a g e Mount Bracket MOUNT BRACKET TO WALL QTY KIT ITEM MOUNTING BRACKET Locate Stud with Stud Finder 3/8” X 2-1/2” HEX LAG BOLT Verify Gang Box is installed on right side of stud. TOOLS NEEDED Top Bracket hole should be between 35-60” from floor. STUD FINDER See page 2 dimensional graphic. -
Page 9: Mount Charger Base To Wall Bracket
P a g e Mount Charger Base to Wall Bracket Mount Charger Base to Wall Bracket MOUNT CHARGER BASE TO WALL BRACKET QTY KIT ITEM Torx-head Screws – M4 x 0.7 x 16 mm Slide the base onto the interlocking T-feature and align unit TOOLS NEEDED with base. -
Page 10: Hvdc Wiring - Left Entry
P a g e | 10 HVDC Wiring – Left Entry DANGER Hazardous voltage. Will cause death or serious injury. Turn off power before working on this equipment. This indicates a situation where the present voltage could cause injury or death. Extreme caution is required when servicing or installing the equipment referenced. -
Page 11: Hvdc Wiring - Right Entry
P a g e | 11 HVDC Wiring – Right Entry DANGER Hazardous voltage. Will cause death or serious injury. Turn off power before working on this equipment. This indicates a situation where the present voltage could cause injury or death. Extreme caution is required when servicing or installing the equipment referenced. -
Page 12: Standard Wiring - Residential Installation - Rear Entry
P a g e | 12 Standard Wiring – Residential Installation – Rear Entry DANGER Hazardous voltage. Will cause death or serious injury. Turn off power before working on this equipment. This indicates a situation where the present voltage could cause injury or death. Extreme caution is required when servicing or installing the equipment referenced. -
Page 13: Alternate Wiring - Residential Installation - Left Entry
P a g e | 13 Alternate Wiring – Residential Installation – Left Entry DANGER Hazardous voltage. Will cause death or serious injury. Turn off power before working on this equipment. This indicates a situation where the present voltage could cause injury or death. Extreme caution is required when servicing or installing the equipment referenced. -
Page 14: Alternate Wiring - Residential Installation - Right Entry
P a g e | 14 Alternate Wiring – Residential Installation – Right Entry DANGER Hazardous voltage. Will cause death or serious injury. Turn off power before working on this equipment. This indicates a situation where the present voltage could cause injury or death. Extreme caution is required when servicing or installing the equipment referenced. -
Page 15: Set Maximum Current Switch
P a g e | 15 Set Maximum Current Switch DANGER Hazardous voltage. Will cause death or serious injury. Turn off power before working on this equipment. This indicates a situation where the present voltage could cause injury or death. Extreme caution is required when servicing or installing the equipment referenced. -
Page 16: Close The Charger
Carefully Align the decorative cover with the Structural Cover and firmly press the decorative cover in place ensuring that all snaps are fully seated Download “Ford Charge Station Pro App” and “Ford Pass” Replace (9) screws to attach Structural Cover... -
Page 17: Operating Instructions
P a g e | 17 Operating Instructions Safety Instructions During the Charging Process • Do not kink or squeeze the charging cable. Do not draw the charging cable over sharp edges or hot surfaces • Do not use the charging station if damage or tampering is visible. If damage is visible, Inform the operator. Until damage is repaired, keep away from the charging station and do not attempt to charge an EV. -
Page 18: Led Status
If present, remove debris and/or notify the Ford of any damage. Check the connector/plug pins for any signs of corrosion and contact Ford, if there is any damage to the pins. Check for Snow/Ice buildup around the unit and clear the area around the unit. This should be checked daily in areas with high snowfall. -
Page 19: Appendix A - Conduit Drilling Template (Compatible With Suggested Gland/Conduit Configurations)
P a g e | 19 Appendix A – Conduit Drilling Template (Compatible with suggested gland/conduit configurations) - Page 20 P a g e | 20...
- Page 21 Ford Charge Station Pro – Technical data Features and Functions Charging Mode Level 2 Vehicle Connection J1772 CCS Combo 1 plug with 25 ft cable, 80 A / integrated cable management AC Power Output Up to 19.2 kW (240VAC@80A) - Requires a 100A breaker...
- Page 22 Legal Manufacturer Siemens Industry, Inc. 3617 Parkway Ln Peachtree Corners, GA 30092 United States of America Telephone: +1 (800) 333-7421 recharge.us@siemens.com © 01.2022, Siemens Industry, Inc. This document contains a general description of available technical options only, and its effectiveness will be subject to specific variables including field conditions and project parameters.
- Page 23 Intelligent Backup Power allows you to provide power to your home from your vehicle battery during power outages. In addition to this Ford Charge Station Pro a Home Integration System is required to operate Intelligent Backup Power. To learn more about Intelligent Backup Power visit Ford.com/connected.
