E+E Elektronik EE871 User Manual

USER GUIDE
EE871 – CO Sensing Probe for the EE240 Wireless Sensor Network
2

GENERAL

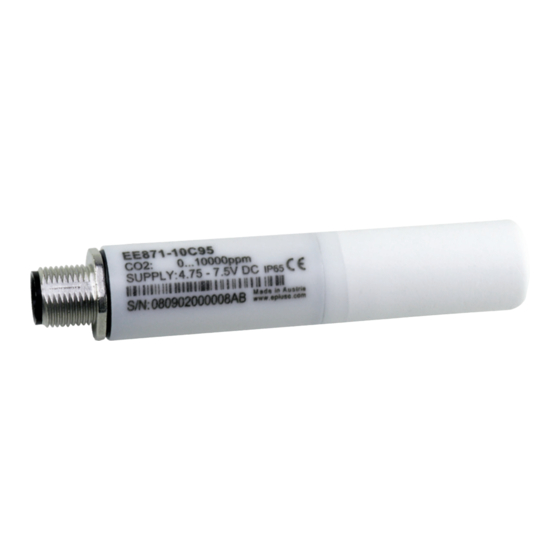

The E+E CO probe EE871 is designed for use in harsh, demanding applications. It incorporates the dual wavelength NDIR CO
2
sensor, which compensates for ageing effects, is highly insensitive to pollution and stands for outstanding long term stability.
A multiple point CO
temperature working range.
The measured data range of up to 10 000 ppm CO
For use in special applications do not hesitate to contact E+E Elektronik or a local distributor.
CAUTION
• The device shall not be exposed to extreme mechanical stress. The sensing head and mostly the sensing cell might not be
exposed to any mechanical stress.
• The device must be operated with the filter cap on at all times. Do not touch the sensing cell or electronics inside the sensing
head.
• A long response time indicates a dirty filter cap, as it might happen in polluted applications. Do not attempt to clean the filter
cap; it would only cause its clogging. Replace the filter cap by an E+E original one, order no. HA010116.
• While replacing the filter cap take utmost care to not touch the sensing cell and the electronics.
• This device is not appropriate for safety, emergency stop or other critical applications where device malfunction or failure
could cause injury to human beings.

CONNECTION DIAGRAM

Important note:
The manufacturer cannot be held responsible for personal injuries or damage to property as a result of incorrect
handling, installation, wiring, power supply and maintenance of the device.
E2
1... GND
2... +UB
3... DATA
4... CLOCK
and temperature factory adjustment leads to excellent CO
2
E2
GND brown
+UB white
DATA blue
CLOCK black
Shielding grey
is available on E2 digital interface.
2
96
M12x1
Weight: 30 g
(1.06 oz)
measurement accuracy over the entire
2
CO Sensing cell
2

DIMENSIONS

(3.78)
2
mm (inch)
