E+E Elektronik EE872 User Manual

E+E Elektronik EE872 User Manual

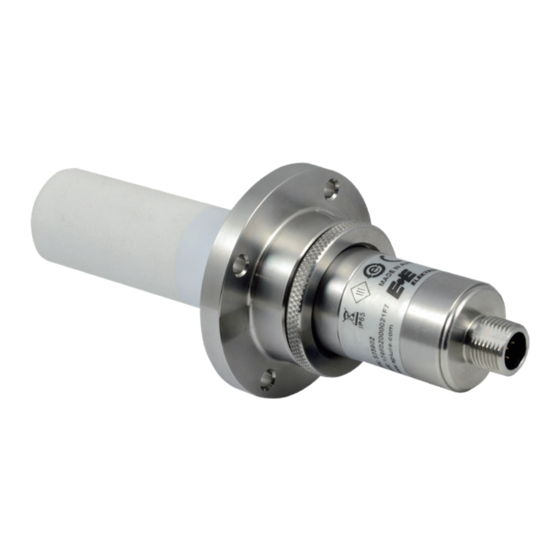

Modular probe for co2, rh, t and p
Hide thumbs Also See for EE872:

Advertisement

Quick Links

User Manual
EE872
Modular Probe for CO
, RH, T and p
2
BA_EE872 // V1.3 // Modification rights reserved

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EE872 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for E+E Elektronik EE872

  • Page 1 User Manual EE872 Modular Probe for CO , RH, T and p BA_EE872 // V1.3 // Modification rights reserved...
  • Page 2 E+E Elektronik Ges.m.b.H. does not accept warranty and liability claims neither upon this publication nor in case of improper treatment of the described products. The document may contain technical inaccuracies and typographical errors. The content will be revised on a regular basis.
  • Page 3: Table Of Contents

    Error Indication on the Analogue Output (NAMUR) ..................10 Maintenance ............................11 Replacing the Sensing Module EE872S .....................11 Changing the Filter Cap ..........................11 EE872 Adjustment or Calibration with Reference CO Gas ................11 Protection of EE872 During Site Cleaning Application ................12 Accessories ............................12 Spare Parts ............................12 Technical Data ..........................13...
  • Page 4: General

    • Installation, electrical connection, maintenance and commissioning shall be performed by qualified personnel only. • Use the EE872 only as intended and observe all technical specs. The device must be operated with the filter cap on at all times. • This device is not appropriate for safety, emergency stop or other critical applications where device malfunction or failure could cause injury to human beings.
  • Page 5: Mounting, Start-Up And Operation

    • Test report according to DIN EN10204-2.2 • Quick User Guide Product Description Operation Principle The EE872 is available in two versions: EE872-M10...: The probe measures the CO concentration. The sensing module is heated by factory default setting to prevent condensation. The CO measurement value is available on the analogue output or on the digital interface.
  • Page 6: Dimensions

    A RS485 (D+) or current output black Configuration pin gray Power supply 10 - 35 V DC Fig. 3 Pin and flying leads assignment The supply circuit must be fused with ≤ 8A User Manual EE872 Modular Probe for CO , RH, T and p...
  • Page 7: Hardware Selection Between Analogue Output And Rs485 Interface With Modbus Rtu Or Bacnet Ms/Tp

    Best measurement performance is achieved when the entire probe is located inside the environment to be monitored. This is the case, for example, when the EE872 is fixed onto a wall with the mounting clip HA010227 (not included in the scope of supply, see data sheet “Accessories”), or freely hangs from the ceiling on the connection cable.
  • Page 8: Setup And Adjustment

    Setup and Adjustment The EE872 is ready to use and does not require any configuration by the user. The factory setup of EE872 corresponds to the type number ordered. Please see chapter 3.1 for a model overview and the data sheet at www.epluse.com/EE872. The user can change the factory setup by using the Modbus configuration adapter (order code HA011018) and the PCS10 Product Configuration Software.
  • Page 9: Modbus Rtu Protocol Settings

    0x09 1) Register number starts from 1. 2) Protocol address starts from 0. 3) For Modbus protocol settings see Application Note Modbus AN0103 (available on www.epluse.com/EE872). 5.2.3 Modbus Register Map The measured data is saved as 32 bit floating point values (data type FLOAT) and as 16 bit signed integer...
  • Page 10: Modbus Reading Example

    See also Application Note AN0103 at www.epluse.com/EE872. Error Indication on the Analogue Output (NAMUR) The EE872 features an error indication on the analogue output according to the NAMUR NE 043 recommendations (Standardization of the Signal Level for the Failure Information of Digital Transmitters, Edition 2003-02-03, see www.namur.net/en/recommendations-and-worksheets/current-nena.html).
  • Page 11: Maintenance

    EE872 probe! If the measuring range of the replacement module and of the original EE872 probe are different, the analogue output will stay at 4 mA, 0 V or NAMUR error indication while the CO reading via RS485 interface will be 0 ppm.
  • Page 12: Protection Of Ee872 During Site Cleaning Application

    0...1 % (10 000 ppm) 0...3 % (30 000 ppm) 0...5 % (50 000 ppm) 1) The CO range of the EE872S must be the same as of the original EE872 probe. User Manual EE872 Modular Probe for CO , RH, T and p...
  • Page 13: Technical Data

    3) At 24 V DC supply, air flow min. 0.3 m/s, probe horizontal or with sensing head downwards, excl. hysteresis. 4) More details about communication setting and the Modbus map: See User Manual and Modbus Application Note at www.epluse.com/EE872. 5) USA & Canada class 2 supply required, max. supply voltage 30 V DC...
  • Page 14 HEADQUARTERS SUBSIDIARIES E+E Elektronik Ges.m.b.H. E+E Elektronik China E+E Elektronik Germany E+E Elektronik Korea Langwiesen 7 18F, Kaidi Financial Building, Schöne Aussicht 8 C Suite 2001, Heungdeok IT 4209 Engerwitzdorf No.1088 XiangYin Road 61348 Bad Homburg Valley Towerdong, 13, Austria 200433 Shanghai Tel.:...
