Gathering Statistics

Monitoring the
Network
To monitor ethernet statistics on your 24-Port module, you must attach
the CoreBuilder 5000 Ethernet Network Monitor Card to the network
you wish to monitor. This card enables you to individually select and
monitor each backplane segment of your hub.
more detail on the location and installation of the card. For more
details on the installation, refer to the documentation that
accompanied the CoreBuilder 5000 Ethernet Network Monitor Card.

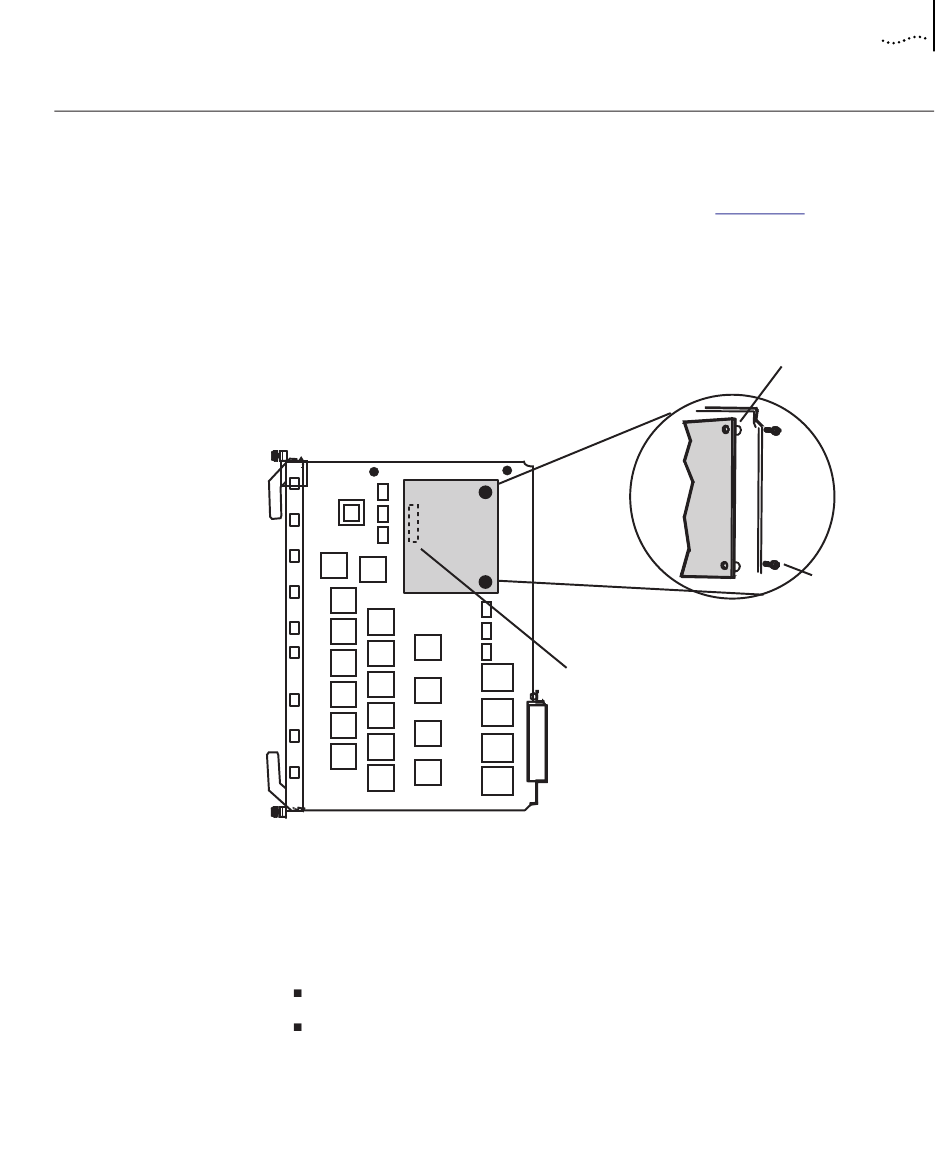

Figure 3-7

Attaching the CoreBuilder 5000 Ethernet Monitor Card

Once the monitor card is attached to the 24-Port module, it is possible
to monitor the network using the following commands:
Monitor
Show Counter
These commands are explained in more detail in the following sections.
Gathering Statistics
Figure 3-7
Connector
3-19
provides
Standoffs
Screws
