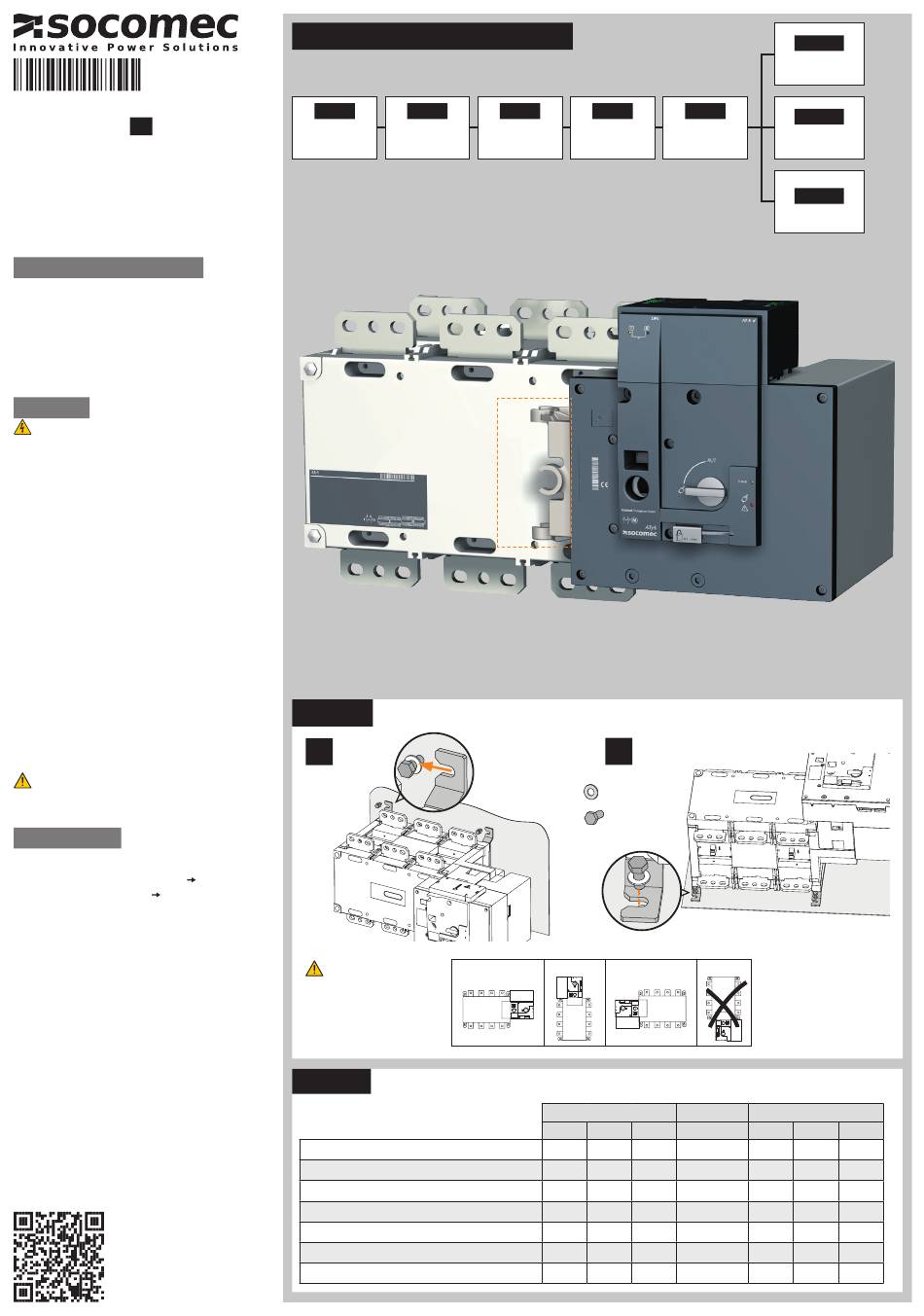

socomec ATyS d Installation And Commissioning

549636C
QUICK START 800 A - 3200 A
EN

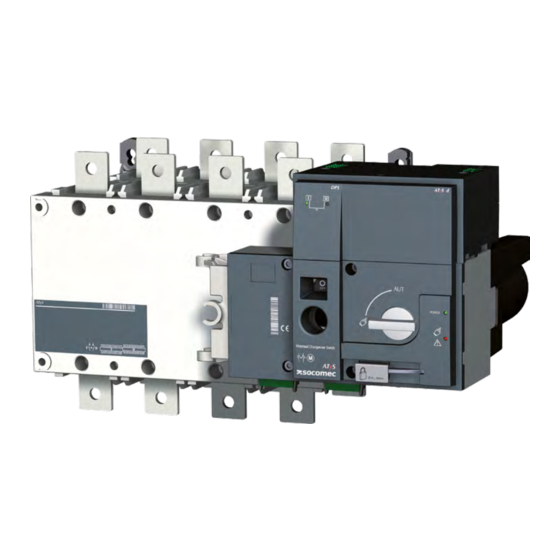

ATyS d
Motorised Source Changeover Switch
Preliminary operations
Check the following upon delivery and after removal of the
packaging:
- Packaging and contents are in good condition.
- The product reference corresponds to the order.
- Contents should include:
Qty 1 x ATyS d
Qty 1 x Emergency handle and fixing clip
Quick Start instruction sheet
Warning
Risk of electrocution, burns or injury to persons and /
or damage to equipment.
This Quick Start is intended for personnel trained in the
installation and commissioning of this product. For further
details refer to the product instruction manual available on
the SOCOMEC website.
• This product must always be installed and
commissioned by qualified and approved personnel.
• Maintenance and servicing operations should be
performed by trained and authorised personnel.
• Do not handle any control or power cables connected to
the product when voltage may be, or may become
present on the product, directly through the mains or
indirectly through external circuits.
• Always use an appropriate voltage detection device to
confirm the absence of voltage.
• Ensure that no metal objects are allowed to fall in the
cabinet (risk of electrical arcing).
- For 800 - 3200 A (Uimp = 12 kV). Terminations must respect
a minimum of 14 mm clearance from live parts to parts
intended to be earthed and between poles.
Failure to observe good enginering practises as well as to
follow these safety instructions may expose the user and
others to serious injury or death.
Risk of damaging the device
In case the product is dropped or damaged in any way it is
recommended to replace the complete product.
Accessories
• Bridging bars and connection kits.
• Control voltage transformer (400 VAC
• DC power supply (12/24 VDC 230 VAC).
• Phase barriers.
• Terminal shrouds.
• Terminal screens.
• Auxiliary contacts (Additional).
• Padlocking in 3 positions (I - O - II).
• Lockout accessories (RONIS - EL 11 AP).
• Door escutcheon frame.
• ATS controller ATyS C25.
• ATS controller ATyS C55 or C65.
• ATyS D10 Interface (remote display).
• RJ45 cable for ATyS D10.
For further details refer to the product instruction manual
under chapter "Spares and Accessories".
www.socomec.com
To download, brochures, catalogues
and technical manuals:
https://www.socomec.com/
operating-instructions_en.html
Installation and Commissioning
STEP 1
Cabinet / Back Plate
Installation
STEP 1
1
230 VAC).
Caution: ensure that the
product is installed on a
flat rigid surface.
STEP 2
To be connected using terminal lugs, rigid or flexable busbars.
Minimum cable section Cu (mm²)
Recommended cable section Cu (mm²)
Maximum Cu cable cross-section (mm²)
Maximum Cu busbar width (mm)
Type of screw
Recommended tightening torque (lb.in/N.m)
Maximum tightening torque (lb.in/N.m)
STEP 2 STEP 3
Connecting the COMMAND /
POWER section CONTROL terminal
connections
Clip for
storage of
the
emergency
handle
Installation
Recommended
orientation
Power Terminal Connections
800 A
2x185
2x50x5
4x185
73.46/8.3 73.46/8.3 177.02/20
115.06/13 115.06/13 230.13/26
STEP 4 STEP 5
Power SUPPLY CHECK
terminal
connections
2
M8 Type Z
M8
OK OK
FRAME B6 FRAME B7
1000 A 1250 A 1600 A
- - -
2x63x5 2x63x7 2x100x5
4x185 4x185 6x185
63 63 63 100
M8 M8 M10 M12
354.04/40
398.30/45
STEP 6A
Control by an external
order (AUTO)
STEP 6B
Emergency Manual
Operation
STEP 6C
Padlocking
FRAME B8
2000 A 2500 A 3200 A
- - -
3x100x5 2x100x10 3x100x10
- - -
100 100 100
M12 M12 M12
354.04/40 354.04/40 354.04/40
398.30/45 398.30/45 398.30/45
