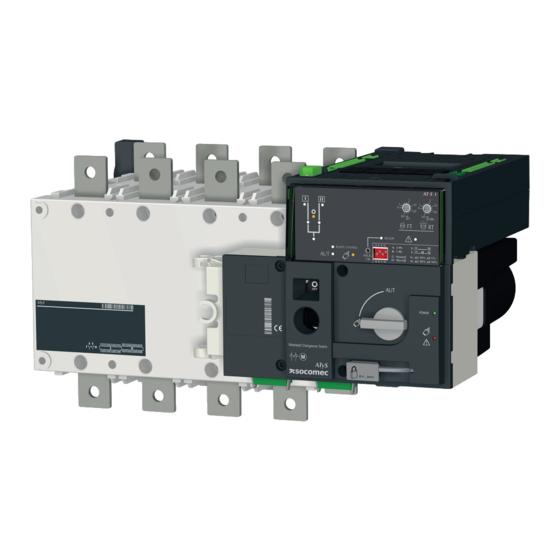

socomec ATyS t Instruction Manual

Automatic transfer switching equipment
Hide thumbs Also See for ATyS t:
Table of Contents

Advertisement

Quick Links

INSTRUCTION MANUAL
EN
ATyS t
Automatic Transfer Switching Equipment
www.socomec.com/en/documentation-atys-t

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ATyS t and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for socomec ATyS t

Summary of Contents for socomec ATyS t

  • Page 1 INSTRUCTION MANUAL ATyS t Automatic Transfer Switching Equipment www.socomec.com/en/documentation-atys-t...

  • Page 2: Table Of Contents

    6.3.10. ADDITIONAL AUXILIARY CONTACTS .........36 ATYS t - 541995C - SOCOMEC...
  • Page 3 12. TROUBLE SHOOTING GUIDE ......... . 62 ATYS t - 541995C - SOCOMEC...
  • Page 4 15. ATYS FAMILY: ORDERING INFORMATION ....... . 69 ATYS t - 541995C - SOCOMEC...
  • Page 5 ATYS t - 541995C - SOCOMEC...

  • Page 6: General Safety Instructions

    One must also refer to and respect markings on the product prior to installation and commissioning for values and limits specific to that product. • Using the product outside the intended scope, outside SOCOMEC recommendations or outside the specified ratings and limits can cause personal injury and/or damage to equipment.

  • Page 7: Introduction

    • Ample accessories to suit specific requirements. • Fully integrated ATS controller specifically designed for Mains / Genset Applications. • Power supply continuity for most network (transformer) applications... Mains / Mains Automatic transfert Switch ATyS t LOAD ATYS t - 541995C - SOCOMEC...

  • Page 8: The Atys Family Product Range

    3. THE ATYS FAMILY PRODUCT RANGE The ATyS t has been engineered by the SOCOMEC centre of excellence in France who boasts it’s very own in-house 100MVA instantaneous power test lab accredited by COFRAC and working in partnership with: KEMA, CEBEC, UL, CSA, ASTA, Lloyd’s Register of Shipping, Bureau Véritas, BBJ-SEP, EZU, GOST-R…...

  • Page 9: The Atys Range Key Features

    Peak shaving functionality • 4 - 20mA communication module (Optional) • KWh Pulsed output module (Optional) • Counters KWh, permutation… • LCD display for programming, metering, timers and counters • Possibility to add optional functionality ATYS t - 541995C - SOCOMEC...

  • Page 10: Quick Start

    - The product reference corresponds to the order emergency - Contents should include: handle Qty 1 x ATyS t Qty 1 x Emergency handle and fixing clip Quick Start instruction sheet Warning Risk of electrocution, burns or injury to persons and / or damage to equipment.
  • Page 11 10. O/P to ATyS D10 remote display Recommanded to use SOCOMEC Voltage Sensing Kit Connect the product with a cable of section of 1,5 to 2,5 mm (refer to ATyS t accessories for details) Screw M3 - Tightening torque: min.: 0.5 Nm - max.: 0.6 Nm / min.: 4.43 lbin - max.: 5.31 lbin...

  • Page 12: Quick Start Atys T Frame B3 To B5 (125 A To 630 A) Continued

    It is imperative that the network supply is available and that the settings have been saved by pressing the PROG OK button momentarily. wiring to the ATyS t voltage sensing terminals 103 – 106 and 203 – 206 has been done. It is ATyS t preferable to use the ATyS sensing kit that may be provided as an accessory.
  • Page 13 1.30 1.30 1.30 1.30 1.67 42,5 1.48 37,5 1.67 42,5 1.48 37,5 Non contractual document. CORPORATE HQ CONTACT: SOCOMEC SAS 1-4 RUE DE WESTHOUSE - 67235 BENFELD, FRANCE - WWW.SOCOMEC.COM Subject to change without notice. ATYS t - 541995C - SOCOMEC...

  • Page 14: Quick Start Atys T Frame B6 To B8 (800 A To 3200 A)

    - Packaging and contents are in good condition - The product reference corresponds to the order - Contents should include: Qty 1 x ATyS t Qty 1 x Emergency handle and fixing clip Quick Start instruction sheet Warning Risk of electrocution, burns or injury to persons and / or damage to equipment.
  • Page 15 Recommanded to use SOCOMEC Connect the product with a cable of section of 1,5 to 2,5 mm Voltage Sensing Kit (refer to ATyS t accessories Screw M3 - Tightening torque: for details) min.: 0.5 Nm - max.: 0.6 Nm / min.: 4.43 lbin - max.: 5.31 lbin...

  • Page 16: Quick Start Atys T Frame B6 To B8 (800 A To 3200 A) Continued

    It is imperative that the network supply is available and that the settings have been saved by pressing the PROG OK button momentarily. wiring to the ATyS t voltage sensing terminals 103 – 106 and 203 – 206 has been done. It is ATyS t preferable to use the ATyS sensing kit that may be provided as an accessory.
  • Page 17 2.11 53,5 2.11 53,5 2.11 53,5 2.11 53,5 2.11 53,5 2.11 53,5 Non contractual document. CORPORATE HQ CONTACT: SOCOMEC SAS 1-4 RUE DE WESTHOUSE - 67235 BENFELD, FRANCE - WWW.SOCOMEC.COM Subject to change without notice. ATYS t - 541995C - SOCOMEC...

  • Page 18: General Overview

    Override controls and force to Off position 17. Sliders for Terminal Shields 18. Fixing holes for terminal Shields 19. Emergency manual operation shaft location (Accessible only in manual mode) 20. Clip for emergency handle storage ATYS t - 541995C - SOCOMEC...

  • Page 19: Product Identification

    12. Emergency manual operation direction of rotation indication 13. Output contacts identification label. 14. Input contacts identification label. 15. Guide to ATyS t programming steps. 16. Reset button (Push and hold for at least 1s to restart the ATS controller). ATYS t - 541995C - SOCOMEC...

  • Page 20: Ats Control Module Interface

    Yellow steady light when in remote control mode. Remote control mode is achieved with the Auto/Manu selector switched to Auto and terminals 312 closed with terminal 317. Remote control orders are received through closing 314 to 316 with 317. ATYS t - 541995C - SOCOMEC...

  • Page 21: Environmental

    • For higher altitude the Ka correction factors below apply Ka: Correction Factor 2000 m < A ≤ 3000 m 3000 m < A ≤ 4000 m 0.95 0.85 0.85 5.4.3. Storage Conditions 5.4.3.1. Temperature • From -40 to +70°C ATYS t - 541995C - SOCOMEC...

  • Page 22: Storage Duration Period

    9543 3200 51,8 67,8 730x800x600 2000 A 9543 4200 62,7 78,7 730x800x600  9543 3250 51,8 67,8 730x800x600  2500 A 9543 4250 62,7 78,7 730x800x600 9543 3320 62,1 78,1 730x800x600 3200 A 9543 4320 76,4 92,4 730x800x600  ATYS t - 541995C - SOCOMEC...

  • Page 23: Ce Marking

    4KV (B) ESD air 61000-4-2 8KV (B) Electromagnetic field 61000-4-3 10V/m (A) RF Conducted 61000-4-6 10V (A) 2KV (B) power Burst 61000-4-4 1KV (B) control Surge Common 61000-4-5 2KV (B) Surge differential 61000-4-5 1KV (B) ATYS t - 541995C - SOCOMEC...

  • Page 24: Atys T Accessories Available

    2000 to 3200A. For Low level AC: please consult SOCOMEC. KEY LOCK AUTO / MANUAL SELECTOR SWITCH The ATyS t mode selector switch is delivered with a rotary handle as standard. This can be replaced with a key lock. ATYS t - 541995C - SOCOMEC...
  • Page 25 ATYS t - 541995C - SOCOMEC...

  • Page 26: Installation

    3. Connection and disconnection area 4. Phase Barriers 5. Emergency removable handle 6. Flush mounting cutout dimensions for front door To consider the space required for manual operation and wiring (when using the ATyS g CAUTION emergency handle: note 2). ATYS t - 541995C - SOCOMEC...
  • Page 27 125 A 160 A 200 A 250 A 315 A 400 A 500 A 630 A 286,5 286,5 286,5 42,5 37,5 42,5 37,5 39.5 39.5 39.5 39.5 39.5 39.5 133.5 133.5 133.5 133.5 133.5 133.5 ATYS t - 541995C - SOCOMEC...

  • Page 28: Dimensions: Frame B6 & B7 (800 A To 1600 A)

    60.5 60.5 47.5 47.5 47.5 47.5 47.5 47.5 66.5 66.5 66.5 66.5 66.5 66.5 67.5 67.5 To consider the space required for manual operation and wiring (when using the ATyS g CAUTION emergency handle: note 2). ATYS t - 541995C - SOCOMEC...

  • Page 29: Dimensions: Frame B8 (2000 A To 3200 A)

    7. Flush mounting cutout dimensions for front door 2000 A 3200 A 398,5 518,5 398,5 518,5 To consider the space required for manual operation and wiring (when using the ATyS g CAUTION emergency handle: note 2). ATYS t - 541995C - SOCOMEC...

  • Page 30: Mounting Orientation

    6.3. Assembly of customer mounted accessories Never handle any customer mounted accessories while there may be the DANGER risk of voltage being or becoming present. 6.3.1. Clip for emergency handle storage Max tightening torque 2,5 Nm ATYS t - 541995C - SOCOMEC...

  • Page 31: Bridging Bar Installation

    6.3.3. Terminal shrouds Available from 125 A to 630 A Frame B3 to Frame B5: • Upstream, downstream, front or rear mounting. • When fitted with bridging bars only the front terminal shrouds are to be installed. ATYS t - 541995C - SOCOMEC...

  • Page 32: Terminal Screens

    6.3.4. Terminal screens 125 A to 630 A 500 A to 1600 A 2000 A to 3200 A ATYS t - 541995C - SOCOMEC...

  • Page 33: Copper Bar Connection Kits (2000 A To 3200 A : Frame B8)

    Note: Reference numbers and quantity given above and below are for one connection and per pole. For a full set multiply the quantity indicated by the number of poles (3 or 4 pole) and then multiply by 2 (N° of switches) ATYS t - 541995C - SOCOMEC...

  • Page 34: Incoming Copper Bar Connection Kit Assembly

    2900AMax Connection bar 2619 1200 included with 3200A V10 & V11 Kit : 2699 1201 x 2 2629 1200 x 1 4109 0320 x 1 Kit : 2629 1200 x 2 2639 1200 x 2 ATYS t - 541995C - SOCOMEC...

  • Page 35: Power Supply

    Transformer data: 400 VAC – 230 VAC: 200 VA. In this case the ATyS t will require 2 transformers to be connected as shown below. Source 1 Source 2 400 Vac 400 Vac 230 Vac 230 Vac ATYS t - 541995C - SOCOMEC...

  • Page 36: Padlocking Key Interlocks

    Pos I Pos I Pos II When mounting one auxiliary contact on position I or II, use the short screws provided. When mounting two auxiliary contacts on position I or II, use the long screws provided. ATYS t - 541995C - SOCOMEC...

  • Page 37: Connections

    125 A TO 630 A - REFER TO SECTION “PRODUCT DIMENSIONS”, PAGE 26 FOR POWER CONNECTION TERMINAL DETAILS. 800 A TO 1000 A 1250 A 1600 A TO 3200 A 16 x 11 ø 9 ø12.5 ø 15 15.75 28.5 15.75 ATYS t - 541995C - SOCOMEC...

  • Page 38: Power Connection Cross-Section

    (mm²), Ith Maximum cables 2x185 2x300 2x300 4x185 4x185 6x185 section Cu (mm Maximum bars width Cu (mm) Note for all ratings: Take into account the connection cable lengths and/or others environmental specific operating conditions. ATYS t - 541995C - SOCOMEC...

  • Page 39: Connection

    -20% 50/60Hz Uc 208-277V~ +/-20% 50/60Hz Uc 208-277V~ +/-20% 50/60Hz Uc 208-277V~ +/-20% 50/60Hz on: 22VA Power comsumption: 22VA Power comsumption: 22VA Power comsumption: 22VA tion sheet See instruction sheet See instruction sheet See instruction sheet ATYS t - 541995C - SOCOMEC...

  • Page 40: Networks And Power Connection Possibilities

    Source 1 Source 2 Load Load 4BL Three phase network with neutral 4NBL Three phase network with neutral (with 1 CT connected on Phase 1) Source 1 Source 2 Source 1 Source 2 Load Load ATYS t - 541995C - SOCOMEC...

  • Page 41: Metering And Sensing Details

        available) Source in ranges (U, V, F)      Rotation phase order     Neutral position   Voltage unbalanced is     lower than threshold ATYS t - 541995C - SOCOMEC...

  • Page 42: Control Circuits

    Do not handle any control or power cables connected to the ATyS when voltage may be DANGER present. Verify that the Auxiliary power supply feeding terminals 101 and 102 / (201 and 202) are within CAUTION the limits of 208VAC -> 277VAC ±20% ATYS t - 541995C - SOCOMEC...

  • Page 43: Atys T Input And Output Contacts

    6: 208 / 120 7: 220 / 127 8: 230 / 132 9: 240 / 138 10: 380 / 220 ATYS t - 541995C - SOCOMEC 11: 400 / 230 12: 415 / 240 13: 480 / 277 Motorised Changeover Switch...

  • Page 44: Terminal Denomination, Description And Characteristics

    *For metering and sensing details, please refer to page 41. Do not connect terminals 312 to 317, 413 to 417 to any power supply. These order inputs are CAUTION powered through terminal 317 (or 417 respectively) and external dry contacts ONLY. ATYS t - 541995C - SOCOMEC...

  • Page 45: Voltage Sensing And Power Supply Kit

    3 wire kits (those without a neutral) do not include for the power supply to terminals (101-102 and 201 – 202). Ensure that you have ordered the correct reference prior to installation. (Refer to the accessory section for details). Source Source ATYS t - 541995C - SOCOMEC...

  • Page 46: Sensing Kit Wiring Diagram

    Verify kit orientation before mounting the kit. CAUTION 800 A Kit output cables always on the right hand side (control module side). erminals wires Black wires mechanical cables support 202201 onnection on power supply and control module ATYS t - 541995C - SOCOMEC...

  • Page 47: Network

    For network 220/240 VAC ± 20%, power supply conductor (no kit modification required): cables A-B to connect between phases Black wires Red wires Red wires Black wires mechanical mechanical cables cables support L/N N/L support L/N N/L ATYS t - 541995C - SOCOMEC...

  • Page 48: Atys T Operating Modes And Sequences

    (Refer to product catalogue) Depending on the state of the ATyS t the ATS automation may change the switch position as WARNING soon as the mode selector is switched to AUT. This is a normal operation. ATYS t - 541995C - SOCOMEC...

  • Page 49: Manual Operation

    3x 8mm padlocks may be padlocked onto the ATyS t to padlocking mechanism. As standard, padlocking is only made possible in the “O position”, when in manual mode CAUTION and with the emergency handle not inserted. ATYS t - 541995C - SOCOMEC...

  • Page 50: Electrical Operation

    G/H (10/20% for ΔU and 5/10% for ΔF) with dip switch 4. The supply will be considered as returned after the return timer (set through potentiometer RT on the ATS controller) has elapsed. The RT setting is adjustable from 0 – 60 minutes. Measurement accuracy: Frequency: 0.1% - Voltage: 1% ATYS t - 541995C - SOCOMEC...

  • Page 51: Fixed Inputs

    This input contact is used to set the priority source supply to SI or to SII. By default and with contacts 414-417 open the priority supply is set to SI. When 414 is closed with 417 priority is set to SII. Attn: this input is active with contacts 413 – 417 open. ATYS t - 541995C - SOCOMEC...

  • Page 52: Technical Data

    ESD withstand voltage (Contact/air) 2/4kV 2/4kV Insulation (Common mode) 4.8kVAC 4.8kVAC (Between I/P and all common parts) (Between I/P and all common parts) Terminal connector 1.5mm² minimum / 2.5mm² max 1.5mm² minimum / 2.5mm² max ATYS t - 541995C - SOCOMEC...

  • Page 53: Remote Control Logic

    (1st order received is held until no longer maintained). position II • If order I or II disappears, the device returns to zero position. (With maintened the power supply available). (Note : Excludes position switching delays) ATYS t - 541995C - SOCOMEC...

  • Page 54: Fixed Outputs - Dry Contacts

    (Normally Open contact that is held closed when the ATS is available) The above contacts may be used separately for precise monitoring of the state of each module or wired in series to monitor the availability of the ATS and motorisation modules as a complete unit. ATYS t - 541995C - SOCOMEC...

  • Page 55: Technical Data

    I-0 or II-0 following source’s loss or return - POT 0.75s 0.73s 0.74s 1.7s 1.5s 1.5s Operating transfer time I-II or II-I, following source’s loss or return - OTT 1.1s 1.1s 1.1s 3.1s 2.9s 2.6s ATYS t - 541995C - SOCOMEC...

  • Page 56: Programming

    (This is intended as a visual alarm in case one has changed the configuration settings but has not yet saved the new values in the product) Foraddedsecurity: The ATyS t may be equipped with a sealable cover so as to limit access to the configuration settings. Refer to the product accessory section for details. ATYS t - 541995C - SOCOMEC...

  • Page 57: Step 1: Atys T Dip Switches Setting Options

    B: 1 Ph C: Neutral G: U 10% F 5% Potentiometer 2 Supply Source Return Time : 0 to 60 min H: U 20% F 10% D: Neutral POSITION SETTING IDENTIFICATION FT (sec) RT (min) POWER ATYS t - 541995C - SOCOMEC...

  • Page 58: Step 3: Atys T Auto Configuration

    11: 400 / 230 12: 415 / 240 13: 480 / 277 Motorised Changeover Switch PROG 1600A Ref : 95054160 Set Dip Set Pot ATyS Ready ! Press Press 60ms Ø 4 ... 8mm PROG PROG ATYS t - 541995C - SOCOMEC...

  • Page 59: Characteristics

    6.3/ 7.5 6.3/ 7.5 6.3/ 7.5 7.2/ 8.0 7.3/ 8.4 7.3/ 8.4 12.0/ 13.9 12.5/ 14.6 Weight ATyS t, g, p 3 P / 4 P (kg) 6.8/ 8.0 6.8/ 8.0 6.8/ 8.0 7.7/ 8.5 7.8/ 8.9 7.8/ 8.9 12.5/ 14.4 13.0/ 15.1 (1) Category with index A = frequent operation - Category with index B = infrequent operation.
  • Page 60 Weight ATyS d 3 P / 4 P (kg) 28.5/ 32.8 29.0/ 33.5 29.5/ 34.2 33.7/ 40.0 51.3/ 62.2 51.3/ 62.2 61.6/ 75.9 Weight ATyS t, g, p 3 P / 4 P (kg) 29.0/ 33.3 29.5/ 34.0 30.0/ 34.7 34.2/ 40.5 51.8/ 62.7 51.8/ 62.7 62.1/ 76.4 (1) Category with index A = frequent operation - Category with index B = infrequent operation.

  • Page 61: Preventive Maintenance

    Good engineering practice is imperative whilst all necessary precautions must be taken to ensure that the intervention (whether directly or indirectly) remains safe in all aspects. ATYS t - 541995C - SOCOMEC...

  • Page 62: Trouble Shooting Guide

    • The FAULT LED will also illuminate when the aux power supply is present but out of range. • Should the Fault LED remain on abnormally, contact SOCOMEC. The fault LED is on • Switch the ATyS t from AUT to Manual and back to AUT. Should the fault condition...

  • Page 63: Accessories

    2998 0033 125 … 200 2998 0034 2998 0023 250 … 400 250 … 400 2998 0024 500 … 630 2998 0013 2998 0014 500 … 630 800 … 3200 B6 … B8 3/4 P included ATYS t - 541995C - SOCOMEC...

  • Page 64: Bridging Bars

    For example, for a 4 P 2500 A with onsite upstream connection (Fig. 2) and downstream bridging (Fig. 3), please order 16 x 2619 1200 12 x 2629 1200 8 x 2699 1201 4 x 4109 0320 8 x 2639 1200 ATYS t - 541995C - SOCOMEC...

  • Page 65: Solid Neutral

    For power supply and voltage measurement (4 wire, three-phase) for the Note: the 3-pole version does not ATyS t, g and p. integrate the power supply. Routing of the conductors is controlled, which means that no specific protective device is necessary for these connections.

  • Page 66: Door Protective Surround

    0 using a RONIS EL11AP position I, 0 or II. lock (factory fitted). Rating(A) Framesize Reference 9599 1006 125 … 630 B3 … B5 800 … 3200 B6 … B8 9599 1004 ATYS t - 541995C - SOCOMEC...

  • Page 67: Remote Interface

    Length Reference RJ45 cable 1599 2009 13.17. Sealable cover Use - for ATyS t and g Prevents access to the ATyS t and g configuration potentiometers and DIP switches (seals supplied). Rating(A) Framesize Reference 125 … 3200 B3 … B8 9599 0000 13.18.

  • Page 68: Spare Parts

    14.5. Metal mounting brackets This accessory may also be used to replace the original metal mounting brackets. Composed of 2 metal mounting brackets and 4 plastic covers. Rating(A) Framesize Reference 125 … 630 B3 … B5 1509 0003 ATYS t - 541995C - SOCOMEC...

  • Page 69: Atys Family: Ordering Information

    The following is an ordering guide for ATYS Motorised Transfer Switches delivered inclusive of the emergency handle and storage clip. This guide is intended so as to explain the logic behind SOCOMEC ATYS reference numbers. When ordering please consult the latest SOCOMEC catalogue.
  • Page 70 CORPORATE HQ CONTACT: SOCOMEC SAS 1-4 RUE DE WESTHOUSE 67235 BENFELD, FRANCE www.socomec.com 541995C...

This manual is also suitable for:
