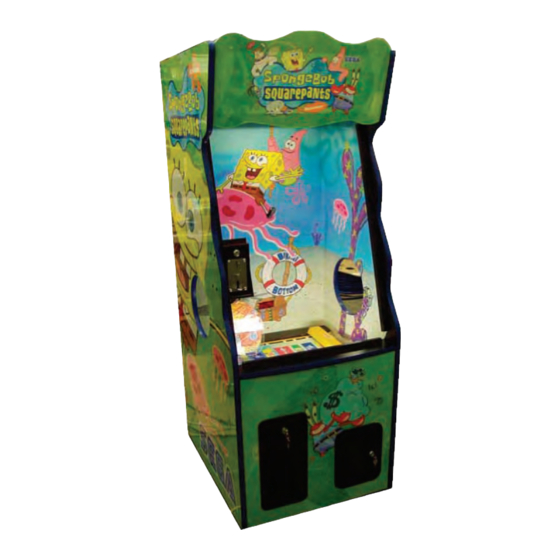

Sega SpongeBob SQUAREPANTS Owner's Manual
  1. Manuals
  2. Brands
  3. Sega Manuals
  4. Arcade Game Machines
  5. SpongeBob SQUAREPANTS
  6. Owner's manual

Sega SpongeBob SQUAREPANTS Owner's Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
www.sauservice.com

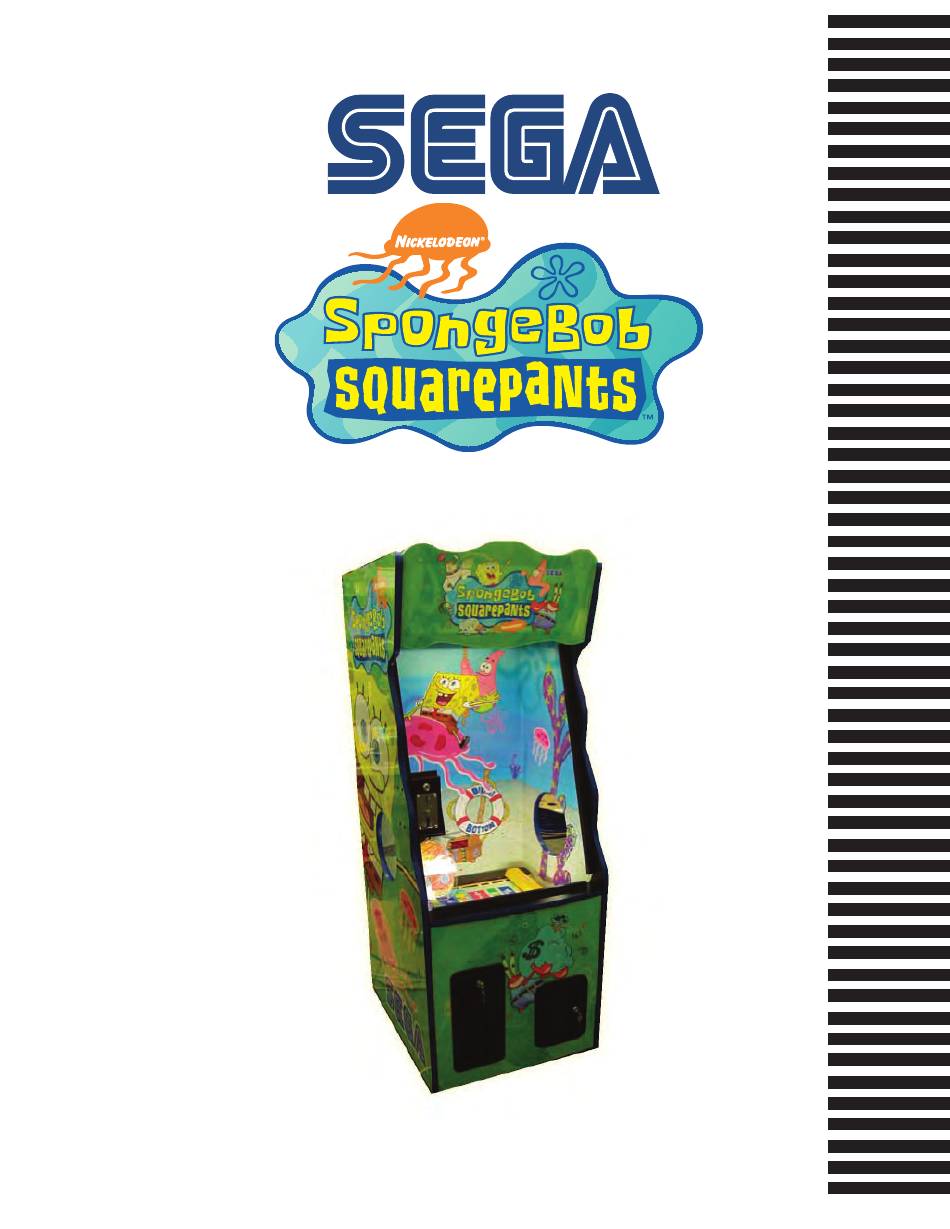

1ST PRINTING DECEMBER '04
®
Redemption Version
Owner's Manual
SEGA AMUSEMENTS USA, INC.
MANUAL NO. 999-2186
GAME CODE: SBR

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SpongeBob SQUAREPANTS and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Sega SpongeBob SQUAREPANTS

Summary of Contents for Sega SpongeBob SQUAREPANTS

  • Page 1 1ST PRINTING DECEMBER ‘04 ® Redemption Version Owner’s Manual SEGA AMUSEMENTS USA, INC. MANUAL NO. 999-2186 GAME CODE: SBR...
  • Page 2 VISIT OUR WEBSITE! Now with a new look to make your experience that much easier.
  • Page 3 BEFORE USING THE PRODUCT, BE SURE TO READ THE FOLLOWING: To maintain the safety: To ensure the safe usage of the product, be sure to read the following before using the product. The following instructions are intended for the users, operators and the personnel in charge of the opera- tion of the product.
  • Page 4 SEGA shall not be held responsible for any accidents, compensation for damage to a third party, resulting from the specifications not designated by SEGA.

  • Page 5: Table Of Contents

    TABLE OF CONTENTS BEFORE USING THE PRODUCT, BE SURE TO READ THE FOLLOWING: TABLE OF CONTENTS INTRODUCTION OF THE OWNER’S MANUAL 1. HANDLING PRECAUTIONS ..................1 - 2 2. PRECAUTIONS CONCERNING INSTALLATION LOCATION ........3 - 4 3. OPERATION ........................5 - 6 4.

  • Page 6: Introduction Of The Owners Manual

    SEGA AMUSEMENTS USA, INC. / CUSTOMER SERVICE 45133 Industrial Drive, Fremont, California 94538, U.S.A. Phone : (415) 701-6580 Fax : (415) 701-6594 ● PRODUCTION DATE ● This SEGA product was produced in the year of: 2004 This signifies that this work was disclosed in 2004.
  • Page 7 DEFINITION OF LOCATION MAINTENANCE MAN AND SERVICEMAN Non-technical personnel who do not have technical knowledge and expertise should refrain from performing such work that this manual requires the location's main- tenance man or a serviceman to carry out, or work which is not explained in this WARNING! manual.
  • Page 8 Notes:...

  • Page 9: Handling Precautions

    • SEGA shall not be held responsible for damage, compensation for damage to a third party, caused by specification changes not designated by SEGA.
  • Page 10 ● Some parts are the ones designed and manufactured not specifically for this game machine. The manufacturers may discontinue, or change the specifications of, such general-purpose parts. If this is the case, Sega cannot repair or replace a failed game machine whether or not a warranty period has expired.

  • Page 11: Precautions Concerning Installation Location

    2. PRECAUTIONS CONCERNING INSTALLATION LOCATION This product is an indoor game machine. Do not install it outside. Even indoors, avoid installing in places mentioned below so as not to cause a fire, electric shock, injury and WARNING! or malfunctioning. ● Places subject to rain or water leakage, or places subject to high humidity in the proximity of an indoor swimming pool and or shower, etc.
  • Page 12 To avoid machine malfunctioning and a fire, do not place any obstacles near the ventilation opening. ● SEGA shall not be held responsible for damage, compensation for damage to a third party, resulting from the failure to observe this instruction.

  • Page 13: Operation

    3. OPERATION PRECAUTIONS TO BE HEEDED BEFORE STARTING THE OPERATION To avoid injury and trouble, be sure to constantly give careful attention to the behavior and manner of the visitors and players. In order to avoid accidents, check the following before starting the operation: ●...
  • Page 14 ● Immediately stop such violent acts as hitting and kicking the product. Such violent acts can cause parts damage or falling down, resulting in injury due to fragments and falling down. CAUTION! ● Do not put any heavy item on this product. Placing any heavy item on the product can cause a falling down accident or parts damage.

  • Page 15: Assembling And Installation

    4. ASSEMBLING AND INSTALLATION ● Perform assembly work by following the procedure herein stated. Failing to comply with the instructions can cause electric shock hazard. WARNING! ● Perform assembling as per this manual. Since this is a complex machine, erroneous assembling can cause an electric shock, machine damage and or not functioning as per specified performance.
  • Page 16 POWER SUPPLY, AND EARTH CONNECTION ● Be sure to independently use the power supply socket outlet equipped with an Earth Leakage Breaker. Using a power supply without an Earth Leakage Breaker can WARNING! cause a fire when electric leakage occurs. ●...

  • Page 17: Precautions When Moving The Machine

    5. PRECAUTIONS WHEN MOVING THE MACHINE ● When moving the machine, be sure to unplug the power plug. Moving the machine with the plug as is inserted can damage the power cord and cause fire and electric WARNING! shock hazards. ●...

  • Page 18: Name Of Parts

    6. NAME OF PARTS Marquee Display Mobile Spongebob Playfield Area Coin Inlet Speaker Outlet Coin and Cashbox Door Ticket Dispenser TABLE 4 Dimensions and Weights Width x Length x Height Weight Cabinet when assembled 25.25 in x 30 in x 71.5 in 315 LBS www.seuservice.com...

  • Page 19: Game Description

    7. GAME DESCRIPTION The following explanations apply to a properly functioning game unit. Should there be any moves different from the following contents, a variety of possible faults may have occurred. Immediately look into the cause of the fault and eliminate the cause to ensure satisfactory operation. When the power is turned on, the fluorescent lamp located in the marquee and the lamp below the instruction panel turn on.

  • Page 20: How To Play

    8. HOW TO PLAY When a coin/token is inserted through the ● coin slot located on the face of the machine, it will travel down the coin chute to the plexi pineapple, then tumbles down to the face of the conveyor. At the time of coin insertion the speaker will start playing music.

  • Page 21: Prize Settings Explained

    9. Prize Settings Explained Your Spongebob Squarepants game is shipped with 4 different prize plates. Each shows a different level of prize payout tat corresponds with the dip switch settings #1 and #2. • SW1 & SW2 -- Coins/Game ✺ Bold denote default settings •...

  • Page 22: Gameboard Config Settings

    Conifig (DIP) Switch Location 5 Amp automotive fuse Volume Pot Available at most auto parts store Programable Flash Chip Spongebob Squarepants Config Switch Settings for Production Models software version: 1.04 Config Switch Settings: ✺ Bold denote default settings • SW1 & SW2 -- Coins/Game •...

  • Page 23: Conveyor Assembly

    12. Conveyor Assembly Tensioner Motor Tension Nut Tension Screw Adjusting Belt Tension This conveyor has an Adjustor on both sides of the assembly which can be used to set the tension of the belt. Tension can be adjusted (2) ways using the tensioner. 1- Through tightening the Tension screw you will decrease tension on the roller to the belt.

  • Page 24: Coin Selector

    13. COIN SELECTOR HANDLING THE COIN JAM If the coin is not rejected when the REJECT button is pressed, open the coin chute door and open the selector gate. After removing the jammed coin, put a normal coin in and check to see that the selector correctly functions.
  • Page 25 14. TICKET DOOR ● Ticket Door is a Happ Controls Part #40-0550-00 and comes with the Ticket Stickers Happ Controls Part#42-1378-00 and Deltronics (DL-1275) Dispenser with Bin, LED, Level Sensor, & Harness. Door without Dispeser is Happ Controls Part # 40-0547-00. ●...
  • Page 26 TICKET DISPENSER www.seuservice.com...
  • Page 27 www.seuservice.com...
  • Page 28 www.seuservice.com...
  • Page 29 DETAILS OF PARTS DELTRONIC LABS P/N NAME SHFT-IDLRLR/TD IDL. ROLLER SHAFT RM-SFTMTR/TD MOTOR PIVOT SHAFT SPAC PIVBLK/TD/4HOL PIVOT BRACKET SPAC RM-SPCPB/TD SPACER BLOCK RM-RLRIDL/TD/VALD IDLER ROLLER RM-RLRDRV/TD/VALD DRIVER ROLLER SPRG-TENSN/TD TENSION SPRING RM-BKTPVT/TD BRAKE WHEEL RM-PANLFT/TD/NOPM FRONT PANEL RM-WHLBRK/TD BRAKE WHEEL SPR-LOCA/TD LOCATING SPRING RM-BRKTBRK/TD...

  • Page 30: Troubleshooting And Belt System Information

    15. TROUBLESHOOTING AND BELT SYSTEM INFORMATION 15-1 TROUBLESHOOTING ● In order to prevent electric shock and short circuit, be sure to turn power off before performing work. WARNING! ● Be careful not to damage the wires. Damaged wires may cause electric shock or short circuit.
  • Page 31 15-2 BELT SYSTEM INFORMATION AND TROUBLESHOOTING Belt System Information The SpongeBob game uses opto-sensors to read the coins that land on the belt during game play. The Belt is covered with characters and corresponding index marks on the belt’s edge. The way a prize is awarded is to have a coin read ‘After”...

  • Page 32: Design Related Parts

    16. DESIGN RELATED PARTS 999-2261 SBR Decal Marquee 999-2264 SBR Diecut Figure SB 999-2136 SBR Decal L Side 999-2137 SBR Decal R Side 999-2144 SSR Pineapple Assy. 999-2138 SBR Decal Front 999-2141 SBR Decal Middle Inside 999-2142 SBR Decal Inside R 999-2159 SBR Decal Conveyor Bezel 999-2263 Decal SBR...

  • Page 33: Parts

    17. PARTS Outer Game Area ITEM NO. PART NO. DESCRIPTION NOTE 999-2262 Front Plex 998-0225 Coin Mech & Face Plate Happ#830-4061-07 999-2133 Coin Door Lock 999-2151 Ticket Door Assembly Happ#40-0550-00 999-2271 Ticket Dispenser 999-2170 Cash Box Door Happ#40-0057-00 999-2171 Cash Box Happ#42-1102-10 999-2187 Cash Box Lock...
  • Page 34 Rear Game Area ITEM NO. PART NO. DESCRIPTION NOTE 999=2275 Rear Handles HAPP 998-0224 Assy Oscillating Light 998-0221 PCBoard MPU 998-0223 3 Digit LED Display 998-0228 5V Dummy Load 998-0220 Power Supply 999-2157 PCB Bracket 999-2276 Motor Mounting Bracket 999-2284 Motor, 9RMPM 120VAC 999-2277 Flipper Bushing...
  • Page 35 Conveyor Assy 999-2149 9 10 ITEM NO. PART NO. DESCRIPTION NOTE 999-2281 Bracket Roller 999-2282 Roller Pin 999-2283 Drive Roller 999-2285 Motor, 20RPM 120V CW 999-2286 Idler Roller 999-2155 Belt Screened 999-2287 Bracket Spring Support 999-2288 Spring Roller 999-2289 Mounting Bracket Opto Board 998-0222 P.C.
  • Page 36 Play Area ITEM NO. PART NO. DESCRIPTION NOTE 999-2290 Opto Board Cover 999-2291 Prize Card Bracket 999-2292 Fluorescent Plex Separator 999-2159 Conveyor Bezel www.seuservice.com...
  • Page 37 Misc Parts Not Shown ITEM NO. PART NO. DESCRIPTION NOTE 999-2132 Lock Rear Door 999-2293 Sponge Bob Mounting Block 999-2161 Light Defuser 999-2158 Coin Chute Assy 999-2294 Cash Box Coin Chute 999-2295 Fluorescent Lamp Holder Local Purchase Bulb 15W 18” CoolWhite 999-2150 Assy Pineapple 999-2164...

  • Page 38: Wire Color Code Table

    18. WIRE COLOR CODE TABLE THE WIRE COLOR CODE is as follows: PINK SKY BLUE BROWN PURPLE LIGHT GREEN Wires other than the above 5 single colors will be displayed by 2 alphanumeric characters. BLUE YELLOW GREEN WHITE ORANGE BLACK GRAY If the right-hand side numeral of the code is 0, then the wire will be of a single color shown by the left-hand side numeral (see the above).
  • Page 39 Warranty Your new Sega Product is covered for a period of 90 days from the date of shipment. This certifies that the Printed Circuit Boards, Power Supplies and Monitor are to be free of defects in workman- ship or materials under normal operating conditions. This also certifies that all Interactive Control Assemblies are to be free from defects in workmanship and materials under normal operating condi- tions.
  • Page 40 SEGA AMUSEMENTS USA, INC.
