Summary of Contents for Sega Sonic Allstarts Kids Basketball

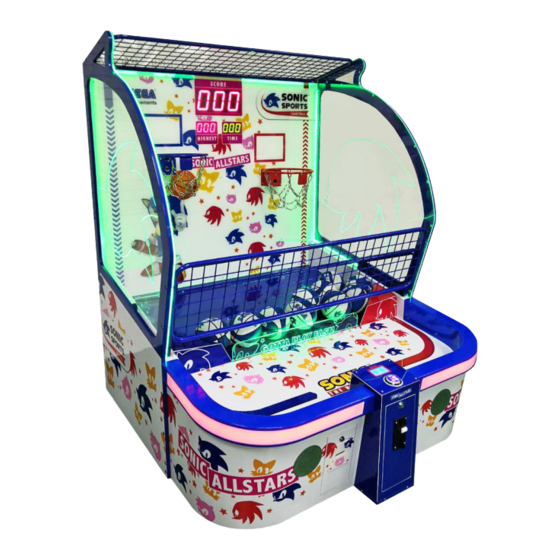

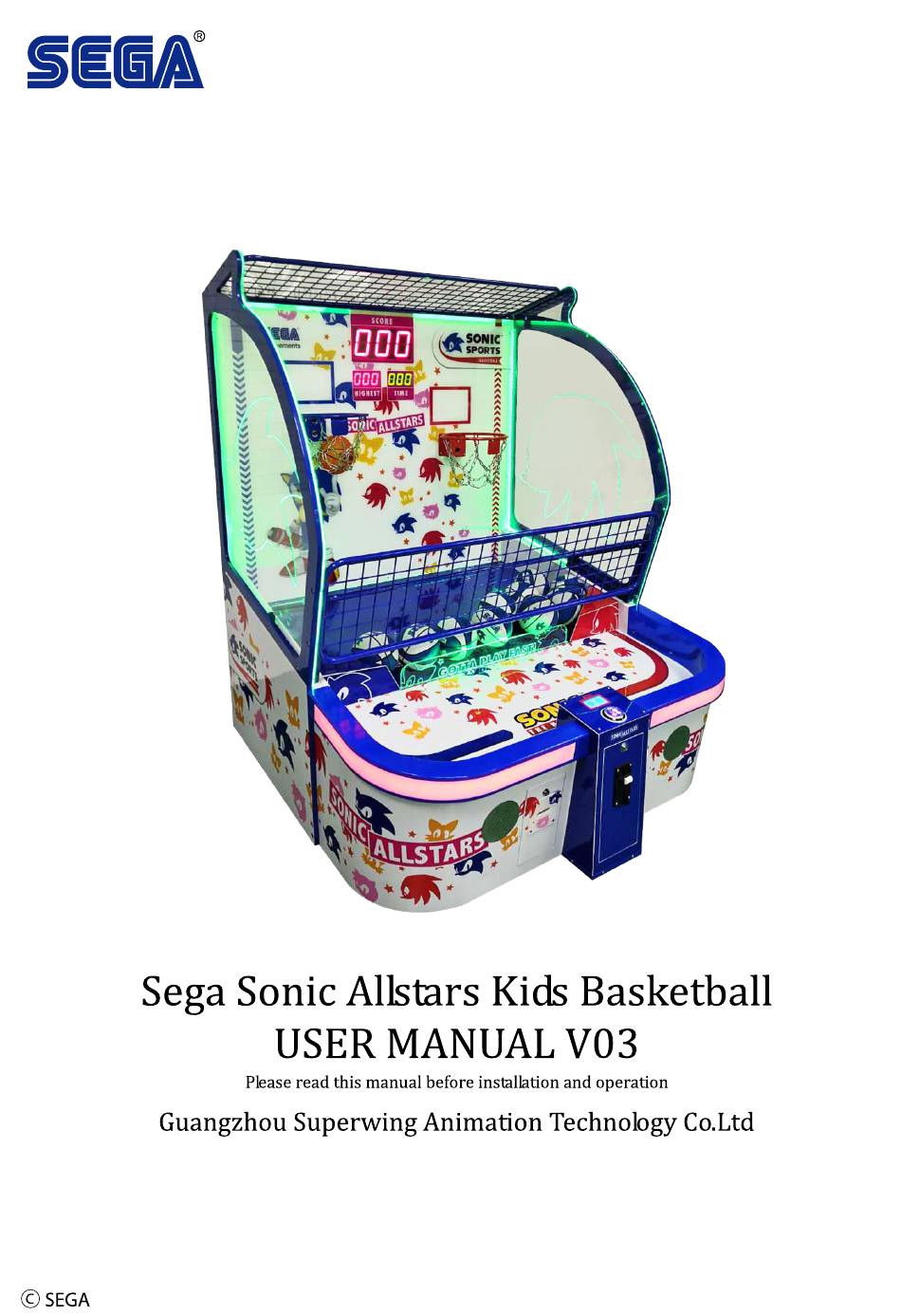

  • Page 2 "Sega Sonic Allstars Kids Basketball" This manual is intended for the owners, personnel managers in charge of operation of this product. Operate the product after carefully reading and sufficiently understanding the instructions.
  • Page 3 Potential Risk to life or damage to product If ignored, may result in the mishandling of the product and cause faulty operation or damage to the product or person(s) Definition of 'Site Maintenance Personnel’ or Other Qualified individuals. Individuals STOP IMPORTANT Procedures not described in this manual or marked as ‘to be carried out by site maintenance personnel or other qualified professionals should not be carried out...
  • Page 4 SEGA shall not be held responsible for any accidents, compensation for damage to a third party, resulting from the specifications not designated by SEGA.
  • Page 5 INSPECTIONS IMMEDIATELY AFTER TRANSPORTING THE PRODUCT TO THE LOCATION Normally, at the time of shipment, SEGA products are in a status allowing for usage immediately after transporting to the location. Nevertheless, an irregular situation may occur during transportation. Before turning on the power,check the following points to ensure that the product has been transported in a satisfactory status.
  • Page 6: Table Of Contents

    Contents Product Profile-----------------------------------------------------------------------3 Accessories List----------------------------------------------------------------------4 How to install the machine--------------------------------------------------------5 Game description-------------------------------------------------------------------7 Maintenance and Repair-----------------------------------------------------------9 Wiring Diagram--------------------------------------------------------------------10...
  • Page 7: Product Profile

    : : Time Display : High Score display Score Display Roof Cage Frame Basket Ring Basket Ring Ball cage Start Button Lighting Coin Acceptor Ticket : 、 、 、...
  • Page 8: Accessories List

    Accessories List Content Quantity Remarks User Manual Keys (Service and cashbox) 1x 6019 / 1x 6178 power cord Bolts M6 type Screws M4 Type Game to operated with 10 Basketball balls. Keep 5 as spares Air pumper Reflective stickers Spares for basket sensors...
  • Page 9: How To Install The Machine

    Machine Installation 1) Before pushing front and back of machine together, connect all wire harnesses. (It is not possible to make a misconnection as the connectors are unique) Carefully push the machine together minding not to trap the wire harnesses. Note : You may find it easier to tilt the machine backwards to get the front of the game to push underneath the bracket strip 2) Using the supplied M6 bolts, secure the front and rear of the game together through the...
  • Page 10 Main electrical area: Power supply Main control board Power supply Amplifier Accessories in the basket machine shelf Score Board Time board High score board Ball Gate Motor Score Sensor Score Sensor Digital Coin Acceptor devices: Coin Acceptor (Europe only) Coin Acceptor (USA &...
  • Page 11: Game Description

    Game description Reward description:If all 3 levels are passed, a free game is awarded. Scoring: 1) Score three points when a basket is scored with less than 15seconds. 2) Score 2 points in normal play (more than 15 seconds on the clock remaining Button 1、...
  • Page 12 Play Two Set Play Two Set In Time: 040 In Time:035 Time for round 2 Play Three Set Play Three Set Score: 040 Score:180 Score required for player to beat the high score Play Three Set Play Three Set In Time: 040 In Time:030 Time for round 3 MaxScore Set...
  • Page 13: Maintenance And Repair

    Maintenance and Repair Issue Countermeasures 1) Check sensor reflector stickers are in good condition and 八 sensor is aligned with them. 、 Score not registered 2) Check wiring is connected at the back of the game and at the when basket is scored. IO board 3) Check the sensor has 12vdc supply and the signal line is not short circuit...
  • Page 14: Wiring Diagram

    Wiring Diagram 匕 、 RGB LED Light...
  • Page 15 Qty per Parts code Image Descriptionj machine 1.DZ.DQ.0090 Basket score Sensor 1.DZ.DQ.0287 Ticket Dispenser (TL-002) 1.DZ.DQ.0291 Main fuse holder 1.DZ.DQ.0332 Main Fuse 1.DZ.DY.0135 IEC Mains inlet (250V) 1.DZ.DY.0143 SMPS (5V/7A) 100-240VAC Page 1...
  • Page 16 Parts List 1.DZ.DY.0147 SMPS (12v/8.5A) 100-240VAC 1.DZ.KG.1005 Main power swirch 1.DZ.KG.2001 TEST Button (Red) 1.DZ.KG.2020 Start Button / incl switch 1.DZ.LB.0056 4" Speaker 15W 8 Ohm 1.DZ.LE.0063 RGB LED strip with cons (90cm) 1.DZ.LE.0063 RGB LED strip with cons (45cm)
  • Page 17 RGB LED strip with cons 1.DZ.LE.0063 (180cm) Parts List RGB LED strip with cons 1.DZ.LE.0063 (140cm) 1.DZ.XB.0135 Audio Amplifier 1.SL.QT.0092 Ticket bin (Yellow) 1.SL.YZ.0124 Sonic basketball 5" 1.TZ.ET.0524 Mark(CE版) 1.TZ.ET.0702 Mark Page 3...
  • Page 18 Parts List 1.WJ.S.1028 6019 door lock (Kids BB) 1.WJ.S.1029 6178 Lock (kids BB) 5.FL.0060 Key Ring 1.WJ.S.2008 6019 Key (Kids BB) 1.WJ.S.2010 6178 Key (Kids BB) 1.XC.QT.0170 Wire(5A) Page 4...
  • Page 19 2.XB.ET.0010 Main IO board (Kids BB) 2.XB.ET.0020 Sub Sound board (Kids BB) 2.XB.ET.0054 Front LCD display (Kid BB) Optocoupler isolation board 2.XB.QJ.0064 (Kids BB) 2.XB.YZ.0033 Ball Gate sensor board (Kids BB) Page 5...
  • Page 20 Parts List 3 digit time/score display (kids 2.XB.YZ.0036 3 digit time/high score display 2.XB.YZ.0037 (kids BB) 3 digit high score display (kids 2.XB.YZ.0100 5.FL.0075 Ball Pump (Kids BB) Ball Gate motor 12v 1800RPM 9.DZ.DJ.0010 (kids BB) 9.SM.ET.0041 Kids BB manual Page 6...
  • Page 21 Parts List 2.TZ.ET.0268 Acrylic(SEGA) 2.TZ.ET.0134 Sticker V04(SEGA) 2.TZ.ET.0135 Sticker V03(SEGA) Page 7...
