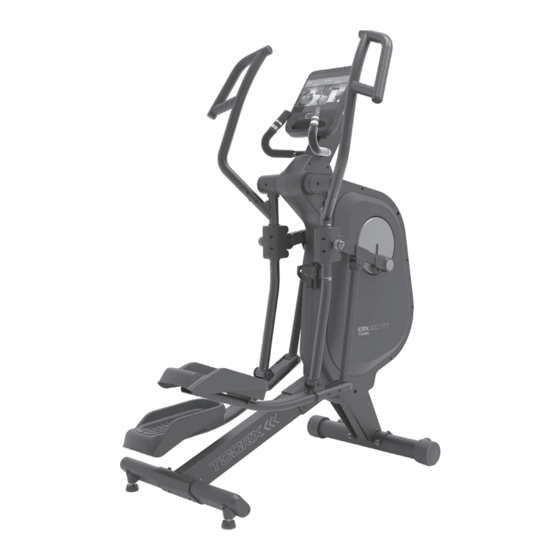

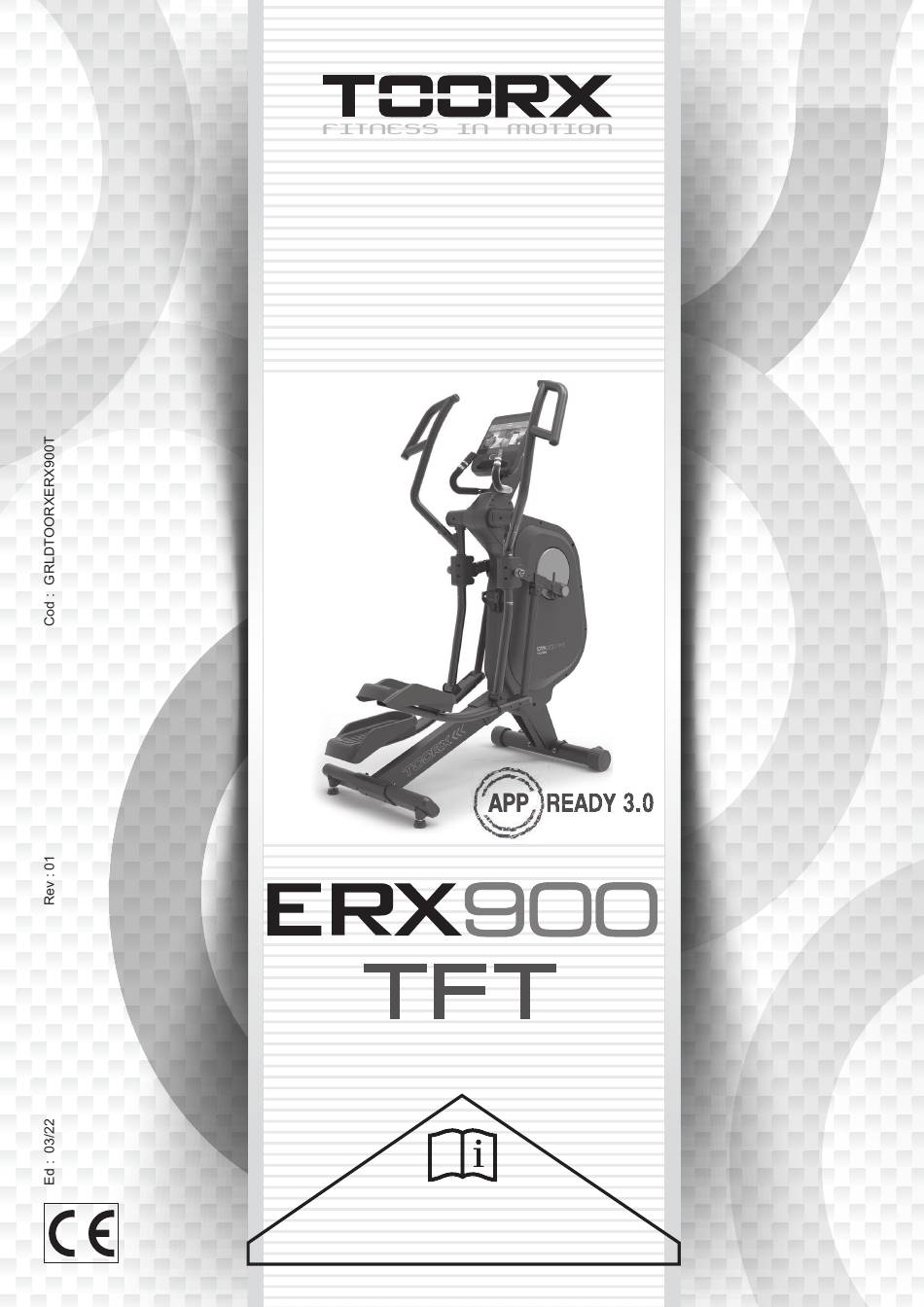

  • Page 1 INSTRUCTION...
  • Page 2 Front stabilizer Main frame Console supporting tube Console supporting tube cover (L&R) Rear stabilizer R(A9) L(A8) Adaptor Console (G1) Front pedal supporting &Console cover (G2) tube cover (A66) (A67) E2 Handle bar (R) E1 Handle bar (L) Central supporting tube Pedal supporting tube cover (L1&L2),(R1&R2) L2(A73)
  • Page 3 TOOL M6x2 (F4) Screw M8 (F2) Screw M8x65 (A107) Bolt Ø15x50.5 (F3) Washer M8 (A62) Spring washer M8 (A61) Washer M8 (A78) Screw M3x20 (A63) Screw M8x20...
  • Page 4 FRONT STABILIZER (B) ASSEMBLY Step 1. Remove the four preassembled screws (B3), spring washer (B4) and washer (B5) from the front stabilizer (B). Step 2. Attach the front stabilizer (B) on to main frame (A) with screws (B3), spring washer (B4) and washer (B5). USE TOOL:6m/m CONSOLE SUPPORTING TUBE (D) ASSEMBLY Step 1.
  • Page 5 CENTRAL SUPPORTING TUBE (F) ASSEMBLY Step 1. Attach the central supporting tube (F) onto main frame (A) with four screws (F4). Tighten the screws (F4) on the central supporting tube when the unit is lifted. USE TOOL:6m/m REAR STABILIZER (C) ASSEMBLY Step 1.
  • Page 6 CONSOLE & CONSOLE COVER ASSEMBLY Step 1. Remove four screws (G3) from the console (G). Step 2. Connect all wires. Step 3. Fit the console (G) to console supporting tube (D). Step 4. Slide the console cover (G2) on console supporting tube (D). Step 5.
  • Page 7 FRONT CONNECTING SHAFT (A53) & FRONT PEDAL SUPPORTING TUBE-L&R (A64&A65) ASSEMBLY Step 1. Attach front connecting shaft (A53) and front pedal supporting tube-L (A64) using bolt (A107), screw (A63) spring washer (A62) and washer (A61). ** Repeat same step to finish right side assembly. A107 USE TOOL:6m/m PEDAL TUBE COVER-(L&R) ASSEMBLY...

  • Page 8: Adapter Assembly

    HANDLE BAR & FRONT PEDAL SUPPORTING TUBE COVER ASSEMBLY Step 1. Remove the six preassembled screws (E4&E5) from the handle bar (E1). Step 2. Remove the two preassembled screws (A108) from the main frame (A). Step 3. Mount the handle bar (E1) onto the main frame (A) with screws (E4&E5).

  • Page 9: How To Transport The Machine

    HOW TO TRANSPORT THE MACHINE If the machine needs to be transported to a different location, lift up the rear stabilizer until the front transportation wheels engage the ground. You may now move the machine to the desired location. After the move, gently set the machine down at its new location and adjust the levelers on the bottom rear stabilizer to level the machine if needed.
  • Page 10 HOW TO ADJUST THE STRIDE Step 1. There are 2 different stride choices on the 1280ef. They are 17” and 22”. (When you choose 17”, you will see the orange sticker on front pedal supporting tube, when you choices 22”, you will see the white sticker on front pedal supporting tube.) Step 2.

  • Page 11: Console Display

    CONSOLE DISPLAY 10.1” TFT Step-by-Step Instructions Power-up  Press the Quick Start Button to turn on the console. Fig 1. TURN-ON DISPLAY After a while, the display will turn into Home Screen. Please check Figure 2. Fig 2. Home Screen *** Notice that if the console has already been opened, it will turn from black screen into Home screen directly after you press the Quick Start Button.
  • Page 12 INSTRUCTION MANUAL 1. POWER ON ( Home page): 2. Function Spec Description: A. MY TRAINING：Displays total workout data B. GET STARTED： QUICK START / INTERVAL / MAP YOUR ROUTE /Constant Power/Programs/Heart rate Control/FTMS 1. Total six modes of workout for choose 2.

  • Page 13: System Setting Operation

    3. Display Range ： ITEM Description ‧ DISTANCE Display the movement distance ‧ Display value range 0.0 ~ 99 in Cycle ‧ SPEED Display the movement speed ‧ Display Value range 0.0 ~ 99.9 ‧ Display RPM ‧ Value range 0 ~ 999 ‧...
  • Page 14 Click Logo in (photo) to login the account, select face book /GOOGLE/ We Chat / enter the email password to log IN. B. TRAINING HISTORY...
  • Page 15 C.SETTING: Click SYSTEM SETTINGS to enter into system setting (wifi, brightness, volume, BT, Language, KM/ML) Multimedia mode (slide the page left and right to select the APP icon you want to use) A. Select APP :NETLIX、YOUTUBE、SPOTIFY、KINOMAP、CHROME、FACEBOOK、 TWITTER、INSTAGRAM、AMAZON PRIME VIDEO Multimedia mode, user can press “ “...
  • Page 16 7、Function Introduction Quick Start / Interval /Map Your Route/Constant Power/Programs/Heart rate Control/FTMS...

  • Page 17: Quick Start Mode

    QUICK START MODE： 1. Setting the exercise value (DIST/TIME/CAL)，Press “START” go to training, data start to counting . 2. When start training can adjust the LEVEL UP&DOWN ，press “PAUSE” enter into break mode, press “STOP” to exit this mode. When finished, the SUMMARY displays .

  • Page 18: Interval Mode

    B. INTERVAL MODE： A. Can set the functions value of CYCLE /TIME /LEVEL /TARGET RPM separately，press “START” go to training. Warm up first, then start INTERVAL mode C. In high intensity time can adjust the load level (display the level as set ) When in rest time adjust the load level，keep display the level as set .
  • Page 19 C.MAP YOUR ROUTE MODE： 1. After entering this mode, it will detect the current region, click “ ” load the preset link,distinguish Chinese and non-Chinese region.; click “ ” can switch to the world map(GOOGLE MAP) or China Map. preset “ ”...
  • Page 20 2. Planning the map road, long press one time will display the start position “ ”，long press two times will display the final position “ ”，press three times display the turning point “ ”( with the max qty) . Slide and start training ,press “ “...
  • Page 21 D、Constant Power MODE: 1. User can set TIME/TARGET POWER , then press “START” go to training. 2. LEVEL will be adjusted according to the value of WATT. 3. Press “ START/PAUSE ”go to break mode, press “ STOP “ leave this mode. When finished, the SUMMARY displays .
  • Page 22 E. PROGRAMS MODE: 1. Set the TIME and select P1~P12 PROGRAM，press “ START” go to training. 2. When start user can adjust the LEVEL UP&DOWN，level will be adjusted according to the PROGRAM. 3. Press “PAUSE” enter into break mode, press “ STOP” leave this mode. When finished, the SUMMARY displays .
  • Page 23 F. HEART RATE CONTROL MODE: 1. User can set the AGE/ TIME/ TARGET 55% 75% 90% TAG PULSE，press “ START” go to training. 2. LEVEL will be adjusted according the goal value of heart rate, if not reached the goal value , the load level will increase ,if over the goal value level will decrease automatically.
  • Page 24 G. FTMS: 1. User can press “ON” to turn on the FTMS Bluetooth connection. 2. Once the FTMS in on, the logo will become blue.
  • Page 25 GARLANDO SPA Via Regione Piemonte, 32 - Zona Industriale D1 15068 - Pozzolo Formigaro (AL) - Italy www.toorx.it - info@toorx.it...
