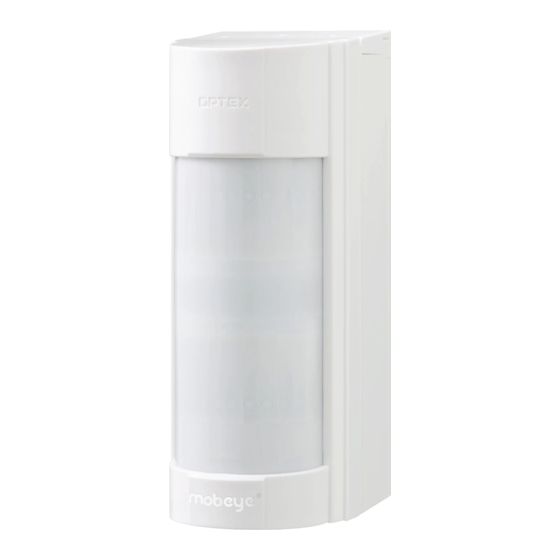

Mobeye CMVXI-R User Manual

Outdoor alarm
Hide thumbs Also See for CMVXI-R:
Table of Contents

Advertisement

Quick Links

Download this manual
USER MANUAL
Mobeye
Outdoor Alarm
®
CMVXI-R
SW version 1.n

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CMVXI-R and is the answer not in the manual?

Questions and answers

Related Manuals for Mobeye CMVXI-R

Summary of Contents for Mobeye CMVXI-R

  • Page 1 USER MANUAL Mobeye Outdoor Alarm ® CMVXI-R SW version 1.n...

  • Page 3: Table Of Contents

    Insert the SIM card Insert the batteries Connect and place the external battery Network connection and program mode 4. Programming when using the Mobeye SIM and portal Sign up in the Mobeye Internet Portal Register the Mobeye SIM card Configuration and synchronisation...
  • Page 4 • Do not let it fall from height. • Do not use in an environment where any inflammable gases, vapors or dust are present or could be present. • Repair of the device may only be carried out by people, trained for Mobeye ® repair.

  • Page 5: General Description

    In order to activate the device, a few steps are to be followed. First of all, you need to insert a SIM card. With the Mobeye SIM card, the Outdoor Alarm uses the 4G LTE-M network. This network has a strong network coverage, deep penetrability in buildings and also works in remote areas.

  • Page 6: Standard Behaviour

    Communication between the Mobeye Outdoor Alarm and the Mobeye Internet Portal takes place via data (and SMS as fallback). Messages can be sent as a push message to the Mobeye Messages app (via the portal). If a contact confirms the receipt of the message, the subsequent contacts will not receive it (alternatively a group message is possible).

  • Page 7: Outdoor Alarm With Own Sim Card

    2.2 OUTDOOR ALARM WITH OWN SIM CARD The Mobeye Outdoor Alarm, equipped with your own SIM card, has the following standard behavior as factory settings: - When a movement is detected by the passive infrared sensors, the Mobeye Outdoor Alarm sends an alarm SMS text message and calls the phone numbers programmed in by the user.

  • Page 8: Getting Started

    3. GETTING STARTED To get started with the Mobeye Outdoor Alarm, at least the following steps need to be taken in the following order: 1. Open the casing 2. Insert the SIM card 3. Insert the batteries 4. Place the external battery and close the casing 5.

  • Page 9: Insert The Sim Card

    Insert the SIM card into the module. When using the Mobeye SIM card: The Mobeye SIM card is PIN code secured and will only work in a Mobeye device. Please do not place it in another device. When using your own SIM card: An own SIM card has a “micro”...

  • Page 10: Network Connection And Program Mode

    Mobeye. 3.5 NETWORK CONNECTION AND PROGRAM MODE After placing the batteries (and external power) the Mobeye Outdoor Alarm will search for the network. The outside LED flashes green and red. This process normally takes 10-30 seconds, in a new device this can take some minutes.

  • Page 11: Programming When Using The Mobeye Sim And Portal

    Follow the instructions on the screen. You will receive an e-mail to confirm the new account. After confirmation login on the portal. If you do not receive this e-mail, please check your spam box or ask Mobeye (info@mobeye.com). 4.2 REGISTER THE MOBEYE SIM CARD...

  • Page 12: Configuration And Synchronisation

    The history displays all historical events. Click on "all events" to see the list. Device Settings The device settings can be changed via the Mobeye Internet Portal. To do this, click on the "edit" icon and type in the security code (factory setting is "1111").
  • Page 13 A free text is available as an internal comment field. This is not included in reports. Alarm dispatch and the Mobeye app In the block "Contacts for messages" you link the contact persons who receive alarm and service messages via push notification, call, text message and/or e-mail.

  • Page 14: How To Activate The Outdoor Alarm

    After a successful reset, the outside LED will blink green to indicate that the module is not configured. The SIM card is now disconnected and is visible on the "Add device" screen. The SIM card can be used again in another (or the same) Mobeye device in combination with the portal.

  • Page 15: Possible Settings

    When using Mobeye Internet Portal: an unlimited number of contacts can receive the alarm messages. These are set in the portal. When using your own SIM card: the Mobeye Outdoor Alarm can inform 5 telephone numbers in the event of an alarm. It is mandatory to set at least one number (TEL1).

  • Page 16: Inactive Time

    “0”. 5.4 AUTOMATIC ARMING / DISARMING The Mobeye Outdoor Alarm only works if the unit is armed, which is done via the on/off button. It is possible to automatically arm and disarm the unit, based on an arming and/or disarming time scheme.

  • Page 17: Exit Delay Time

    SMS, it will only call. The default both values are set to "ON". 5.1 NOTIFICATION TO PRIVATE EMERGENCY CENTER The Mobeye Outdoor Alarm can send the reports to a control room using the standard SIA DC09 protocol. This requires the use of the Mobeye...

  • Page 18: Enrolment Of New Tags

    The detector leaves the enrolment mode if no tag was hold against the tag reader for 15 seconds. In total 25 tags can be enrolled to the CMVXI-R. The same tags will function in combination with other CMVXI-R Outdoor Alarm systems, which makes it possible to operate several devices with one tag.

  • Page 19: Programming When Using Own Sim Card

    For this purpose the communication module requires network connection. PROGRAM MODE The battery-operated Mobeye Outdoor Alarm switches to the program mode after re-inserting/reconnecting all batteries or holding the tag against the reader for 5 seconds. While searching for the network connection the outside LED flashes green and red.

  • Page 20: Program At Least One Telephone Number

    In chapter 8.1 all possible SMS commands are listed. 7.3 PROGRAM AT LEAST ONE TELEPHONE NUMBER The Mobeye Outdoor Alarm is able to send messages up to 5 telephone numbers. The first telephone number (TEL1) is mandatory. This number will receive, next to alarm message, also system messages such as battery low and keep-alive message.

  • Page 21: List Of Sms Commands For Programming With Own Sim

    . . . TEL5: Delete telephone DEL1 number . . . DEL5 Identification text NAME: 20 characters Mobeye Interval ‘test SMS’ TEST: 0 ··· 30 (days) Time test message TESTTIME: hhmm Inactive time input 1 INACTIVEIN1: 0 ··· 60 (min)

  • Page 22: How To Activate The Outdoor Alarm

    In the disarmed status the Mobeye Outdoor Alarm will not send alarm notifications. The unit remains active and is able to switch on time- controlled and to send test and 'low battery voltage' messages.System reset 8.3 SYSTEM RESET...

  • Page 23: Sms Reports When Using Own Sim Card

    Mobeye Outdoor Alarm, from any telephone number. Before sending the request, bring the unit is in the program mode (see 7.1). Upon sending the command, the Mobeye Outdoor Alarm returns an SMS text message to the originator of the request. The commands are case insensitive.

  • Page 24: Technical Messages

    8.5 TECHNICAL MESSAGES In the event of technical issues the telephone number programmed in at position 1 (TEL1) receives an SMS message. Possible technical messages are: Message Reason Low batteries, external power Power is available, batteries need to be replaced. supply OK No external power supply, No external power supply, batteries are able to take...

  • Page 25: Status Feedback

    9. STATUS FEEDBACK LED pattern Status Required action Blinking green, 1 second Module not configured Configure at least one on / 1 second off telephone number. 1 green flash every 3 Module is switched on, No action required. seconds powered by batteries Green LED stays on Module is switched on, No action required.
  • Page 26 : -10 °C until +50 ° For more information, visit www.mobeye.com. ® This manual is published by Mobeye All rights, the translation included are reserved. Any reproduction, either photocopy, microfilm or saved in an automated data dictionary, only after written approval of the Publisher. Reprinting, even in summary, is prohibited.
