- Page 1 USER MANUAL Mobeye CM-Guard ® CM4000 SW version 1.n...
-
Page 3: Table Of Contents
Connect a sensor to the input Insert the batteries Connect an external power supply (optionally) Network connection and program mode 4. Programming when using the Mobeye SIM and portal Sign up in the Mobeye Internet Portal Register the Mobeye SIM card Configuration and synchronisation... - Page 4 • Do not let it fall from height. • Do not use in an environment where any inflammable gases, vapors or dust are present or could be present. • Repair of the device may only be carried out by people, trained for Mobeye ® repair.
-
Page 5: General Description

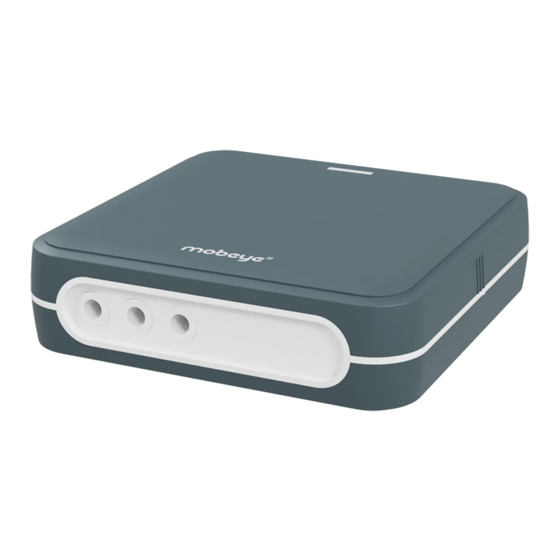

1. GENERAL DESCRIPTION The Mobeye CM-Guard is a monitoring device with an integrated communication module used to send alarm notifications after the activation of an input. It can run battery operated or externally powered. If an external power supply is used, it can also send a power failure alarm. -
Page 6: Standard Behaviour
The Mobeye CM-Guard with Mobeye SIM card and registered on the Mobeye Internet Portal, has the following behaviour as factory settings: - In case one of the inputs is activated by a sensor, the Mobeye CM-Guard sends an alarm message to the Mobeye Internet Portal. The Portal forwards the alarm as push notification, call (spoken message), text message and/or e-mail to the ‘alarm contacts’. -
Page 7: Mobeye Cm-Guard With Own Sim Card
The Mobeye CM-Guard, equipped with your own SIM card, has the following standard behavior as factory settings: - When one of the inputs is activated by a sensor, the Mobeye CM-Guard sends an alarm SMS text message and calls the phone numbers programmed in by the user. -
Page 8: Getting Started
3. GETTING STARTED To get started with the Mobeye CM-Guard, at least the following steps need to be taken in the following order: 1. Open the casing and insert the SIM card 2. Connect a sensor to the input 3. Insert the batteries 4. -
Page 9: Connect A Sensor To The Input
When using the Mobeye SIM card: The Mobeye SIM card is PIN code secured and will only work in a Mobeye device. Please do not place it in another device. When using your own SIM card: An own SIM card has a “micro” format, is suitable for the 2G network and can make calls and send text messages. -
Page 10: Connect An External Power Supply (Optionally)
3.5 NETWORK CONNECTION AND PROGRAM MODE After placing the batteries (and external power) the Mobeye CM-Guard will search for the network. The outside LED flashes green and red. This process normally takes 10-30 seconds, in a new device this can take some minutes. -
Page 11: Programming When Using The Mobeye Sim And Portal
Follow the instructions on the screen. You will receive an e-mail to confirm the new account. After confirmation login on the portal. If you do not receive this e-mail, please check your spam box or ask Mobeye (info@mobeye.com). 4.2 REGISTER THE MOBEYE SIM CARD... -
Page 12: Configuration And Synchronisation
4.3 CONFIGURATION AND SYNCHRONISATION The device settings can be programmed in the Mobeye Internet Portal. In this way you prepare the settings, to be picked up by the device. Since the Mobeye device is leading in the communication between the portal and the device, the data synchronisation is done after: 1) any message to the portal (e.g. - Page 13 Device Settings The device settings can be changed via the Mobeye Internet Portal. To do this, click on the "edit" icon and type in the security code (factory setting is "1111"). See chapter 5 for the description per setting. After saving the new settings, they must be retrieved by the device (synchronized).
-
Page 14: How To Activate The Cm-Guard
4.5 HOW TO ACTIVATE THE CM-GUARD After the previous steps the Mobeye CM-Guard is ready for use. It is armed automatically. In order to switch off (disarm) the Mobeye CM-Guard: - Press the button at the backside for 1 second. The green LED switches off to indicate the disarmed status. -
Page 15: System Reset
The security code is back to factory settings as well. The SIM card is now disconnected and is visible on the "Add device" screen. The SIM card can be used again in another (or the same) Mobeye device in combination with the portal. -
Page 16: Possible Settings
5. POSSIBLE SETTINGS The Mobeye CM-Guard has many setting options that influence the behaviour of the module. If connected on the Mobeye Internet Portal, the settings are prepared in the portal (see chapter 4). If your own SIM card is used, programming is done via SMS commands (see chapter 6). -
Page 17: Input Type
It is possible to connect a sensor with an analog output value between 1V and 48V, by placing a resistor or relay between the sensor and the input. For an explanation, see the support page on www.mobeye.com. 5.4 ALARM DELAY TIME The input delay time defines the time that the input is triggered before an alarm is initiated. -
Page 18: Alarm Restore Message
"0". 5.10 AUTOMATIC ARMING / DISARMING The Mobeye CM-Guard only works if the unit is armed, which is done via the on/off button. It is possible to automatically arm and disarm the unit, based on an arming and/or disarming time scheme. Two schemes can be entered,... -
Page 19: Buttonlock
0 second. 5.13 LOW POWER MODE The low power mode is only important with an externally powered Mobeye CM-Guard. If the (factory) mode is set to “OFF”, the communication module will always have a network connection. When set to “ON” the behaviour is... -
Page 20: Call And/Or Sms (Own Sim Cards)
turned off as much as possible to minimize power consumption. Note: in low power mode the module cannot be reached via SMS commands. 5.14 CALL AND/OR SMS (OWN SIM CARDS) When using your own SIM card, by default the CM-Guard will call and send SMS text messages. -
Page 21: Programming When Using Own Sim Card
If the CM-Guard is connected to an external power supply, it has continuous network connection and is permanently in program mode. A battery-operated Mobeye CM-Guard switches to the program mode after re-inserting the batteries or pressing the button at the back for 5 seconds. -
Page 22: Program At Least One Telephone Number
In chapter 7.1 all possible SMS commands are listed. 6.3 PROGRAM AT LEAST ONE TELEPHONE NUMBER The Mobeye CM-Guard is able to send messages up to 5 telephone numbers. The first telephone number (TEL1) is mandatory. This number will receive, next to alarm message, also system messages such as battery low and keep-alive message. -
Page 23: List Of Sms Commands For Programming With Own Sim
. . . TEL5: Delete telephone DEL1 number . . . DEL5 Identification text NAME: 20 characters Mobeye Interval ‘test SMS’ TEST: 0 ··· 30 (days) Time test message TESTTIME: hhmm Input type input 1 TYPEIN1: NO, NC Input type input 2... - Page 24 Setting SMS command Options Default value SMS on/off SMS: ON, OFF Exit delay DELAYEXIT: 0 ··· 999 (sec) Alarm text input 1 TEXT1: 20 characters Alarm 1 Alarm text input 2 TEXT2: 20 characters Alarm 2 Alarm text power failure TEXT3: 20 characters Power failure Alarm text power restore TEXT4:...
-
Page 25: How To Activate The Cm-Guard
7.2 HOW TO ACTIVATE THE CM-GUARD After the previous steps the Mobeye CM-Guard is ready for use. It is armed automatically. In order to switch off (disarm) the Mobeye CM-Guard: - Press the button at the backside for 1 second. The green LED switches off to indicate the disarmed status. -
Page 26: Sms Reports When Using Own Sim Card
The signal strength of the used mobile network can be requested. If the network is weak, it is advised to use a SIM card of another network provider or an external antenna (a Mobeye accessory). The signal strength can be requested by sending following SMS text message:... -
Page 27: Technical Messages
7.5 TECHNICAL MESSAGES In the event of technical issues the telephone number programmed in at position 1 (TEL1) receives an SMS message. Possible technical messages are: Message Reason Low batteries, external power Power is available, batteries need to be replaced. supply OK No external power supply, No external power supply, batteries are able to take... -
Page 28: Status Feedback
8. STATUS FEEDBACK LED pattern Status Required action Blinking green, 1 second Module not configured Configure at least one on / 1 second off telephone number. 1 green flash every 3 Module is switched on, No action required. seconds powered by batteries Green LED stays on Module is switched on, No action required. - Page 29 Publisher. Reprinting, even in summary, is prohibited. This user manual meets the technical requirements at the moment of printing. Changes in technology and equipment are reserved. © Copyright 2021 by Mobeye, version CM4000-EN210601...
