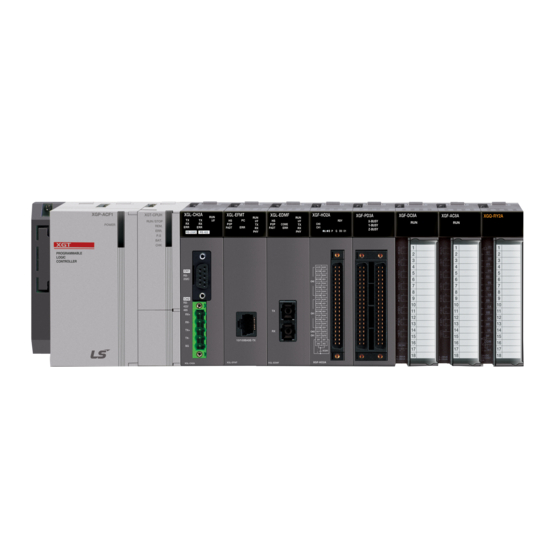

LS Industrial Systems XGT Series Manual
  1. Manuals
  2. Brands
  3. LS Industrial Systems Manuals
  4. Controller
  5. XGT Series
  6. Manual

LS Industrial Systems XGT Series Manual

Cnet driver
Hide thumbs Also See for XGT Series:

Advertisement

Quick Links

Download this manual
XGT(XGK-CPU), XGB(XBC-CPU/XBM-CPU) Series
Support version
XDesignerPlus Ver2.0 Communication device
LS Industrial Systems Co., Ltd
OS
V4.0 and over
XDesignerPlus
4.0.0.0 and over
CONTENTS
Thank you for using TOP series of M2I corporation.
Please read this manual carefully to know connection methods and
procedures of "TOP to External device".
1.
System configuration
A section for showing connectable external devices, serial signal
types, connection configurations. Refer this section to select the
right system configuration.
2.
Selection of TOP, External device
A section for selecting a Top model and the external device.
3.
Example of system setting
A section for explaining examples to connect communications of
TOP to External Device.
Select the correct example in your case according to "1. System
configuration"
4.
Communication setting
A section for Communication setting.
The setting should be the same with the external device.
5.
Cable diagram
A section for cable to connect to external device.
Select a suitable cable diagram for your system.
6.
Usable address
A section for usable address to communicate with external
device.
CNET Driver
Page 2
Page4
Page 5
Page 27
Page 30
Page 35
1 / 41

Advertisement

loading
Need help?

Need help?

Do you have a question about the XGT Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for LS Industrial Systems XGT Series

Summary of Contents for LS Industrial Systems XGT Series

  • Page 1 LS Industrial Systems Co., Ltd XGT(XGK-CPU), XGB(XBC-CPU/XBM-CPU) Series CNET Driver Support version V4.0 and over XDesignerPlus 4.0.0.0 and over CONTENTS Thank you for using TOP series of M2I corporation. Please read this manual carefully to know connection methods and procedures of “TOP to External device”.

  • Page 2: System Configuration

    1. System configuration System configuration of TOP and “LS Industrial Systems Co., Ltd – XGT(XGK), XGB(XBC/XBM) Series”. Series Link I/F Comm. type System setting Cable 4.1 setting ex 1 5.1 cable diagram 1 RS232 XGL-C22A, CH1 ( 5 Page ) ( 30 Page ) 4.2 setting ex 2...
  • Page 3 ■ Connection configuration ㆍ1 : 1(TOP 1 unit to External device 1 unit) connection – It is available with RS232C/422/485. ㆍ1 : N(TOP 1 unit to External device N unit) connection – It is available with RS422/485. XDesignerPlus Ver2.0 Communication device 3 / 41...
  • Page 4 External Device Vendor Select vendor of the external device which is communicated with TOP. Select “LS Industrial Systems Co., Ltd”. Select a model name of the external device which is communicated with TOP. Select “XGT(XGK), XGB(XBC/XBM) Series CNET”. Check whether the external device you want to use is connectable or not in “1.
  • Page 5 3. Example of system setting Set Communication interface of TOP and " XGT(XGK-CPU),XGB(XBC-CPU/XBM-CPU)Series CNET Driver". 3.1 Example 1 Set your system as below. Item External device Note Serial Signal Level (port/channel) RS-232 (COM2) RS-232 (CH 1) User set Station number (PLC Address) ─...
  • Page 6 Run File > New File”. Select CPU Type and push OK button refer to “1. system configuration”. Connect CPU LOADER port of XGT Series and serial port of PC by serial cross cable. (If there is USB port in CPU, connect USB.) Run [Online] >...
  • Page 7 3.2 Example 2 Set your system as below. Item External device Note Serial Signal Level (port/channel) RS-232 (COM2) RS-232 (CH 2) User set Station number (PLC Address) ─ User set Serial Baud rate [BPS] 115200 User set Serial Data bit [Bit] User set Serial Stop bit...
  • Page 8 Run File > New File”. Select CPU Type and push OK button refer to “1. system configuration”. Connect CPU LOADER port of XGT Series and serial port of PC by serial cross cable. (If there is USB port in CPU, connect USB.) Run [Online] >...
  • Page 9 3.3 Example 3 Set your system as below. Item External device Note Serial Signal Level (port/channel) RS-422 (4 wire, COM2) RS-422 (4wire, CH 1) User set Station number (PLC Address) ─ User set Serial Baud rate [BPS] 115200 User set Serial Data bit [Bit] User set...
  • Page 10 Run File > New File”. Select CPU Type and push OK button refer to “1. system configuration”. Connect CPU LOADER port of XGT Series and serial port of PC by serial cross cable. (If there is USB port in CPU, connect USB.) Run [Online] >...
  • Page 11 3.4 Example 4 Set your system as below. Item External device Note Serial Signal Level (port/channel) RS-485 (2 wire, COM2) RS-485 (2 wire, CH 1) User set Station number (PLC Address) ─ User set Serial Baud rate [BPS] 115200 User set Serial Data bit [Bit] User set...
  • Page 12 Run File > New File”. Select CPU Type and push OK button refer to “1. system configuration”. Connect CPU LOADER port of XGT Series and serial port of PC by serial cross cable. (If there is USB port in CPU, connect USB.) Run [Online] >...
  • Page 13 3.5 Example 5 Set your system as below. Item External device Note Serial Signal Level (port/channel) RS-422 (4 wire, COM2) RS-422 (4wire, CH 2) User set Station number (PLC Address) ─ User set Serial Baud rate [BPS] 115200 User set Serial Data bit [Bit] User set...
  • Page 14 Run File > New File”. Select CPU Type and push OK button refer to “1. system configuration”. Connect CPU LOADER port of XGT Series and serial port of PC by serial cross cable. (If there is USB port in CPU, connect USB.) Run [Online] >...
  • Page 15 3.6 Example 6 Set your system as below. Item External device Note Serial Signal Level (port/channel) RS-485 (2 wire, COM2) RS-485 (2 wire, CH 2) User set Station number (PLC Address) ─ User set Serial Baud rate [BPS] 115200 User set Serial Data bit [Bit] User set...
  • Page 16 Run File > New File”. Select CPU Type and push OK button refer to “1. system configuration”. Connect CPU LOADER port of XGT Series and serial port of PC by serial cross cable. (If there is USB port in CPU, connect USB.) Run [Online] >...
  • Page 17 3.7 Example 7 Set your system as below. Item External device Note Serial Signal Level (port/channel) RS-232 (COM2) RS-232 (CH 1) User set Station number (PLC Address) ─ User set Serial Baud rate [BPS] 115200 User set Serial Data bit [Bit] User set Serial Stop bit...
  • Page 18 Run File > New File”. Select CPU Type and push OK button refer to “1. system configuration”. Connect CPU LOADER port of XGT Series and serial port of PC by serial cross cable. (If there is USB port in CPU, connect USB.) Run [Online] >...
  • Page 19 3.8 Example 8 Set your system as below. Item External device Note Serial Signal Level (port/channel) RS-485 (2 wire, COM2) RS-485 (2 wire, CH 2) User set Station number (PLC Address) ─ User set Serial Baud rate [BPS] 115200 User set Serial Data bit [Bit] User set...
  • Page 20 Run File > New File”. Select CPU Type and push OK button refer to “1. system configuration”. Connect CPU LOADER port of XGT Series and serial port of PC by serial cross cable. (If there is USB port in CPU, connect USB.) Run [Online] >...
  • Page 21 3.9 Example 9 Set your system as below. Item External device Note Serial Signal Level (port/channel) RS-232 (COM2) RS-232 (CH 2) User set Station number (PLC Address) ─ User set Serial Baud rate [BPS] 115200 User set Serial Data bit [Bit] User set Serial Stop bit...
  • Page 22 Run File > New File”. Select CPU Type and push OK button refer to “1. system configuration”. Connect CPU LOADER port of XGT Series and serial port of PC by serial cross cable. (If there is USB port in CPU, connect USB.) Run [Online] >...
  • Page 23 3.10 Example 10 Set your system as below. Item External device Note Serial Signal Level (port/channel) RS-422 (4 wire, COM2) RS-422 (4 wire, CH 2) User set Station number (PLC Address) ─ User set Serial Baud rate [BPS] 115200 User set Serial Data bit [Bit] User set...
  • Page 24 Run File > New File”. Select CPU Type and push OK button refer to “1. system configuration”. Connect CPU LOADER port of XGT Series and serial port of PC by serial cross cable. (If there is USB port in CPU, connect USB.) Run [Online] >...
  • Page 25 3.11 Example 11 Set your system as below. Item External device Note Serial Signal Level (port/channel) RS-485 (2 wire, COM2) RS-485 (2 wire, CH 2) User set Station number (PLC Address) ─ User set Serial Baud rate [BPS] 115200 User set Serial Data bit [Bit] User set...
  • Page 26 Run File > New File”. Select CPU Type and push OK button refer to “1. system configuration”. Connect CPU LOADER port of XGT Series and serial port of PC by serial cross cable. (If there is USB port in CPU, connect USB.) Run [Online] >...

  • Page 27: Communication Setting

    4. Communication setting Communication setup can be set on XDesignerPlus or TOP Main Menu. The setting should be the same with the external device. 4.1 XDesignerPlus setup Set [Project >Project property] of XDesignerPlus as below. ■ [ Project >Project Property > Project >TOP Setting > TOP Name ] Set communication interface of TOP.
  • Page 28 Station Num. in Diag.[0~31] Setup [Station Num.(0~31)] using "4.3 Communication Diagnosis” XDesignerPlus Ver2.0 Communication device 28 / 41...
  • Page 29 4.2 Set TOP Main Menu - When a buzzer is on during the power reset, touch 1 spot at the upper LCD to move to "TOP Management Main" display. - Set up driver interface at TOP according to below Step1 → Step2. (Press “TOP COM 2/1 setup”...
  • Page 30 4.3 Communication Diagnosis ■ TOP - Confirming interface setting condition between external devices - Move to Menu by clicking the top side of LCD screen as resetting the power of TOP. - Confirms if Port [COM 2 or COM 1] setting that is willing to use in [Communication Settings] matches with the setting of external devices.

  • Page 31: Cable Diagram

    5. Cable diagram This Chapter introduces cable wiring guidance for communication between TOP and PLC concerned. (The cable diagrams in this section may differ from the recommendations of LS Industrial Systems Co., Ltd) 5.1 Cable Diagram Table 1 ■ 1 : 1 Connection...
  • Page 32 Front View of, Front View of D-SUB 9 Pin D-SUB 6 Pin (male, convex) (male, convex) Pin assignment of the cable connector is seen on the face of Front View. XDesignerPlus Ver2.0 Communication device 32 / 41...
  • Page 33 5.2 Cable Diagram Table 2 ■ 1 : 1 connection (A) XTOP COM 2 port(9pin) XTOP COM2 Cable Wiring Pin Assignment *1 Signal Pin No. Signal Pin Assignment TX– RX– Front View of D-SUB 9 Pin (male, convex) Pin assignment of the cable connector is seen on the face of Front View. (B) XTOP COM 2 port(15pin) XTOP COM2 Cable Wiring...
  • Page 34 TX– RX– Front View of Terminal block 5 Pin Pin assignment of the cable connector is seen on the face of Front View.1 ■ 1 : N connection – Connect as below refer to 1:1 connection. Direction of Direction of cable connection and signal cable connection and signal Signal...
  • Page 35 5.3 Cable Diagram Table 3 ■ 1 : 1 connection (A) XTOP COM 2 port(9pin) XTOP COM2 Cable Wiring Pin Assignment *1 Signal Pin No. Signal Pin Assignment TX– RX– Front View of D-SUB 9 Pin (male, convex) Pin assignment of the cable connector is seen on the face of Front View. (B) XTOP COM 2 port(15pin) XTOP COM2 Cable Wiring...
  • Page 36 Signal cable connection and signal Signal cable connection and signal Signal TX– TX– RX– RX– XDesignerPlus Ver2.0 Communication device 36 / 41...
  • Page 37 5.4 Cable Diagram Table 4 ■ 1 : 1 connection (A) XTOP COM 2 port(9pin) XTOP COM2 Cable Wiring Pin Assignment *1 Signal Pin No. Signal Pin Assignment – Front View of D-SUB 9 Pin (male, convex) Pin assignment of the cable connector is seen on the face of Front View. (B) XTOP COM 2 port(15pin) XTOP COM2 Cable Wiring...
  • Page 38 Pin assignment of the cable connector is seen on the face of Front View.11 XDesignerPlus Ver2.0 Communication device 38 / 41...
  • Page 39 5.5 Cable Diagram Table 5 ■ 1 : 1 connection (A) XTOP COM 2 port(9pin) XTOP COM2 Cable Wiring Pin Assignment *1 Signal Pin No. Signal Pin Assignment – Front View of D-SUB 9 Pin (male, convex) Pin assignment of the cable connector is seen on the face of Front View. (B) XTOP COM 2 port(15pin) XTOP COM2 Cable Wiring...
  • Page 40 ■ 1 : N / N : 1 connection – Connect as below refer to 1:1 connection. Direction of Direction of cable connection and signal cable connection and signal Signal Signal Signal 485(+) 485(+) 485(–) 485(–) XDesignerPlus Ver2.0 Communication device 40 / 41...
  • Page 41 6. Available Address The available address of device are as below. Device(address) range might be different according to series/type of CPU. TOP Series are capable of supporting maximum address range which is available in external Device. Be careful get out of address range. Device Bit Address Word Address...
