XGT(XGK-CPU), XGB(XBC-CPU/XBM-CPU) Series
Support version
XDesignerPlus Ver2.0 Communication Manual
LS Industrial Systems Co., Ltd.
OS
V4.0 and over
XDesignerPlus
4.0.0.0 and over
CONTENTS
Thank you for using TOP series of M2I corporation.
Please read this manual carefully to know connection methods and
procedures of "TOP to External device"
1.
System configuration
A section for showing connectable external devices, serial signal
types, connection configurations. Refer this section to select the
right system configuration.
2.
Selection of TOP, External device
A section for selecting a Top model and the external device.
3.
Example of system setting
A section for explaining examples to connect communications of
TOP to External Device.
Select the correct example in your case according to "1. System
configuration".
4.
Communication setting
A section for Communication setting.
The setting should be the same with the external device.
5.
Usable address
A section for usable address to communicate with external
device.
FENET Driver
Page 2
Page3
Page 4
Page 8
Page 10
1 / 13
Advertisement
Related Manuals for LS Industrial Systems XGK Series
Summary of Contents for LS Industrial Systems XGK Series
- Page 1 LS Industrial Systems Co., Ltd. XGT(XGK-CPU), XGB(XBC-CPU/XBM-CPU) Series FENET Driver Support version V4.0 and over XDesignerPlus 4.0.0.0 and over CONTENTS Thank you for using TOP series of M2I corporation. Please read this manual carefully to know connection methods and procedures of “TOP to External device”...
-
Page 2: System Configuration

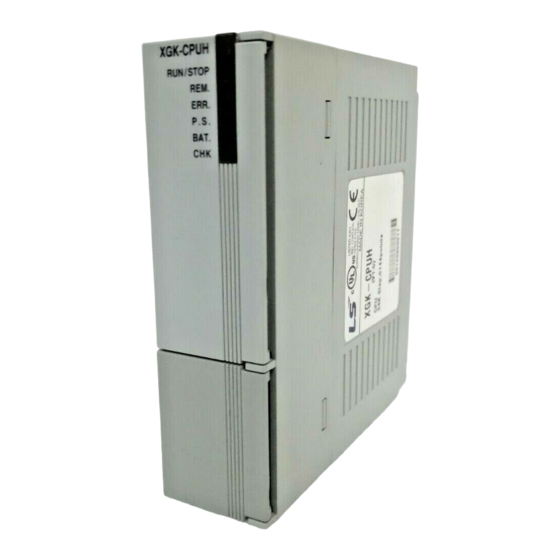

1. System configuration System configuration of TOP and “LS Industrial Systems Co., Ltd – XGT(XGK), XGB(XBC/XBM) Series” is as below. Series Link I/F Communication type System setting cable XGK-CPUH setting ex 1 Ethernet (UDP) XGK-CPUA ( 4 page ) XGK-CPUS... - Page 3 External Device Vendor Select vendor of the external device which is communicated with TOP. Select “LS Industrial Systems Co., Ltd”. Select a model name of the external device which is communicated with TOP. Select “XGT(XGK), XGB(XBC/XBM) Series FENET”. Check whether the external device you want to use is connectable or not in “1.
-
Page 4: System Setting
3. System setting Set Communication interface of TOP and external device as below. 3.1 Example 1 Set your system as below. Item XGT(XGI/XGR), XGB(XEC) Series Note IP Address 192.168.0.50 192.168.0.51 User Set *1)2) Protocol XGT server User Set Port 1024 2005 User Set Network address TOP and external device must be same. - Page 5 (2) External device setup Run "XG-PD Editor" program for communication setting and set as below. If you want to change communication interface, modify refer to PLC manual. Don't use overlapping IP address in unit network. Run File > New File”. Select CPU Type and push OK button refer to “1. system configuration”. Connect CPU LOADER port of XGT Series and serial port of PC by serial cross cable.
- Page 6 client can't connect.) Transfer setting contents to CPU at [Online] > [Parameter Write]. Reset PLC at [Online] > [Reset] > [Reset PLC]. XDesignerPlus Ver2.0 Communication Manual 6 / 13...
- Page 7 3.2 Example 2 Set your system as below. Item XGT(XGI/XGR), XGB(XEC) Series Note IP Address 192.168.0.50 192.168.0.51 User set *1)2) Protocol XGT server User set Port 1024 2004 User set Network address TOP and external device must be same. (IP's three place : 192.168.000 ) Don't use same address in same network.
- Page 8 (2) External device setup Run "XG-PD Editor" program for communication setting and set as below. If you want to change communication interface, modify refer to PLC manual. Don't use overlapping IP address in unit network. Run File > New File”. Select CPU Type and push OK button refer to “1. system configuration”. Connect CPU LOADER port of XGT Series and serial port of PC by serial cross cable.
- Page 9 Transfer setting contents to CPU at [Online] > [Write]. Reset PLC at [Online] > [Reset PLC]. XDesignerPlus Ver2.0 Communication Manual 9 / 13...
-
Page 10: Communication Setting
item Description Serial Signal Level Setup signal level(RS-232C/422/485) of PLC connected with COM2/1 port. (COM1 only RS-232C) Serial Baud Rate Setup [communications Baud rate] of PLC connected with COM2/1 port. Serial Data Bit Setup [Data Bit] of PLC connected with COM2/1 port. Serial Stop Bit Setup [Stop Bit] of PLC connected with COM2/1 port. - Page 11 4.2 TOP main menu setup item - When a buzzer is on during the power reset, touch 1 spot at the upper LCD to move to "TOP Management Main" display. - Set up driver interface at TOP according to below Step1 → Step2. (Press “TOP ethernet setup”...
- Page 12 4.3 Communication diagnosis ■ TOP - Confirming interface setting condition between external devices - Move to Menu by clicking the top side of LCD screen as resetting the power of TOP. - [Main Menu >Communication setting] Confirm if detail in number 20~24 is identical to the setup information of “■Setup exercise 1”.
- Page 13 5. Available address The available address of device are as below. Device(address) range might be different according to series/type of CPU. TOP Series are capable of supporting maximum address range which is available in external Device. Be careful get out of address range. Device Bit Address Word Address...
