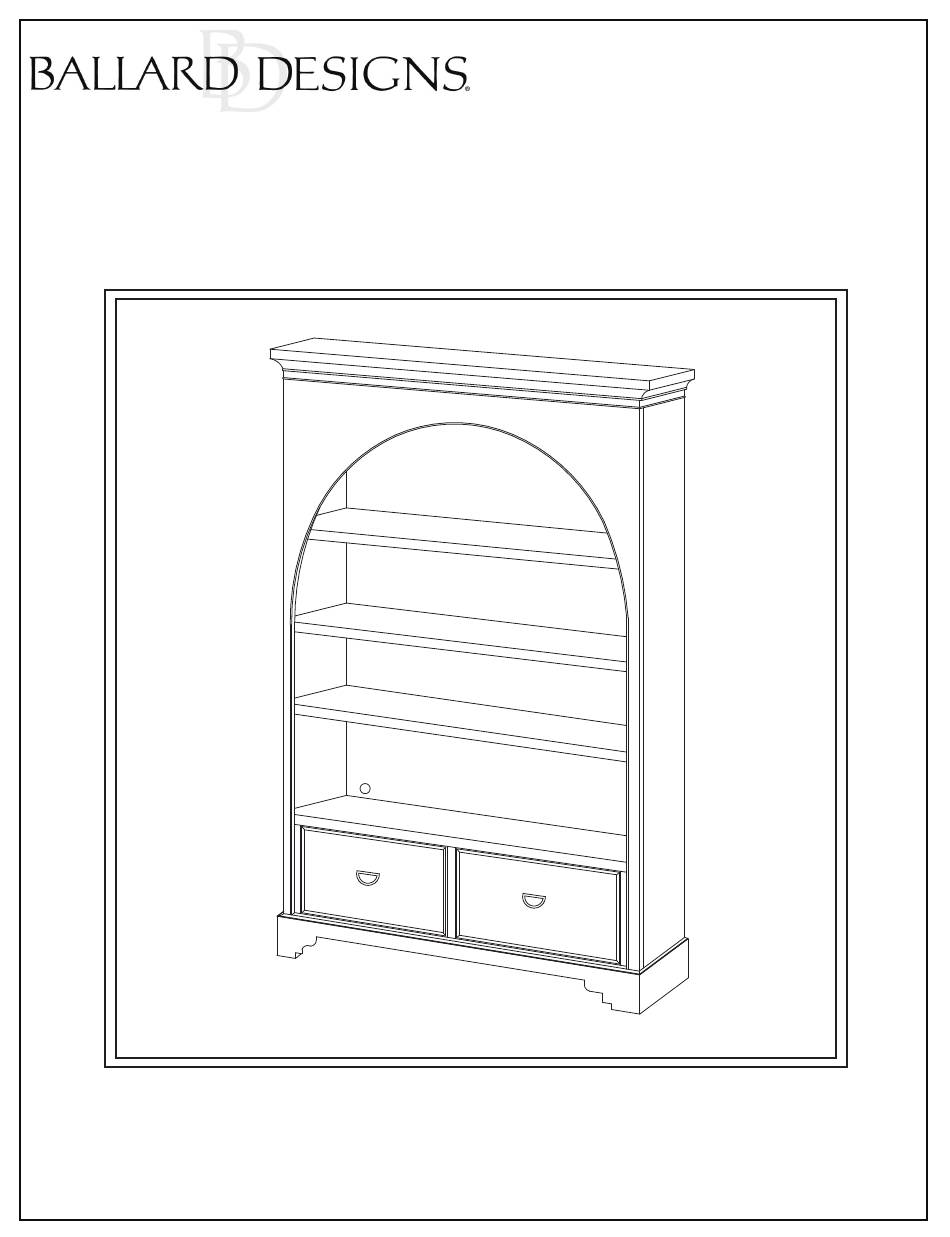

- Page 1 Customer Service: 800-367-2810 Online: www.ballarddesigns.com PRODUCT NAME: Stephanie Bookcase ITEM NUMBER: MV441 ASSEMBLED DIMENSIONS : 84”H x 61”W x 20”D PRODUCTS ARE NOT INTENDED MADE IN INDONESIA FOR COMMERCIAL USE. UPDATED: 7-21-2020 Page 1 of 6...
-
Page 2: Required Tools
Assemble in location for intended use. REQUIRED TOOLS: Prevent accidentally discarding small parts or Phillips Screwdriver, Pencil, hardware. Retain all carton contents until assembly Drill with 5/16” Bit and installation are complete. -Two person assembly suggested. Ltr. Qty. Hardware Included Remove all parts, hardware and protective packaging from carton Shelf Supports... - Page 3 Assemble in location for intended use. STEP 1: Determine placement for each Shelf (H) then insert Shelf Supports (A) into corresponding pre-drilled holes. STEP 2: Bookcase is equipped with Rotary Levelers installed under each corner. Move Bookcase (I) to final installation location, push against wall and check for level. If necessary, Bookcase may be adjusted by carefully lifting applicable corner and turner Leveler clockwise/counterclockwise.
- Page 4 Tip-Over Hazard STEPS 3 through 5 cover anchoring unit to wall which MUST be completed before use. STEP 3: Determine installation location, then identify two *wall studs behind bookcase. Push bookcase into place then slide each L-Bracket (F) over top of Bookcase and center in front of each *wall stud. Use pencil to mark wall at top of each Bracket.
- Page 5 STEP 5: Move Bookcase (I) back into place and slide under both L-Brackets (F) and attach using Top Screws (C). Use a Phillips Screwdriver to firmly tighten. Cleaning and Care Periodically dust with a soft, dry cloth. Prevent finish damage: do not use alchohol based cleaners or polishers.
- Page 6 HOW TO INSTALL AN EXPANSION BOLT STEP 1: For Bracket (F) location in open Drywall, first use a 5/16” bit and drill a small pilot hole. Next, use a Hammer to GENTLY tap in Expansion Bolt (G) until teeth sink evenly into wall surface. Drywall 5/16”...
