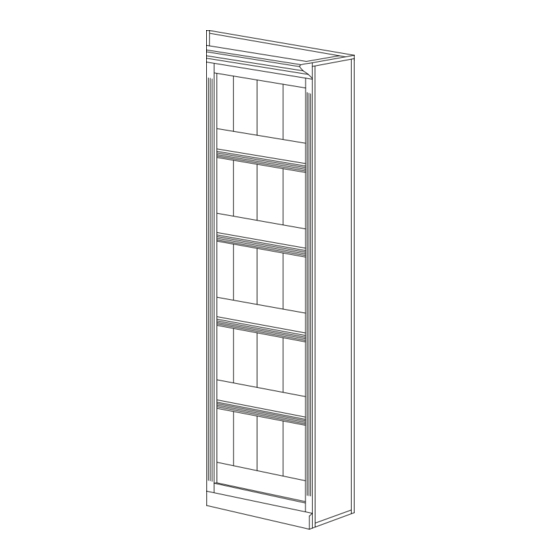

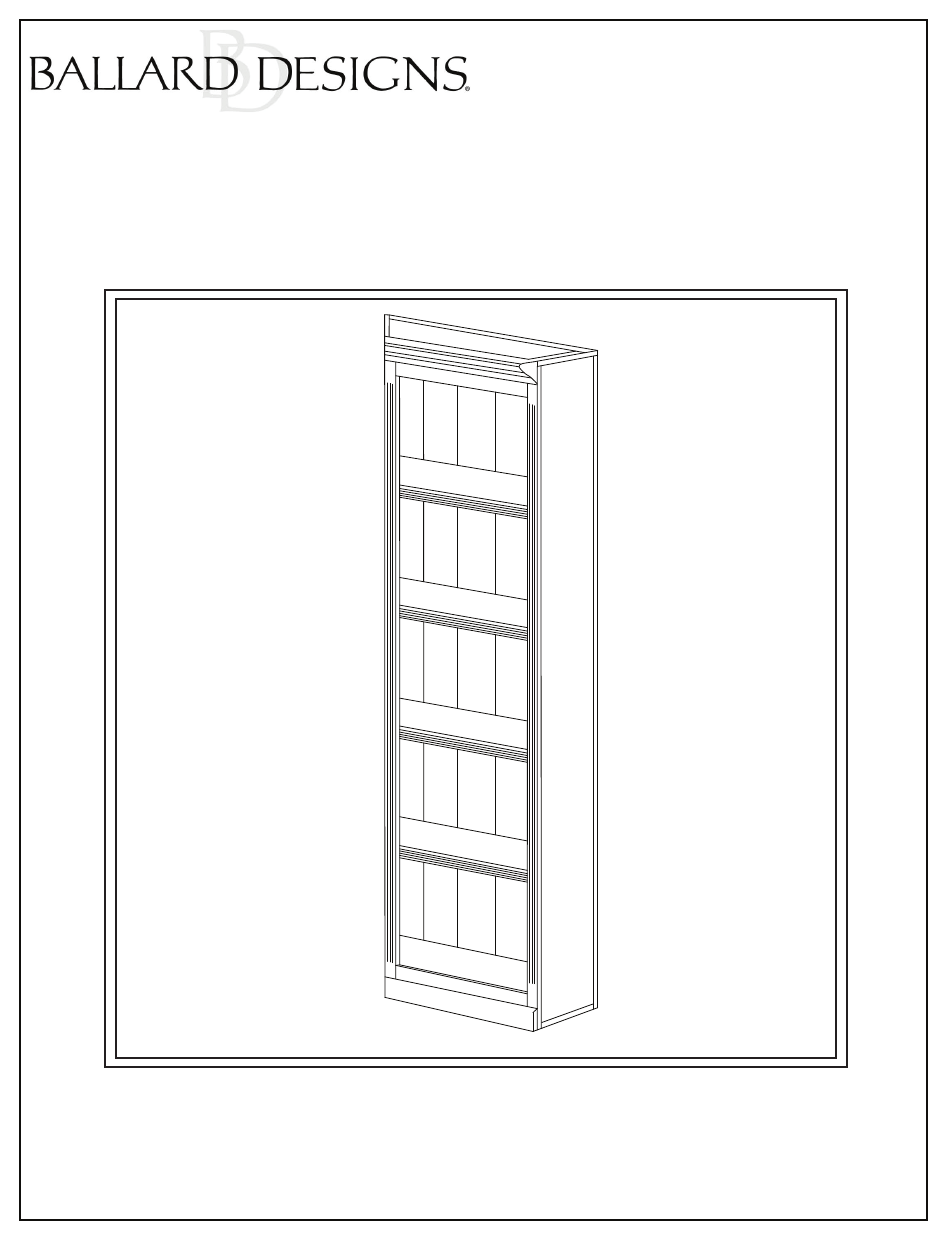

- Page 1 Customer Service: 800-367-2810 Online: www.ballarddesigns.com PRODUCT NAME: Tuscan Corner Bookcase Right ITEM NUMBER: MV198 ASSEMBLED DIMENSIONS : 81 3/4”H x 26 1/2”W x 15”D PRODUCTS ARE NOT INTENDED IMPORTED FOR COMMERCIAL USE. UPDATED: 8-7-2019 Page 1 of 4...
- Page 2 REQUIRED TOOLS: Phillips Screwdriver -Two person assembly suggested. Remove all parts, hardware and protective packaging from carton Hardware Packet and carefully arrange on a clean, level, padded surface. NOTE: To avoid accidentally Shelves discarding small parts or hardware, retain all carton contents until Ltr.
- Page 3 STEP 1: Place Bookcase in desired location for use. Determine Shelf (C) placement then insert Shelf Supports (A) into corresponding pre-drilled holes inside Bookcase. Gently place Shelf upon Supports. STEP 2: Bookcase is equipped with Rotary Levelers under each bottom corner. If necessary, gently lift corner and turn Leveler clockwise/counterclockwise to adjust.
- Page 4 STEP 3: ANTI-TIP ANCHORING HARDWARE INSTALLATION Ltr. Qty. Hardware Included Small Screw Large Screw Bracket Retention Belt 1. Locate and mark a Wall Stud behind Bookcase at location for installation. 2. Corresponding to Stud location, attach one Bracket (C) to back of Bookcase using Small Screw (B). 3.
