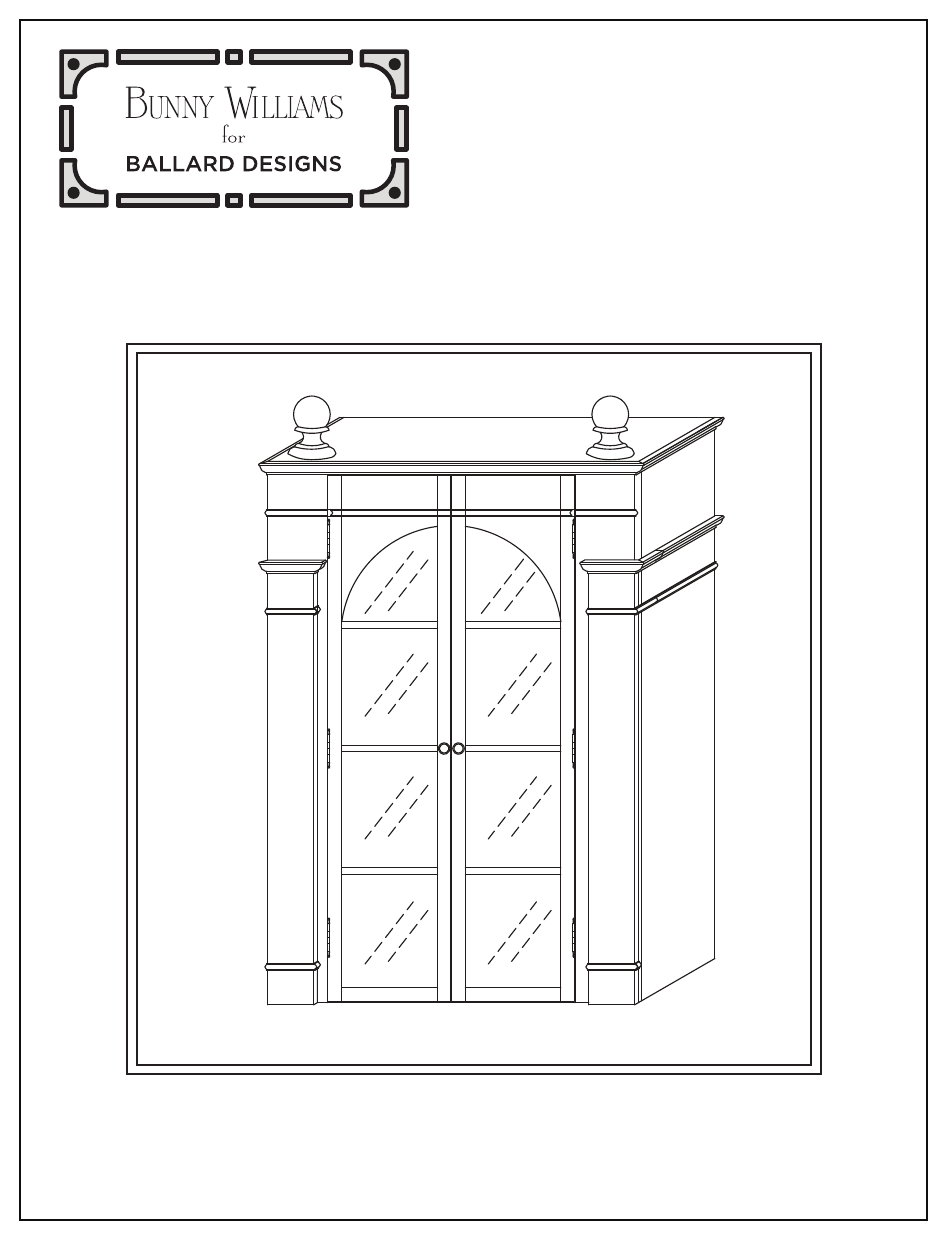

PRODUCT NAME: BW Entry Cabinet Center Hutch
ITEM NUMBER: MA232
DIMENSIONS OF ITEM ASSEMBLED: 65 1/4"H x 42"W x 19 1/4"D
PRODUCTS ARE NOT INTENDED
FOR COMMERCIAL USE.
UPDATE: 2/17/2017
Customer Service: 800-367-2810
Online: www.ballarddesigns.com
MADE IN CHINA
Page 1 of 7
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Ballard Designs BUNNY WILLIAMS MA232
Summary of Contents for Ballard Designs BUNNY WILLIAMS MA232
- Page 1 Customer Service: 800-367-2810 Online: www.ballarddesigns.com PRODUCT NAME: BW Entry Cabinet Center Hutch ITEM NUMBER: MA232 DIMENSIONS OF ITEM ASSEMBLED: 65 1/4”H x 42”W x 19 1/4”D PRODUCTS ARE NOT INTENDED MADE IN CHINA FOR COMMERCIAL USE. UPDATE: 2/17/2017 Page 1 of 7...
-
Page 2: Tools Needed
NOTE: Assemble the Hutch in desired location for use. Hardware Located Here (A-F) Shelves (G) Cylinder (H) TOOLS NEEDED: NOTE: When unpacking, lay the parts on -Requires a screwdriver. a padded surface such as the packaging provided. -Power drill suggested. Be sure to locate all hardware before throwing -Assembly requires 2 or more people. - Page 3 NOTE: Assemble the Hutch in desired location for use. STEP 1: Screw the Finials (H) into the top corners of the Hutch. STEP 2: Place the Shelf Supports (B) at the desired heights and lay the Shelves (G) on the Supports.
- Page 4 NOTE: Assemble the Hutch in desired location for use. STEP 3: Carefully place the Hutch onto the Console (MA231). (MA232) (MA231) STEP 4: Connect the Hutch to the Base by centering the Brackets (F) evenly over the Hutch and the top bar on the Base with two screws holes on each side (as shown). Secure into place using the Small Screws (E).
- Page 5 NOTE: Assemble the Hutch in desired location for use. Continue with an in same mann STEP 5: Center the Cabinet in front of two Studs and mark the Wall. Push the unit against the Wall. Vendor t Drawing il All parts of it Step 1 and numbered, At the end of in...
- Page 6 NOTE: Assemble the Hutch in desired location for use. additional steps as 1 and 2... STEP 7: Pull the Hutch away from the Wall and attach the L-Brackets (C) to the Studs using the Long Screw (A). If there are not Studs in the desired location, lightly tap in the Anchors (D) and attach the L-Brackets with the Long Screws.
- Page 7 NOTE: Assemble the Hutch in desired location for use. STEP 9: If joining the Hutch with a Left or Right Cabinet (MA229 / MA230), remove the side mouldings on the side(s) being joined to. STEP 10: Slide the Right & Left Cabinets (MA229 & MA230) next to the Hutch. Install the Right and Left Cabinet per the instructions provided with the units.
