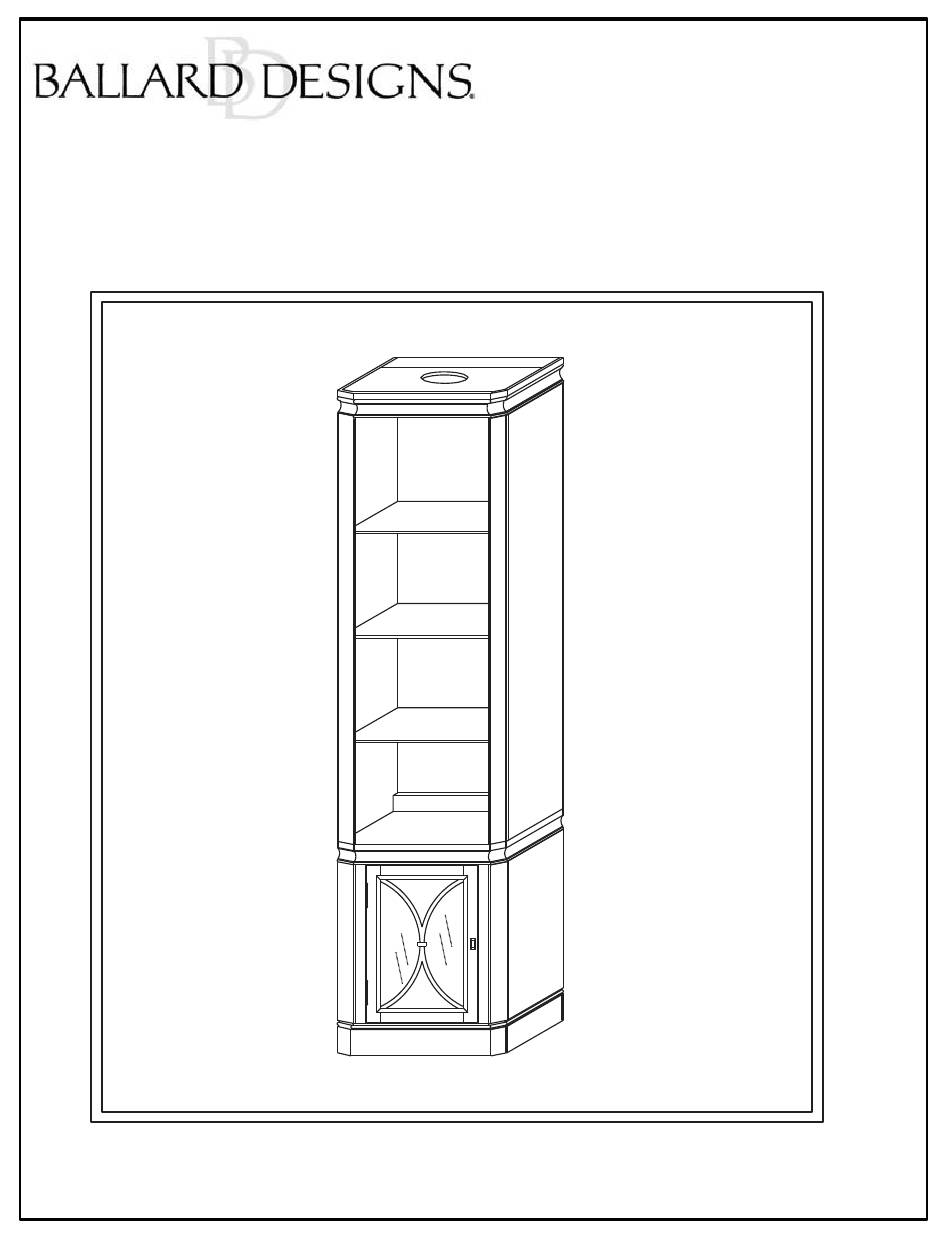

- Page 1 Customer Service: 800-367-2810 Online: www.ballarddesigns.com PRODUCT NAME: SINCLAIRE TOWER ITEM NUMBER:MQ104 DIMENSIONS OF ITEM ASSEMBLED: 81 1/2”H x 20 7/8”W X 16”D PRODUCTS ARE NOT INTENDED MADE IN CHINA FOR COMMERCIAL USE. UPDATE: 09/28/2018 Page 1 of 7...
-
Page 2: Tools Needed
NOTE: Assemble the Tower in desired location for use. Hardware Located Here (A-G) Shelves (H,I) TOOLS NEEDED: -Requires a screwdriver. -Power drill suggested. -Assembly requires 2 or more people. NOTE: When unpacking, lay the parts on a padded surface such as the packaging provided. Be sure to locate all hardware before throwing away any packaging. - Page 3 NOTE: Assemble the Tower in desired location for use. STEP 1: Place the Shelf Supports (A) at the desired Shelf heights and lay the Shelves (H) (I) on the Supports. STEP 2: If the Tower is uneven, adjust the levelers inside the bottom corners of the Bookcase using a flat head screwdriver.
- Page 4 NOTE: Assemble the Tower in desired location for use. STEPT 3: The door can be reversible by turning the door upside down and relocating the 2 hinges from the left to the right and the door magnet from the top right to the top left as illustrated. STEP 4: Attached the two by aligning the Connector Plates (E) with pre-drilled holes on the backs and screw in the Connector Screws (F).
- Page 5 NOTE: Assemble the Tower in desired location for use. STEP 5: Center the Tower in front of two Studs and mark the Wall. Push the Bookcase against the Wall. STEP 6: Slide the L-Bracket (D) over the top corner of the Bookcase Top in front of the previously marked Stud and mark the Wall at the top of the L-Bracket.
- Page 6 NOTE: Assemble the Tower in desired location for use. STEP 7: Pull the Bookcase away from the Wall and attach the L-Brackets (D) to the Studs using the Long Screws (B). STEP 8: Slide the Bookcase underneath the previously installed L-Brackets (D) and use 2 or more of the Small Screws (C) to attach the L-Brackets to the Bookcase.
- Page 7 NOTE: Save this page for future bulb replacement. HALOGEN BULB REPLACEMENT: Qty. Item needed Halogen JCD G8 120V 25W Replacement Bulb (A) NOT INCLUDED Unplug the unit from the wall. Remove the Lens Cover (B) from the Fixture Body (C) by turning it counter clockwise and pulling it away from the unit.
