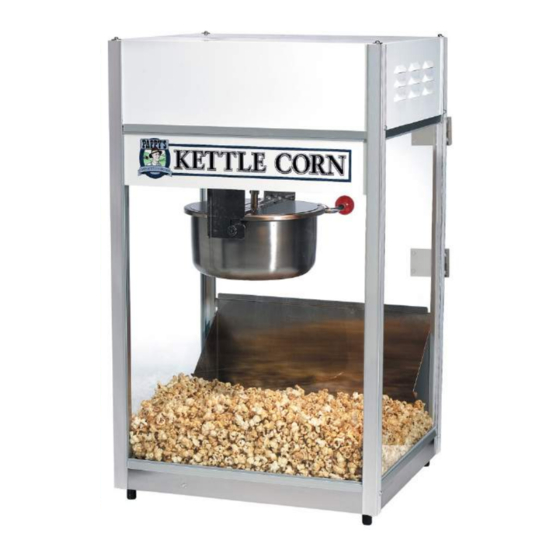

- Page 1 Instruction Manual Ultra Sixty Pappy’s Model No. 2656KC 10700 Medallion Drive, Cincinnati, Ohio 45241-4807 USA © 2015 Gold Medal Products Co. Part No. 110083...
-
Page 2: Safety Precautions
Read and understand operator’s manual and all other safety instructions before using this equipment. To order copies of the operator’s manual go to gmpopcorn.com or write to Gold Medal Products Co., 10700 Medallion Drive, Cincinnati, OH 45241 USA 1-(800)-543-0862 022_060215 gmpopcorn.com... - Page 3 Gold Medal’s Technical Service Department at 1-800-543-0862 for any questions about your machine operations, replacement parts, or any service questions. (Gold Medal Products Co. does not assume any liability for injury due to careless handling and/or reckless operation of this equipment.) gmpopcorn.com...
-
Page 4: Installation Instructions
Ultra Sixty Pappy’s Model No. 2656KC INSTALLATION INSTRUCTIONS Inspection of Shipment After unpacking, check thoroughly for any damage which may have occurred in transit. Claims should be filed immediately with the transportation company. The warranty does not cover damage that occurs in transit, or damage caused by abuse, or consequential damage due to the operation of this machine, since it is beyond our control (reference warranty in back of manual). - Page 5 Ultra Sixty Pappy’s Model No. 2656KC Setup This unit has been tested at the factory. 1. Remove all packaging and tape prior to operation. 2. Place the unit on a sturdy, level base. 3. The popper unit has 4 glide feet preinstalled at the factory (see image below). Install a Black Crutch Tip on each of the 4 glide feet.
-
Page 6: Electrical Requirements
Failure to wire properly will void the warranty and may result in damage to the machine. It is Gold Medal Products Co.’s recommendation that this machine be plugged directly into a wall outlet. The use of extension cords is not recommended due to safety concerns, and may cause sacrificed and/or reduced performance. -
Page 7: Controls And Their Functions
Ultra Sixty Pappy’s Model No. 2656KC OPERATING INSTRUCTIONS Controls and Their Functions KETTLE HEAT SWITCH Two position, ON/OFF lighted rocker switch - supplies power to the heating element in the kettle. The green switch light ON indicates there is power to the kettle heating element. KETTLE MOTOR SWITCH Two position, ON/OFF lighted rocker switch - supplies power to the kettle agitator motor. -
Page 8: Amount Of Popcorn And Oil
Ultra Sixty Pappy’s Model No. 2656KC Popping Corn This section describes instructions for popping Standard (salted) Popcorn and Pappy’s Kettle Corn. Amount of Popcorn and Oil Your new popper is equipped with a corn, salt, and oil measure. We recommend flavored and colored coconut oil. - Page 9 Ultra Sixty Pappy’s Model No. 2656KC Popping Pappy’s Kettle Corn (Timer included with Unit) Popcorn and Oil (see recommendations on previous page), Pappy’s Kettle Corn Mix (Item No. 2545CT, 1/2 gallon container), and Diamond Crystal Popcorn Salt (Item No. 2070CT, 12 oz. container) are needed to make Pappy’s Kettle Corn.
-
Page 10: Care And Cleaning
To avoid serious burns, DO NOT touch the kettle while it is hot! 028_020314 2. Every night, mix Gold Medal’s Heat’n Kleen solution (Item No. 2095), 2 tablespoons per gallon of water. It is not necessary to use the entire gallon at once; only use enough to fill the kettle 1/2 inch deep. - Page 11 DO NOT use oven cleaners or abrasive materials as they will damage parts of the machine. 5. Clean the glass panels with glass cleaner. Gold Medal Watchdog Glass Cleaner (Item No. 2588) is recommended. Ammonia cleaners will damage the plastic doors. Use only non-ammonia cleaners, such as Gold Medal Watchdog Glass Cleaner (Item No.
-
Page 12: Troubleshooting
Ultra Sixty Pappy’s Model No. 2656KC Troubleshooting Issue Possible Cause Solution Kettle Does Not Heat A. Power to Unit A. Make sure power cord is plugged in. B. Power to the Kettle B. Make sure the kettle lead-in cord is plugged in. C. - Page 13 Ultra Sixty Pappy’s Model No. 2656KC Issue Possible Cause Solution Kettle Agitator Shaft not C. Kettle Agitator Shaft C. If the kettle agitator shaft is not rotating, Rotating (continued) /Stir Blade DO NOT pop corn. Check the clearance between the kettle bottom and the stir blade; it should be 1/32”...
-
Page 14: Maintenance Instructions
Ultra Sixty Pappy’s Model No. 2656KC Maintenance Instructions DANGER Machine must be properly grounded to prevent electrical shock to personnel. Failure to do so could result in serious injury, or death. DO NOT immerse any part of this equipment in water. DO NOT use excessive water when cleaning. -
Page 15: Ordering Spare Parts
4. Please include your model number, serial number, and date of manufacture (located on the machine nameplate/data plate) with your order. 5. Address all parts orders to: Parts Department Gold Medal Products Co. 10700 Medallion Drive Cincinnati, Ohio 45241-4807 Or, place orders by phone or online:... -
Page 16: Replacing Broken Glass
Model No. 2656KC Replacing Broken Glass Broken glass panels can be easily replaced. Gold Medal Products Co. does not ship glass. It can be obtained from a local glass shop and always purchase tempered glass. 1. Remove all loose pieces of glass (Dome must be removed to replace glass). - Page 17 Ultra Sixty Pappy’s Model No. 2656KC 6 oz. Kettle Assembly – 49434KC – Parts Breakdown Complete Agitator Assembly (Includes Lids) * See Parts List note. 16, 18 26, 27 Complete Agitator Assembly (Includes Lids) Complete Kettle Bottom Assembly includes 30, 31 Kettle Shell and Kettle Lead Assembly Element/Heater View gmpopcorn.com...
- Page 18 Ultra Sixty Pappy’s Model No. 2656KC 6 oz. Kettle Assembly – 49434KC – Parts List Part No. Item Part Description 49434KC ACORN NUT 47702 8-32 X 1/2 PHIL PAN M/S 47141 6 OZ. KETTLE SHELL 49431 6 OZ. KETTLE LEAD ASSY 49328 DUMP HANDLE RH 49314...
- Page 19 Ultra Sixty Pappy’s Model No. 2656KC Cabinet Exterior – Front View 7, 8 For Glass Panels, see Replacing See Kettle Glass section. Assembly Section 9, 10 Part No. Item Part Description 2656KC FRONT GLASS DECAL 49158KC 8-32” X 5/8” TYPE 23 HX HD 49052 TOP PAN (Dome) 49587...
- Page 20 Safety Label Section. * CAUTION: If supply cord is damaged, it must 5, 6 be replaced by Gold Medal Products Co., its service agent, or similarly qualified persons in order to avoid a hazard. General image shown for parts reference.
- Page 21 Ultra Sixty Pappy’s Model No. 2656KC Door Hardware Kit 61380 – Individual Component Breakdown Complete Door Hardware Kit (P/N 61380) (contains all parts shown above) Part No. Item Part Description 61380 KNOB LID LIFT 47120 TEE BOLT 75267 8-32 X 5/16 SLOTTED HEX 49594 8-32 X 3/8 PH PAN W/SEMS 42227...
- Page 22 Ultra Sixty Pappy’s Model No. 2656KC Cabinet Interior – Hanger Assembly For Labels, see Safety Label Section. * See Parts List note. 9*, 10 Data Plate See Kettle Assembly section for Kettle parts breakdown. General image shown for parts reference. Part No.
- Page 23 Ultra Sixty Pappy’s Model No. 2656KC Cabinet Interior – Bottom View See Safety Label Section. General image shown for parts reference. Part No. Item Part Description 2656KC BOTTOM CORN PAN 49506 WIRE DUCT 49091 (Runs the entire length of the corner post) CORNER COVER –...
- Page 24 Ultra Sixty Pappy’s Model No. 2656KC Dome Interior – Electrical Components 2388 Image General image shown for parts reference. Part No. Item Part Description 2656KC SHORT LIGHT CONICAL 49480 LAMP HOLDER 47047 15 AMP TWIST LOCK KETTLE RECPT 49330 120 VOLT KETTLE DRIVE MOTOR 47038 gmpopcorn.com Page 24...
- Page 25 Ultra Sixty Pappy’s Model No. 2656KC Safety Labels Unit Labels Kettle Lead In Label Power Cord Labels Part No. Item Part Description 2656KC WARNING, MAX LAMP 75W 41452 LABEL UNPLUG TO CLEAN 76097 SERVICE LABEL 87935 WARNING, SURFACE CONTACT 87087 UNIVERSAL POPPER DECAL 41019 MAIN GROUND LABEL...
- Page 26 Ultra Sixty Pappy’s Model No. 2656KC Accessories Part No. Item Part Description 2656KC STAMPED ALUMINUM SCOOP 2071 MEASURE 6.5 cc 47678 MEASURE 6 oz. 49049 SALT SHAKER 63016 TIMER, LCD RESETABLE 63012 gmpopcorn.com Page 26...
-
Page 27: Wiring Diagram
Ultra Sixty Pappy’s Model No. 2656KC Wiring Diagram Model No. 2656KC gmpopcorn.com Page 27... - Page 28 © 2014 – The text, descriptions, graphics, layout, and other material in this publication are the exclusive property of Gold Medal Products Co. and shall not be used, copied, reproduced, or published in any fashion, including website display, without its express written consent.
