Part No. 17027
Revised: February 2010

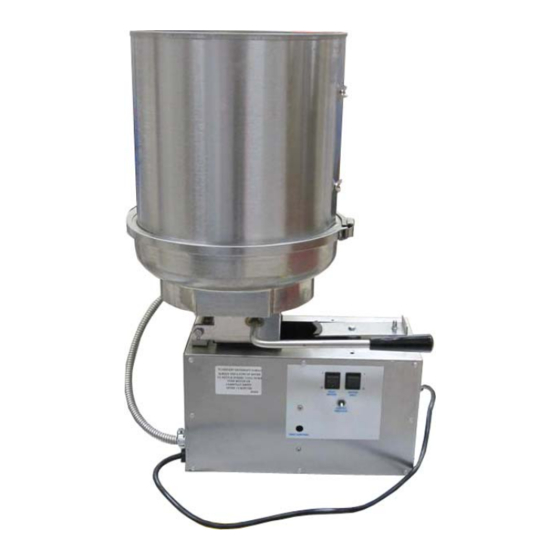

KARMEL BABY CORN TREAT
Instruction Manual
Model #2626

Advertisement

Table of Contents
loading

Related Manuals for Gold Medal 2626

Summary of Contents for Gold Medal 2626

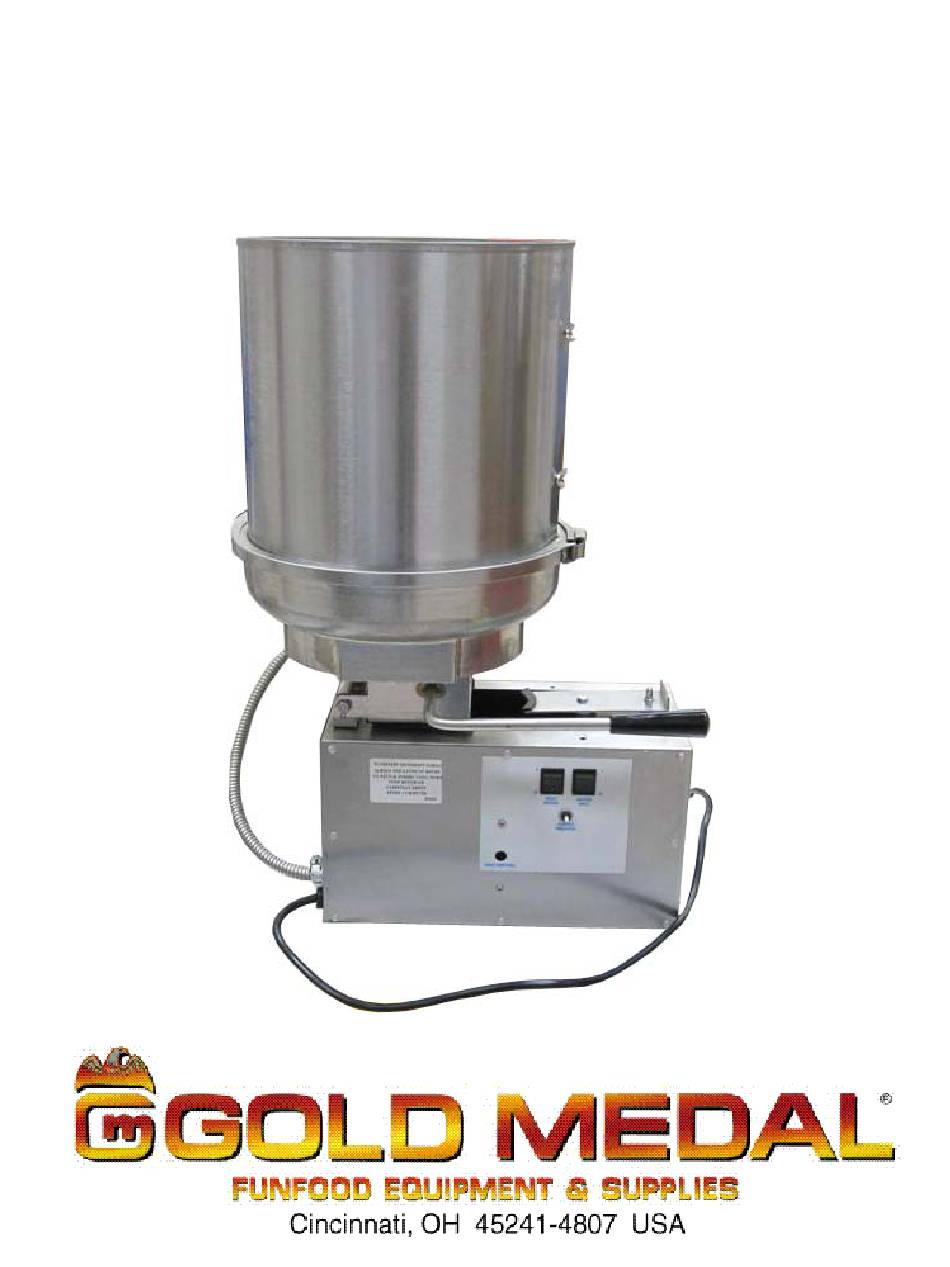

  • Page 1 Part No. 17027 Revised: February 2010 KARMEL BABY CORN TREAT Instruction Manual Model #2626...

  • Page 2: Safety Precautions

    SAFETY PRECAUTIONS...

  • Page 3: Installation Instructions

    Remove all packing material and tape before starting operation. Electrical Requirements: Voltage for the 2626 is 120 volt, 60 cycle single phase. The machine will draw a maximum of 15amps. Your electrician must finish sufficient current for the proper operation of your machine. We recommend this machine be on a dedicated and protected circuit line.

  • Page 4: Controls And Their Function

    If the buzzer sounds before the temperature reaches 310F turn the potentiometer clockwise until the buzzer stops and continue to turn an additional 1/8 of turn. Note: The sound of the buzzer always signals temperature cut-off. MODEL# 2626...

  • Page 5: Care And Cleaning

    1. Turn the motor / heat switch "ON". 2. Add 4 ounces of water, one package of Gold Medal 2157 2.5 gal caramel complete mix. 3. Turn the motor switch "ON" and mix for approximately one minute. Turn the motor switch "OFF". (With the heat switch "ON"...
  • Page 6 (See diagram below.) 7. After the hub seal assembly has been properly installed, place the new mix paddle on the bottom and one existing paddle on the top of the agitator shaft. 8. Replace the wing bolts and finger tighten. MODEL# 2626...
  • Page 7 KARMEL BABY MODEL# 2626...

  • Page 8: Ordering Spare Parts

    3. Please include your model name, serial number, and date of manufacture (located on the machine nameplate) with your order. 4. Address all parts orders to: Parts Department Gold Medal Products Co. 10700 Medallion Drive Cincinnati, Ohio 45241-4807 (800) 543-0862...
  • Page 9 Kettle Casting p/n 16766 Internal Kettle Parts (Not Shown) Mix Paddles Drive Shaft 1720W Element – p/n 67889 p/n 16737 p/n 16732 525F Thermostat – p/n 76702 Kettle Drive Shaft O-ring – p/n 16747 Lid Assembly p/n 16810 MODEL# 2626...
  • Page 10 (See Zoomed View Below) Bottom Plate p/n 16760 Dump Handle p/n 41139 Handle p/n 16985 Motor Mount p/n 16897 Lead In Cord Motor p/n 87085 p/n 16723 Motor Stop p/n 16926 Drum Seal Retaining Ring p/n 16764 p/n 16762 MODEL# 2626...
  • Page 11 16725 Pivot Pin Flexible Conduit Rubber Bumper p/n 16731 p/n 82107-19 p/n 87247 Conduit Bushing (2) p/n 82135NM Lighted Rocker Switch p/n 48616 Face Plate p/n 16925 Hole Plug p/n 45395 15 Amp Circuit Breaker p/n 47364 MODEL# 2626...
  • Page 12 Signal Buzzer p/n 55219 p/n 42006 p/n 48688 p/n 46118 Temperature 240K Resistor (Red/Yellow/Yellow) Control p/n 48689 p/n 55057 750K Resistor (Violet/Green/Yellow) p/n 48690 Potentiometer Lighted Rocker Switch 15 Amp Circuit p/n 46326 p/n 48616 Breaker p/n 47364 MODEL# 2626...

  • Page 13: Electrical Schematic

    KARMEL BABY ELECTRICAL SCHEMATIC MODEL# 2626...

  • Page 14: Warranty

    WARRANTY WE WARRANT to the original purchaser the Gold Medal equipment sold by us to be free from defects in material or workmanship under normal use and service. Our obligation under this warranty shall be limited to the repair or replacement of any...
