Advantech ASMB-816 Series Startup Manual

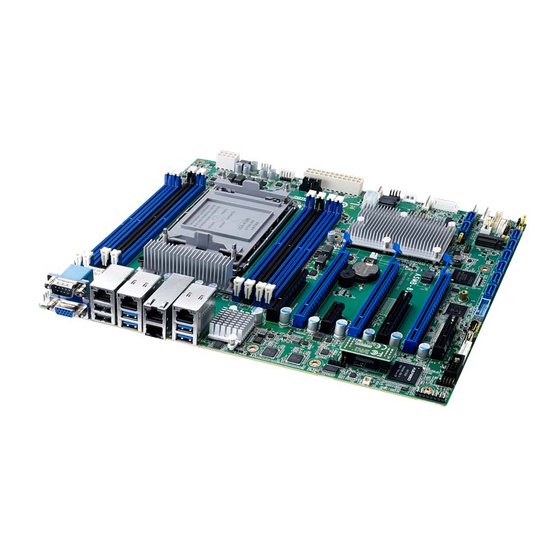

ASMB-816 Series LGA 4189 Intel 3rd Generation Xeon®
Scalable ATX Server Board with 8 DDR4, 3 PCIe x16, 8
SATA3, 6 USB3.0, Dual 10GbE, IPMI
Startup Manual
Packing List
Before you begin installing your card, please make sure that
the following items have been shipped:
• 1 x ASMB-816 Startup Manual
• 2 x SATA data cables
• 2 x SATA power cables
• 2 x CPU power cables (8P)
• 1 x CPU carrier
• 1 x Front panel convert cable
• 1 x I/O port bracket
• 1 x M.2 screw
If any of these items are missing or damaged, please
contact your distributor or sales representative immediately.
Note 1: Acrobat Reader is required to view any PDF file.
Acrobat Reader can be downloaded at:
https://www.adobe.com/downloads.html
(Acrobat is a trademark of Adobe)
For more information on this and other Advantech
products, please visit our website at:
http://www.advantech.com
For technical support and service, please visit our
support website at:
http://support.advantech.com
Register your products on our website and get 2
months extra warranty for Free at:
http://www.register.advantech.com
This manual is for the ASMB-816 series Rev. A1
Part No. 2041081600
Printed in China
www.coastipc.com | 866-412-6278 | info@coastipc.com
1st Edition
November 2020
Specifications
Standard M/B Functions
• CPU: LGA4189 Intel 3rd Generation Xeon® Scalable
processors
• BIOS: AMI 256 Mbit SPI BIOS
• Chipset: Intel® C621A PCH
• System Memory: 8* DDR4-2666/2933/3200
Registered ECC DIMM, Max. Capacity 512 GB
Note 2: Due to the inherent limitations of older PC archi-
tectures, the system may not fully detect 512 GB
RAM when 512 GB RAM is installed.
• SATA Interface: 8 x SATA3 6Gb/s ports Intel Rapid
Storage (for Windows only) (SATA0-SATA7 supports
software RAID 0, 1, 10 & 5)
• Serial Ports: One onboard header, only supports RS-232
• Keyboard/Mouse Header (KBMS2): Supports the stan-
dard PS/2 keyboard and mouse via PS/2 cable.
• Watchdog Timer: 255 level timer intervals
• USB Port: Supports up to 6 x USB 3.0 ports (2 ports from
onboard 20-pin header) and 7 x USB 2.0 ports (1*Type-A,
4 ports from onboard 10-pin header)
VGA Interface
• Chipset: ASPEED AST2500/2510
• Display Memory: 64 MB
• Resolution: Supports VGA up to resolution 1920 x 1200
@ 60 Hz refresh rate
Ethernet Interface
• Interface: 10/100/1000 Mbps & 10 GbE Base-T
• Controller: LAN1/2: Intel I210; LAN3/4: Intel X550
Mechanical and Environment
• Dimensions (L x W): 244 x 304 mm (9.6" x 12")
• Power Supply Voltage: +3.3 V, +5 V, ±12 V, +5 Vs
• Power Consumption (mainboard only, excluding IO
device): Max. load: +3.3 V @ 13.9754 A, +5 V@ 4.565 A,
+12 V @ 9.406 A,+5 Vsb @ 0.224 A, -12 V@ 0.082 A,
12V_8P @ 25.14 A
• Operating Temperature: 0 ~ 60 °C (depending on CPU)
• Weight: 1.05 kg (weight of board)
ASMB-816 Startup Manual 1
