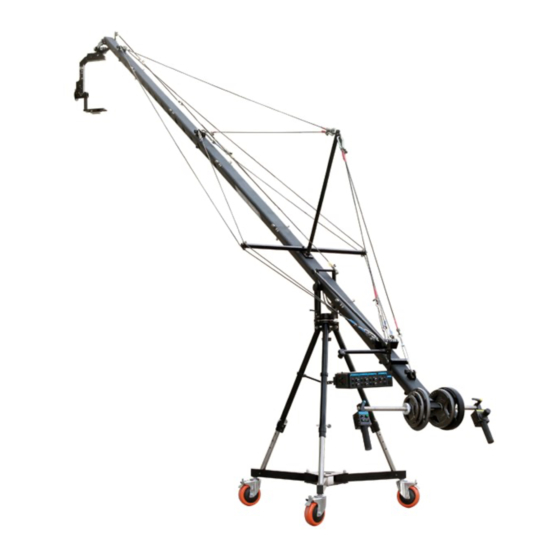

23.9ft fraser (pf-4tr) jib crane with pt-1000 pan tilt head, fr-ts stand and fr-d dolly
Hide thumbs

Advertisement

Quick Links

Download this manual
23.9ft Fraser (PF-4TR) Jib crane with
PT-1000 Pan tilt head, FR-TS Stand and
FR-D Dolly
(PF-4TR-PP)
INSTRUCTION MANUAL
All rights reserved.
No part of this document may be reproduced, stored in a retrieval system, or transmitted by any form or by any
means, electronic, mechanical, photocopying, recording, or otherwise, except as may be expressly permitted by
the applicable copyright statutes or in writing by the Publisher.

Advertisement

loading
Need help?

Need help?

Do you have a question about the PF-4TR and is the answer not in the manual?

Questions and answers

Related Manuals for PROAIM PF-4TR

Summary of Contents for PROAIM PF-4TR

  • Page 1 23.9ft Fraser (PF-4TR) Jib crane with PT-1000 Pan tilt head, FR-TS Stand and FR-D Dolly (PF-4TR-PP) INSTRUCTION MANUAL All rights reserved. No part of this document may be reproduced, stored in a retrieval system, or transmitted by any form or by any means, electronic, mechanical, photocopying, recording, or otherwise, except as may be expressly permitted by the applicable copyright statutes or in writing by the Publisher.
  • Page 2 Proaim 23.9ft Fraser (PF-4TR) Jib crane with PT-1000 Pan tilt head, FR-TS Stand and FR-D Dolly INTRODUCTION PROAIM presents a fully professional 23.9ft Fraser film production package, a perfect filming solution to increase your production value. Fraser, a DV & Eng jib system has numerous features to support &...
  • Page 3 Proaim 23.9ft Fraser (PF-4TR) Jib crane with PT-1000 Pan tilt head, FR-TS Stand and FR-D Dolly 1x motor holding rod Focus & iris Head control 4X Knob Camera control Pan Tilt Head handle handle Main Controlling box Pan tilt wires 2 X joystick wires 1.(blue ring)
  • Page 4 Proaim 23.9ft Fraser (PF-4TR) Jib crane with PT-1000 Pan tilt head, FR-TS Stand and FR-D Dolly ASSEMBLING THE DOLLY  Take out the bolt from the center of dolly and spread it on floor. Then put the bolt back through the center of dolly again.
  • Page 5 Proaim 23.9ft Fraser (PF-4TR) Jib crane with PT-1000 Pan tilt head, FR-TS Stand and FR-D Dolly  Now mount the jib Stand onto the dolly.  Place the section 2 with hub mounting on stand and tighten it with the hub locking knob to secure it properly.
  • Page 6 Proaim 23.9ft Fraser (PF-4TR) Jib crane with PT-1000 Pan tilt head, FR-TS Stand and FR-D Dolly  Attach first section with second section and tighten the allen bolts to secure it. NOTE : Attach the rest of the sections in the same way starting from the other end of section 2.
  • Page 7 Proaim 23.9ft Fraser (PF-4TR) Jib crane with PT-1000 Pan tilt head, FR-TS Stand and FR-D Dolly ATTACHING THE STABILITY CABLES Cable code (red)  Now attach hook to the cable guide rod on jib Section-2. Then attach 4.7ft red cable into the hook &...
  • Page 8 Proaim 23.9ft Fraser (PF-4TR) Jib crane with PT-1000 Pan tilt head, FR-TS Stand and FR-D Dolly Cable code (blue)  Attach 10.10ft blue cable to the clamp on jib Section-4 & attach it further to the clamp on Jib Section-1 & repeat the same steps for other side.
  • Page 9 Proaim 23.9ft Fraser (PF-4TR) Jib crane with PT-1000 Pan tilt head, FR-TS Stand and FR-D Dolly ATTACHING THE PAN TILT HEAD  Attach the pan-tilt head to the Head plate of crane and and secure it with the help of knobs.
  • Page 10 Proaim 23.9ft Fraser (PF-4TR) Jib crane with PT-1000 Pan tilt head, FR-TS Stand and FR-D Dolly  Now Insert the gear into 15mm rod and attach the gear to the iris & lens focusing & iris ring of your camera. Then plug the iris & focus cable from camera to circuit board.
  • Page 11 Proaim 23.9ft Fraser (PF-4TR) Jib crane with PT-1000 Pan tilt head, FR-TS Stand and FR-D Dolly  Also plug the 1 meter BNC wire from your camera to head. BALANCING THE CAMERA  In order to balance the camera on head, loosen the pan and tilt motor knobs to slide it back the small gear from the bigger gear.
  • Page 12 Proaim 23.9ft Fraser (PF-4TR) Jib crane with PT-1000 Pan tilt head, FR-TS Stand and FR-D Dolly  Connect the cable from Hub Assembly to the mounting bracket.  Attach the main controlling box to the bottom bracket . Note: You have 2 option to use pan tilt head with this controller box. 1. V-Mount battery 2.main AC cable.
  • Page 13 Proaim 23.9ft Fraser (PF-4TR) Jib crane with PT-1000 Pan tilt head, FR-TS Stand and FR-D Dolly  Attach the 8meter 7 pin XLR Cable on the top of the head from one end and to the controller system from main cable.
  • Page 14 Proaim 23.9ft Fraser (PF-4TR) Jib crane with PT-1000 Pan tilt head, FR-TS Stand and FR-D Dolly  Attach the 8meter BNC long cable on the top of the Head from one end and to the lcd monitor from another end.
  • Page 15 Proaim 23.9ft Fraser (PF-4TR) Jib crane with PT-1000 Pan tilt head, FR-TS Stand and FR-D Dolly  Plug the cables from controller box to the head controll. Handle with 7pin XLR wire having yellow ring.  Similarly, plug the cables from controller box to the camera controll handle with 7 pin XLR wire connector having blue ring.

  • Page 16: Warranty

    Proaim 23.9ft Fraser (PF-4TR) Jib crane with PT-1000 Pan tilt head, FR-TS Stand and FR-D Dolly WARRANTY We offer a one year warranty for our products from the date of purchase. We will repair or replace your product, free of charge, in the event of a defect in materials or craftsmanship obtained during normal use or handling based on the user manual.
