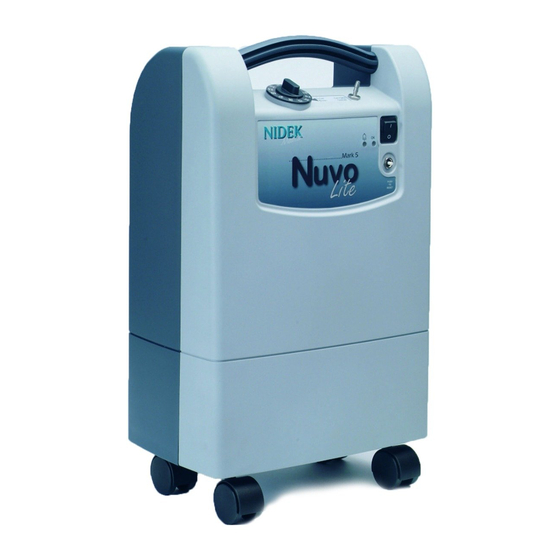

USER'S GUIDE
Mark 5 Nuvo
LITE
OXYGEN CONCENTRATOR
[Original language is English]
Federal Law (US) restricts this device to
sale by, or on the order of, a licensed
physician. This oxygen concentrator
should be used only under the supervi-
sion of a licensed physician.
GLOSSARY OF SYMBOLS ....................................... 1
GENERAL SAFETY GUIDELINES ......................... 2
DESCRIPTION .................................................... 2
I.
Front panel (Fig. I. 1) ......................................... 3
Rear panel (Fig. I. 2) ............................................ 3
II.
STARTING-UP / INSTALLATION ................. 3
II.1. Use in direct oxygen therapy ................................. 3
III. CLEANING-MAINTENANCE .......................... 4
III.1. Cleaning ................................................................. 4
III.2. Everyday disinfection ............................................... 4
III.3. Maintenance ........................................................... 4
: ON (power switched on)
: Off (power switched off)
: Type B device
: Class II protection
: Do not expose to open flames
2010-8401CE Rev B
(OCSI)
CONTENTS
IV.
IV.1. Accessories and spare parts .................................. 4
IV.3. Operating principles .............................................. 4
IV.4. Alarms - Safety devices ......................................... 5
IV.5. Indicator light function ........................................... 5
IV.6. Technical characteristics ........................................ 5
IV.7. Standards ................................................................ 6
IV.8. Method for disposing of waste ............................... 6
IV.9. Method for disposing of device .............................. 6
IV.10. Troubleshooting ..................................................... 7

GLOSSARY OF SYMBOLS

Nov 2009
0413: Complies with the 93/42/ EEC directive
certified by the approved organization no 0413.
Danger: Do not smoke when using oxygen or
when near this device.
USEFUL INFORMATION ............................... 4
: Do not use oil or grease
: Technical information
: Consult the accompanying documents
: Keep in the vertical position
: Fragile - handle with care
: Oxygen concentration warning light
8
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Mark 5 Nuvo LITE and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Nidek Medical Mark 5 Nuvo LITE

Summary of Contents for Nidek Medical Mark 5 Nuvo LITE

  • Page 1: Table Of Contents

    USER'S GUIDE Mark 5 Nuvo (OCSI) LITE OXYGEN CONCENTRATOR [Original language is English] 0413: Complies with the 93/42/ EEC directive Federal Law (US) restricts this device to certified by the approved organization no 0413. sale by, or on the order of, a licensed physician.
